CODELOCKS KitLock KL1100 Manual

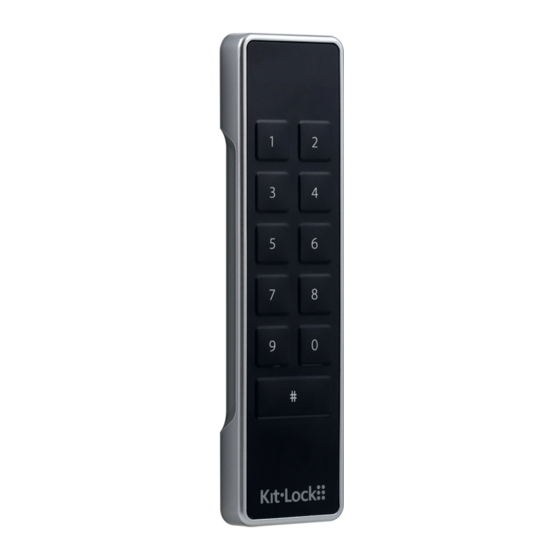

KL1100
SLEEK AND SUBTLE
KL1100 is the latest addition to the KitLock by Codelocks range of locker locks.
LOCK MANAGEMENT
Program individual or multiple locks remotely using the Codelocks Cloud Portal. Alternatively program
locally using our plug-in programmer.
STYLISH DESIGN
The slimline front plate and integrated handle adds a touch of style giving any locker or environment a
contemporary feel.
EASY OPERATION
Behind the stylish design sits an electronic latch containing the technology and power for maximum
functionality.
FUNCTIONS
Private Function
This is the default function and is already pre-
programmed in new locks. This function is used
where the same card client will be repeatedly
used, e.g. an employee/pupil with a personal
locker.
TECHNICAL SPECIFICATION
Management
Low Battery Warning
Power
Battery Override
Door Thickness
Memory
Latch
Card Client Types
Installation
Material
Local
Using our plug-in programmer, set-up and configure the KL1100 -
register up to 50 Card Clients per lock
Remote
Using the Codelocks Cloud Portal program individual or multiple locks
using an initialisation card Card Clients can be managed and assigned
to multiple locks and lock groups (max. 20 per client).
Red LED will flash on opening to indicate low battery
Powered by 4 x AA batteries (supplied)
Connect to 5V micro USB power source for temporary power
Ready to fit doors up to 25mm (1")
Non-volatile memory will be retained
Electronic latch
Master, Technician and User - supports MIFARE® Classic 1k
Vertical; Horizontal (additional components required)
Mixed plastic and alloy construction
Public Function
Suitable for short term use by different users. This
mode can support up to 50 card clients. Suitable
for use in short term multi-occupancy applications
such as leisure centres, spas and hotels.
