CL5500 - Installation Instructions

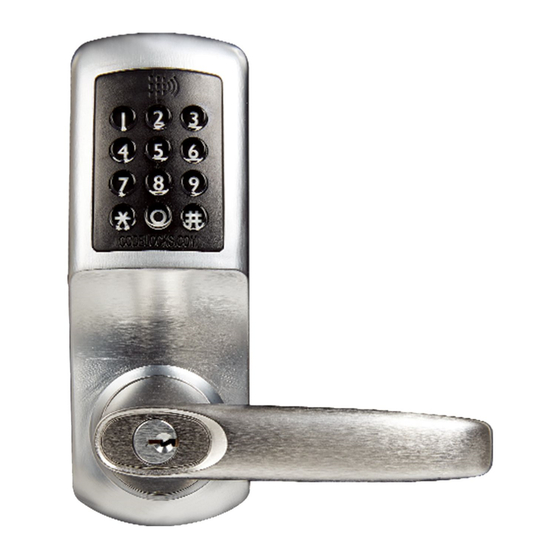

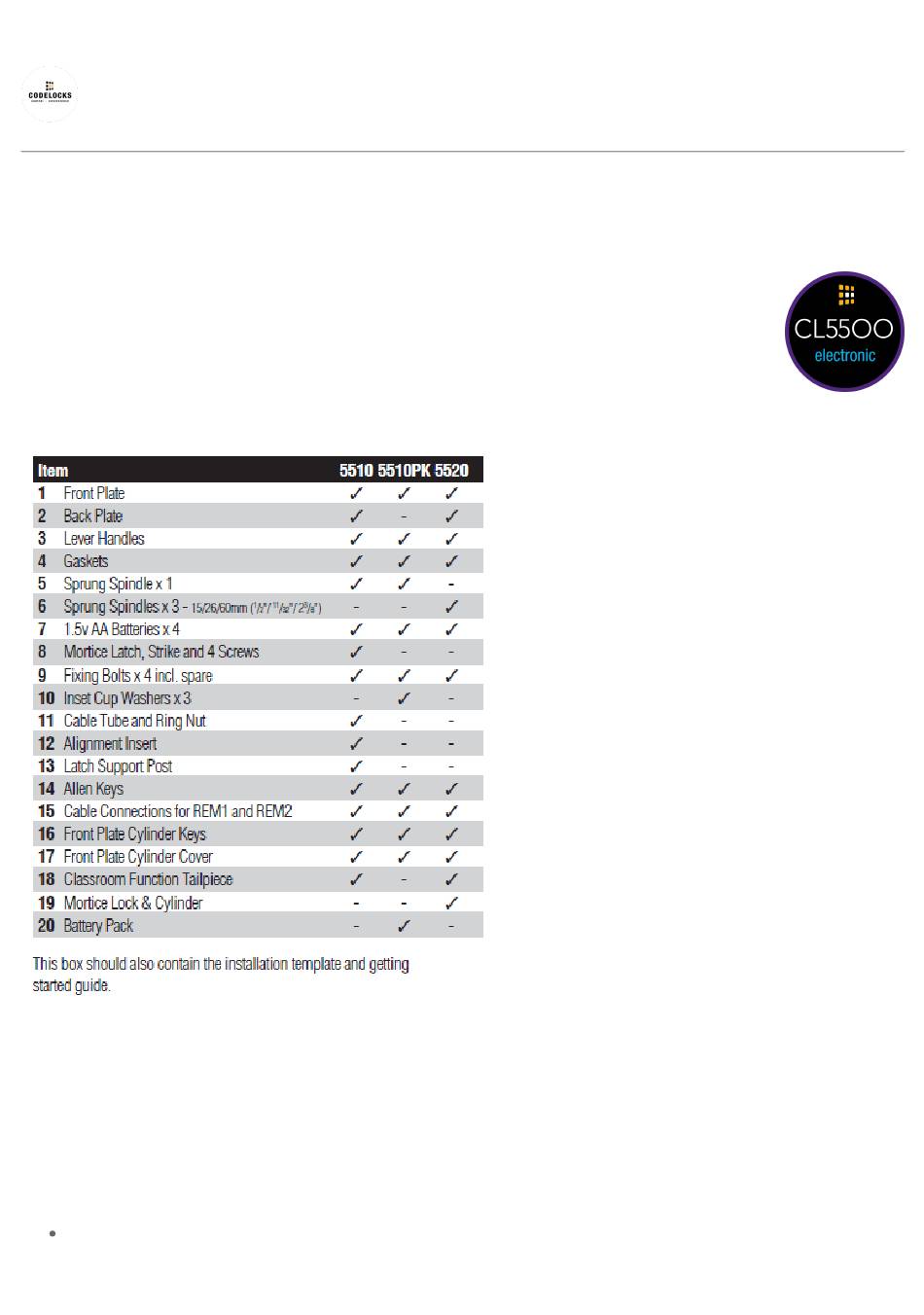

Box Contents

Check the contents of the box are correct according to the model

Tools Required

This box should also contain the installation template and getting started guide.

Power Drill

https://codelocks.zohodesk.eu/portal/en/kb/articles/cl5500-installation-instructions

Need help?

Do you have a question about the CL5500 and is the answer not in the manual?

Questions and answers

Summary of Contents for CODELOCKS CL5500

Page 1 Codelocks Support CL5500 - Installation Instructions Box Contents Check the contents of the box are correct according to the model Tools Required This box should also contain the installation template and getting started guide. Power Drill https://codelocks.zohodesk.eu/portal/en/kb/articles/cl5500-installation-instructions...
Page 2 Drill bits CL5510 10mm (3/8”) & 25mm (1”) Drill bits CL5520 10mm (3/8”), 12mm (15/32”), 16mm (5/32”) & 20mm (25/32”) Hammer / mallet Philips screwdriver Chisel 25mm (1") Stanley knife Adhesive tape, pencil, bradawl, tape measure Pliers and hacksaw for cutting bolts https://codelocks.zohodesk.eu/portal/en/kb/articles/cl5500-installation-instructions...
Page 3 Note: When the Master Code is entered 3 times consecutively without performing a programming function, a penalty time of 10 seconds is activated. Disconnect the cables. Special Fixing Note Remote Release Option https://codelocks.zohodesk.eu/portal/en/kb/articles/cl5500-installation-instructions...
Page 4: Other Options
CL5510 Latch Function Outside handle turns freely without operating the latchbolt. When the code is entered the keypad will flash blue and the handle will retract the latchbolt. The latch automatically locks the door when closed. The key will open https://codelocks.zohodesk.eu/portal/en/kb/articles/cl5500-installation-instructions...
Page 5 When deadbolt is thrown it denies access by code. The anti-panic feature allows the inside handle to simultaneously retract the latchbolt and the deadbolt preventing people being accidentally locked in. CL5510PK Front plates only for use with panic hardware. I t ll ti f CL5510 L k https://codelocks.zohodesk.eu/portal/en/kb/articles/cl5500-installation-instructions...
Page 6 4. Put the latch into the hole and, holding it square to the door edge, draw around the faceplate. Starting with the top and bottom cuts, chisel a rebate to allow the latch face to flush with the door edge. (See diagram B). https://codelocks.zohodesk.eu/portal/en/kb/articles/cl5500-installation-instructions...
Page 7 Place the fixing plate over the cable tube and spindle. Screw the ring nut onto the cable tube until finger tight Fit the alignment insert over the spindle Screw the fixing bolts through to the front plate (See https://codelocks.zohodesk.eu/portal/en/kb/articles/cl5500-installation-instructions...
Page 8 Position the strike plate on the door frame so that the aperture lines up with the flat of the latchbolt, and NOT the plunger Mark the positions of the fixing screws and draw around the aperture of the strike plate Chisel out the https://codelocks.zohodesk.eu/portal/en/kb/articles/cl5500-installation-instructions...
Page 9 Installation of CL5510PK 1.The position of the Codelocks CL5510 front unit on the door is determined by the position of the panic device. 2.Mark the position of the spindle hole for the panic device on both sides of the door.
Page 10 All door locks should be installed with a degree of precision to ensure that all components are horizontally and vertically accurate in relation to each other, and in relation to the door. Do not install the lock where it will involve cutting into a joint between the door stile and a mid-rail. https://codelocks.zohodesk.eu/portal/en/kb/articles/cl5500-installation-instructions...
Page 11 https://codelocks.zohodesk.eu/portal/en/kb/articles/cl5500-installation-instructions...
Page 12 14. Fit the back plate cover of the CL5520. Fit the batteries and the battery cover. Fit the cylinder cover and the handles. The inside handle should retract the latchbolt, and the latchbolt should automatically project again when the handle is released. With the key turned 90° clockwise the outside handle should retract the latchbolt. https://codelocks.zohodesk.eu/portal/en/kb/articles/cl5500-installation-instructions...
Page 13 Ensure that the latchbolt enters its aperture easily and holds the door without too much play. When satisfied, draw around the final position of the strike plate, remove it and cut a rebate to allow it to fit flush to the surface. Re-fix the strike with both screws. https://codelocks.zohodesk.eu/portal/en/kb/articles/cl5500-installation-instructions...
