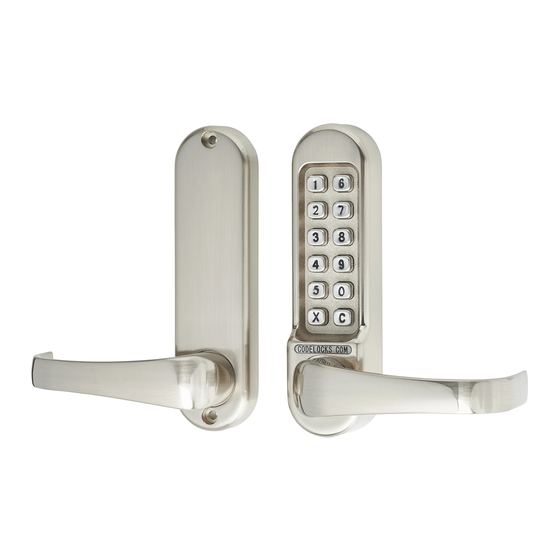

Dimensions
35 — 60mm
1
6
2
7
3
8
4
9
178mm
5
0
C
Model 500/505
For use with existing lock
1
6
2
7
3
8
4
9
5
0
C
60mm
Model 510/515
With tubular latchbolt
1
6
2
7
3
8
4
9
5
0
C
235mm
55mm
84mm
Model 520/525
With full 'Panic Function'
mortice lock & cylinder
CODELOCKS LTD
Tel 01635 268029 Fax 01635 268031
sales@codelocks.co.uk www.codelocks.co.uk
Helpline, service & spares
FREEPHONE 0800 393405
Features
Code Free Entry Mode by turning
the slotted button 90 degrees
after entering the code
(models 505, 515, 525 only)
Inside handle always retracts the
latch for exit
Weather resistant
Vandal resistant, with stainless
steel buttons, and clutch
protection if the outside handle
is forced
Reversible handles
Easy code change as often
as required
Fits doors between 35mm and
60mm thick without modification
Features - Model 525 only
Split follower lock enables inside
handle to retract latch and
deadbolt simultaneously,
satisfying 'means of escape'
requirements for exit at all
times. Prevents accidental lock-ins
Deadbolt thrown by key to lock
out code users after work hours
Key will retract the latchbolt
giving access for admin functions
Double Euro-profile cylinder with
3 keys. Any Euro-profile cylinder
72mm
may be used
On multiple door installations
consideration should be given to
having all cylinders keyed alike,
with restricted key issue, for
ease of management
P
USHbutton 500 series
INSTALLATION
INSTRUCTIONS
Advertisement
Related Manuals for CODELOCKS Pushbutton 500 Series
Summary of Contents for CODELOCKS Pushbutton 500 Series

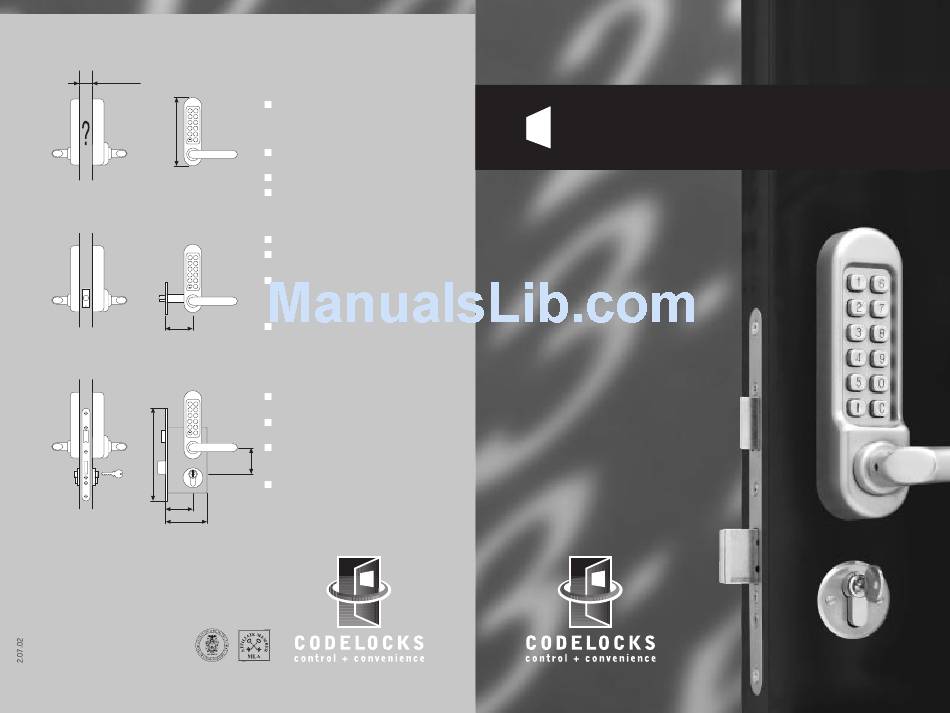

- Page 1 55mm with restricted key issue, for 84mm Model 520/525 ease of management With full ‘Panic Function’ mortice lock & cylinder CODELOCKS LTD Tel 01635 268029 Fax 01635 268031 sales@codelocks.co.uk www.codelocks.co.uk Helpline, service & spares FREEPHONE 0800 393405...
-
