KL11OO
Installation Instructions + Template

INSTALLATION

Please read carefully:
Before installing the lock, read the programming and operating instructions suited to your KL1100 model. Please note, the KL1100
RFID requires a Master Card to be assigned on powering up. Instructions can be found at:
Your KitLock is supplied with the powered latch in the unlocked position. If you are installing without loading the batteries, the lock
will remain unlocked.
The lock is supplied ready to fit doors up to 25mm (1") thick. It is designed for new installations. If replacing an existing key cam lock,
the hole may be left exposed by the positioning of the powered latch. A cover plate can be used to hide the hole. Ensure the plate
does not increase the door thickness to over 25mm (1").

Box Contents

•
Front Plate x 1
•
Latch x 1
•
Foam Gasket x 1
•
Fixing Screws x 2
•
Latch Keep/Strike x 1

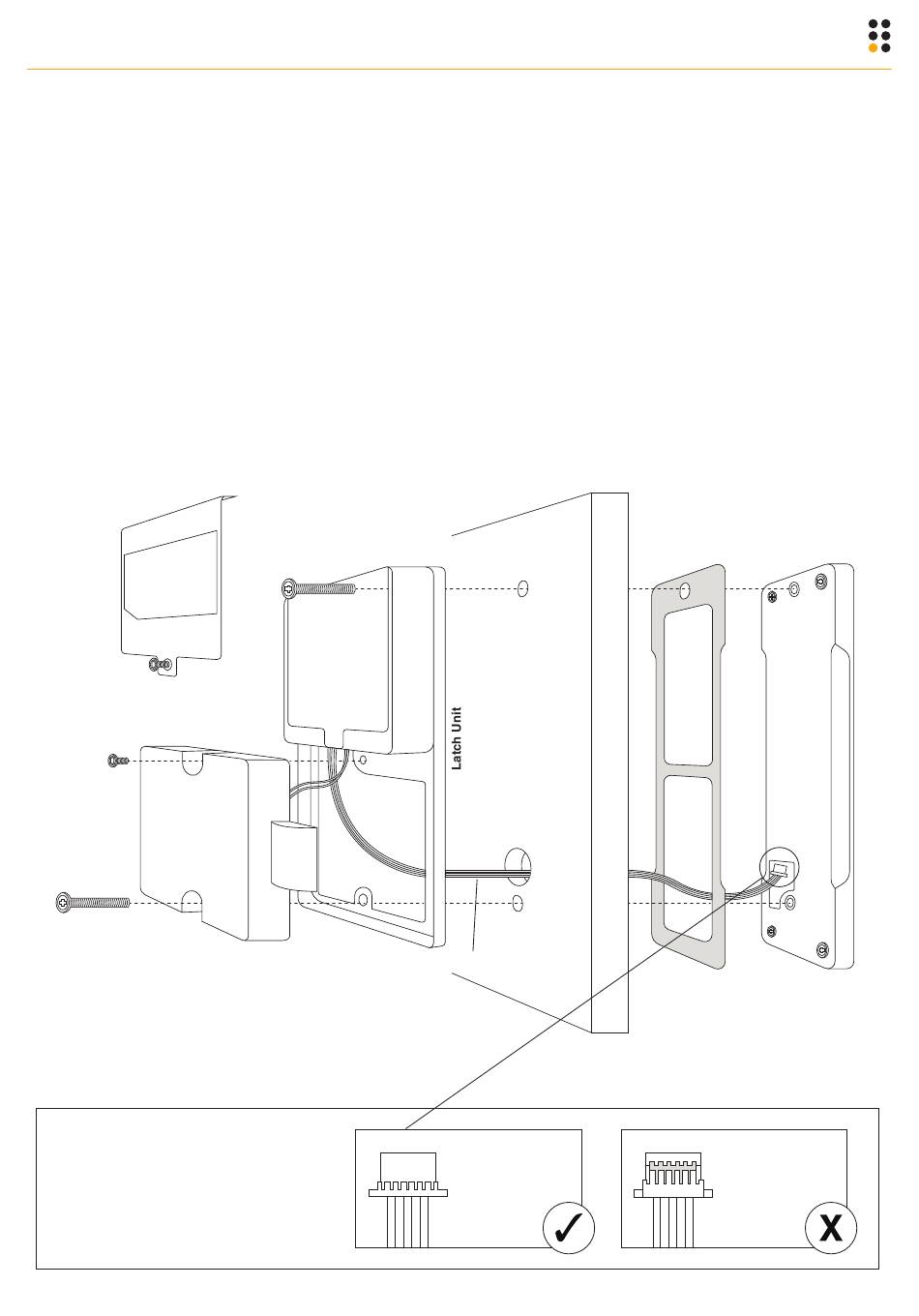

Installation Diagram

Battery Cover
B
A
Lower Fixing Bolt
Special Note
Care must be taken when connecting
the cable to the lock. Ensure that
cable is inserted correctly, with
connector pins facing away from you,
to avoid damage.
Upper Fixing Bolt
© 2022 Codelocks Ltd. All rights reserved.
www.codelockssupport.com
Door
Power Cable
Cable connector
pins not visible.
Gasket
KitLock
Cable connector
pins facing
towards you.
