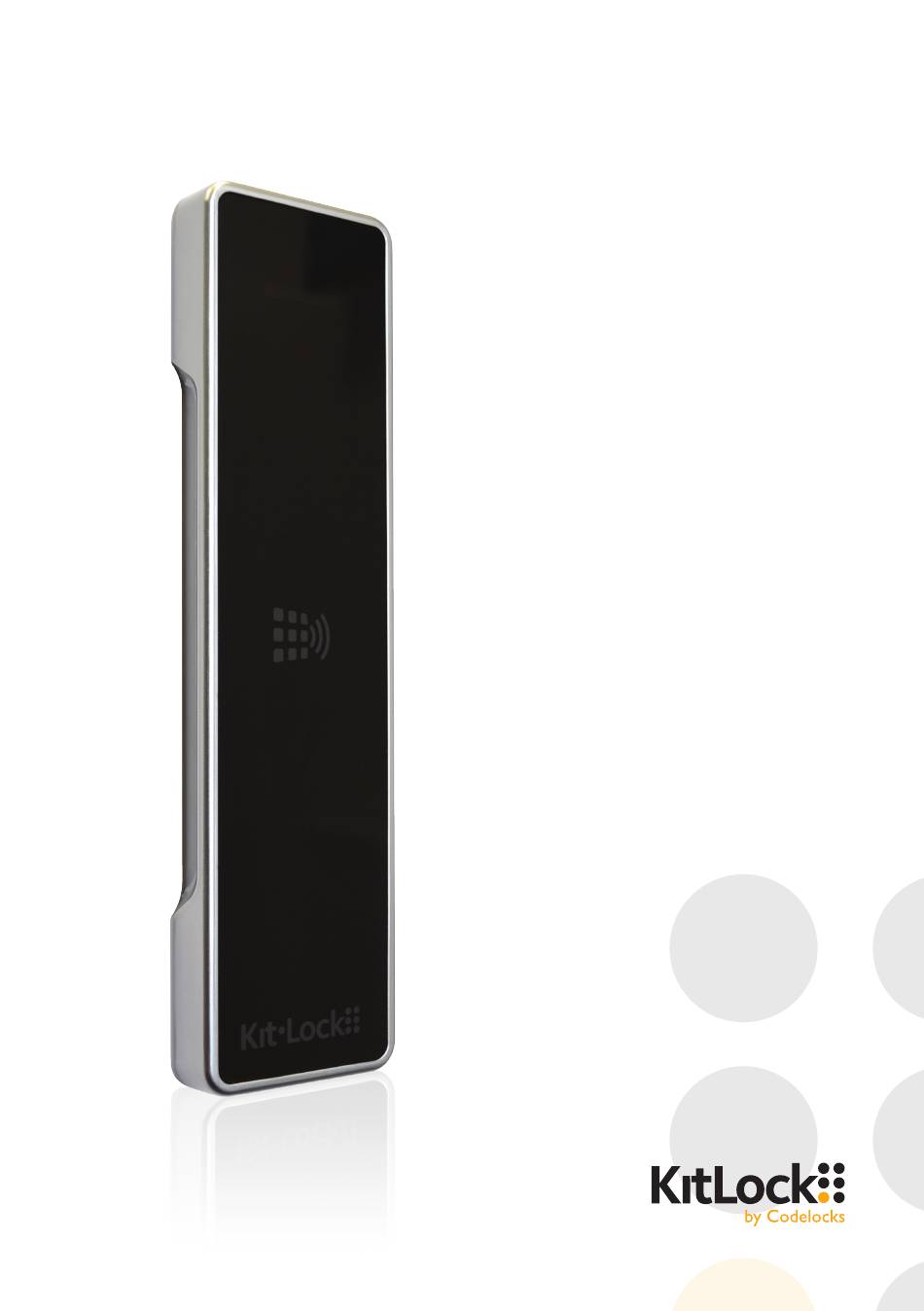

  • Page 1 KL11OO RFID Getting Started Guide...
  • Page 2 ABOUT KL11OO The KL1100 can operate in Standalone Mode or in Remote Card Authorisation (RCA) Mode. RCA Mode gives the ability to remotely set-up and allocate Card Clients to locks or lock groups with our offline or cloud based software. This Getting Started Guide contains the instructions to enable you to quickly program your lock in Standalone Mode.

  • Page 3: Standalone Mode

    Card Clients Master Card • Opens the lock (deletes current User Card in Public Function) • All programming including Technician and User Card registration Technician Card • Opens the lock (retains current User Card in Public Function) User Card • Opens the lock •...
  • Page 4 FIRST USE (INITIALISATION) Upon powering up the lock, it will be in an unlocked state and the LED will flash Purple. For Private Use: 1. Present a card to the lock. This is now the Master Card. Keep this safe. 2. The Blue LED will flash twice to confirm acceptance. 3. Wait 5 seconds for the Blue LEDs to stop flashing and for the latch to engage, the lock will now be in Private Function. For Public Use: 1. Present a card to the lock. This is now the Master Card. Keep this safe. 2. The Blue LED will flash twice to confirm acceptance.
  • Page 5 2. Present the Master Card to the lock. 3. On the Programmer enter either: a) Public Function: # •• •• •• b) Private Function: # •• •• •• 4. To exit programming mode, unplug the Programmer. The Red LED will flash once within 5 seconds to confirm. USING THE LOCK - PUBLIC FUNCTION The lock will remain open until the next user touches a compatible card to the front of the lock.
  • Page 6 Locked LED Indication When in a locked state, the Red LED will flash every 5 seconds by default. This can be disabled to improve battery life. 1. Plug the Programmer into the lock. 2. Present the Master Card to the lock. 3. Press: a) Disable: # •• •• •• b) Enable: # •• •• •• 4. To exit programming mode, unplug the Programmer. The Red LED will flash once within 5 seconds to confirm. Public Pairing Public Pairing is an automatic setting that prevents a User Card that has been used to lock one lock from being able to be used to lock additional locks.
  • Page 7 Disable Maximum Locked Period 1. Plug the Programmer into the lock. 2. Present the Master Card to the lock. 3. Press: # •• •• •• 4. To exit programming mode, unplug the Programmer. The Red LED will flash once within 5 seconds to confirm. Auto-Unlock at a Set Time Note: The time and date must be set first to use this function. See page 8 for instructions. 1. Plug the Programmer into the lock. 2.
  • Page 8 3. Repeat step 2 to continue adding/removing User Cards. A maximum of 50 User Cards can be added at any one time. 4. Wait 5 seconds for the Blue LEDs to stop flashing. 5. To exit programming mode, unplug the Programmer. The Red LED will flash once within 5 seconds to confirm. Note: While adding User Cards, if the Master Card is presented to the lock it will cancel the program and the User Cards added so far will not be saved.

  • Page 9: Time Based Features

    and 30 seconds. 1. Plug the Programmer into the lock. 2. Present the Master Card to the lock. 3. Press: # •• •• Length of Time (Seconds) •• •• •• •• Example: # Result: The lock will wait 14 seconds after unlocking before re-lock. 4. To exit programming mode, unplug the Programmer. The Red LED will flash once within 5 seconds to confirm.

  • Page 10: Factory Reset

    Disable Time, Date and Time Based Features 1. Plug the Programmer into the lock. 2. Present the Master Card to the lock. 3. Press: # •• •• 0000000000 •• 4. To exit programming mode, unplug the Programmer. The Red LED will flash once within 5 seconds to confirm. OVERRIDE CODE This 4 digit code can be used to unlock in the event that the Master Card is not available. The default Override Code is: # # 2244.

  • Page 11: Troubleshooting

    5. The motor will engage and the LED will flash Purple to indicate the lock has reverted to factory settings and is waiting for initialisation. Via Programmer 1. Plug the Programmer into the lock. 2. Present the Master Card to the lock. 3. Press: # •• •• •• 4. The motor will engage and the LED will flash Purple to indicate the lock has reverted to factory settings and is waiting for initialisation. TROUBLESHOOTING Low Battery When the battery power is low the Red LED will flash 3 times before the Blue LED flashes...
  • Page 12 Fax: +61 2 9882 6030 sales@codelocks.com.au www.codelocks.com.au Helpline, service & spares Toll free: 1800 052 131 CODELOCKS SUPPORT Scan this QR code to access all KL1100 literature and templates online at codelockssupport.com GSG_KL1100_v2:0720 © 2020 Codelocks Ltd. All rights reserved.
