CODELOCKS KitLock KL1100 Installation Instructions

KL11OO
Installation Instructions + Template
INSTALLATION
Please read carefully:
Before installing the lock, familiarise yourself with the operation instructions suited to your KL1100 model, instructions can be found
at: www.codelockssupport.com
Your KitLock is supplied with the powered latch in the unlocked position. If you are installing without loading the batteries, the lock
will remain unlocked.
The lock is supplied ready to fit doors up to 25mm (1") thick. It is designed for new installations. If replacing an existing key cam lock,
the hole may be left exposed by the positioning of the powered latch. A cover plate can be used to hide the hole. Ensure the plate
does not increase the door thickness to over 25mm (1").
Box Contents
Front Plate x 1
•
Latch x 1
•
Foam Gasket x 1
•
Fixing Screws x 2
•
Latch Keep/Strike x 1
•

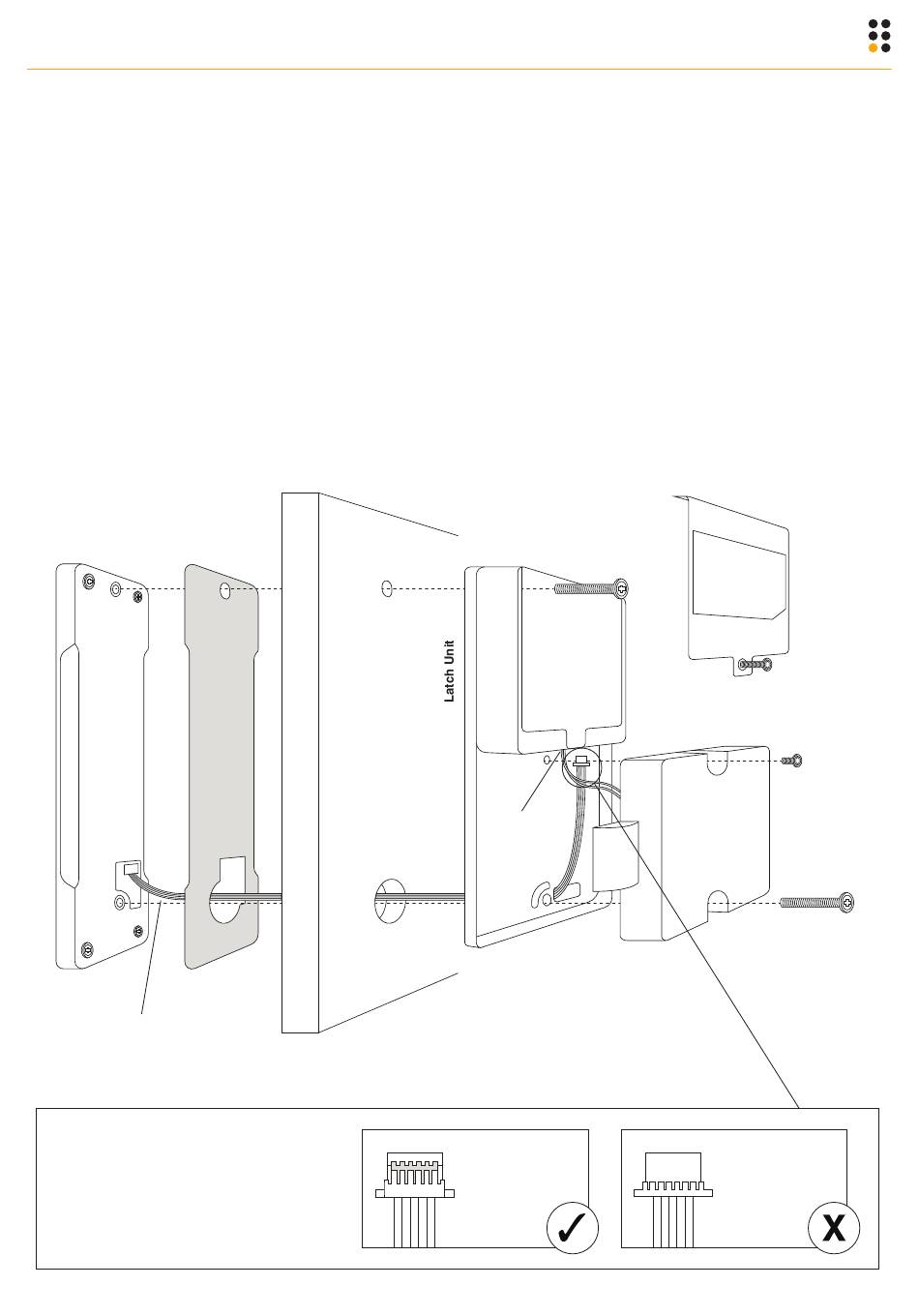

Installation Diagram
KitLock Gasket
Control Cable
Special Note
Care must be taken when connecting
the control and power cables. Ensure
that cables are inserted correctly, with
connector pins facing towards you, to
avoid damage.
Door
© 2020 Codelocks Ltd. All rights reserved.
Upper Fixing Bolt
Latch
Power Cable
Cable connector
pins facing
towards you.
Latch Version 2
As of 24/09/2020
Battery Cover
B
A
Lower Fixing Bolt
Cable connector
pins not visible.
