Step 9
S elect the cam which suits your door and frame
and attach it to the square shaft at the end of
the spindle.
Step 10 N ow check the operation of the lock using the
factory User Code 00 99.
Step 11 I f the lock is functioning correctly, CHANGE
THE DEFAULT MASTER CODE 55 44 33 22 and
DEFAULT USER CODE 00 99 and program the
lock using the programming and operating
instructions enclosed.
B) New installation
Step 1
P lace template on door and mark upper 6mm (
hole and lower 16mm (
I MPORTANT NOTE: Before drilling fixing holes, please
ensure that the position of the cabinet lock when fitted will
allow enough clearance for selected cam to work.
Step 2
Drill both fixing holes.
Step 3
Continue installation from step 4 to 11, above.
tp2CLInstallInstructionsRIGHTH.i1-2 1-2
/
")
1
4
/
") hole.
5
8
CODELOCKS LTD UK
Tel: +44 (0) 1635 239645
Fax: +44 (0) 1635 239644
sales@codelocks.co.uk
Helpline, service & spares
FREEPHONE 0800 393 405
CODELOCKS CHINA
Tel: +86 757 8660 1981-3
Fax: +86 757 8660 1980
CODELOCKS US
Tel: +1 714 979 2900
Fax: +1 714 979 2902
sales@codelocks.us
Help: 1.877.CODELOCK
www.codelocks.com

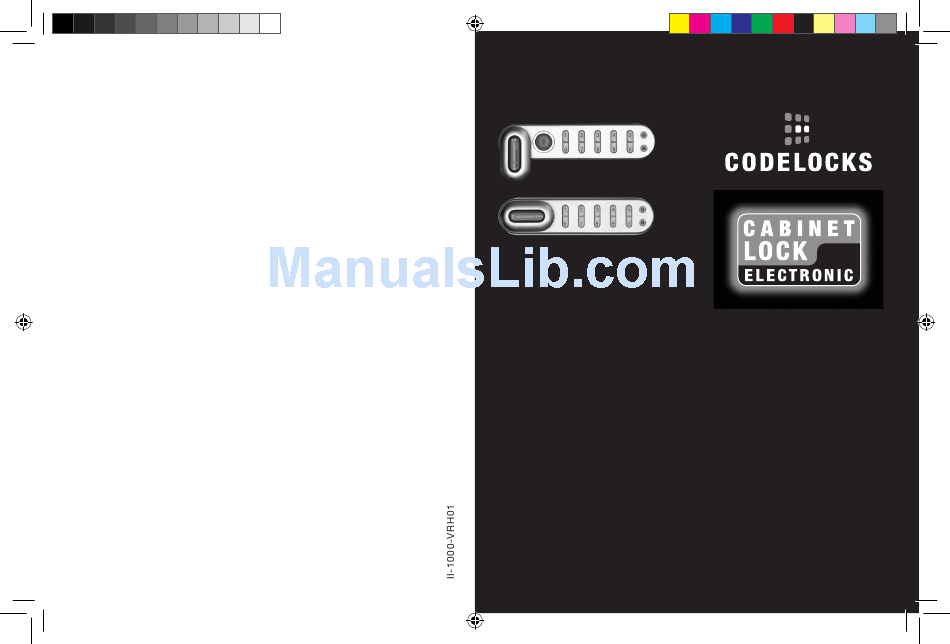

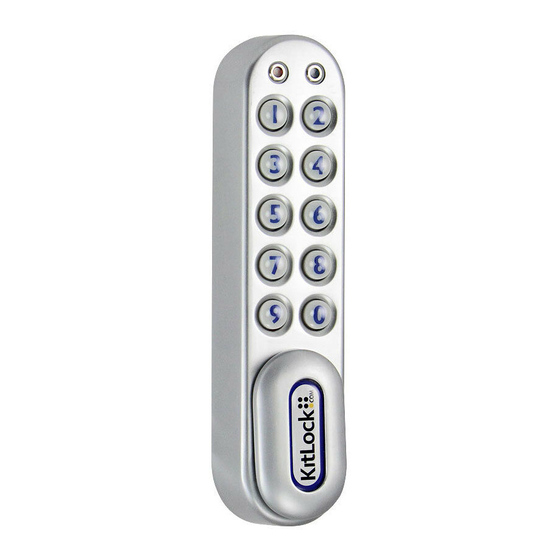

CL1000
Right Hand
Horizontal Lock
Installation
Instructions
18/04/2008 01:42:07
