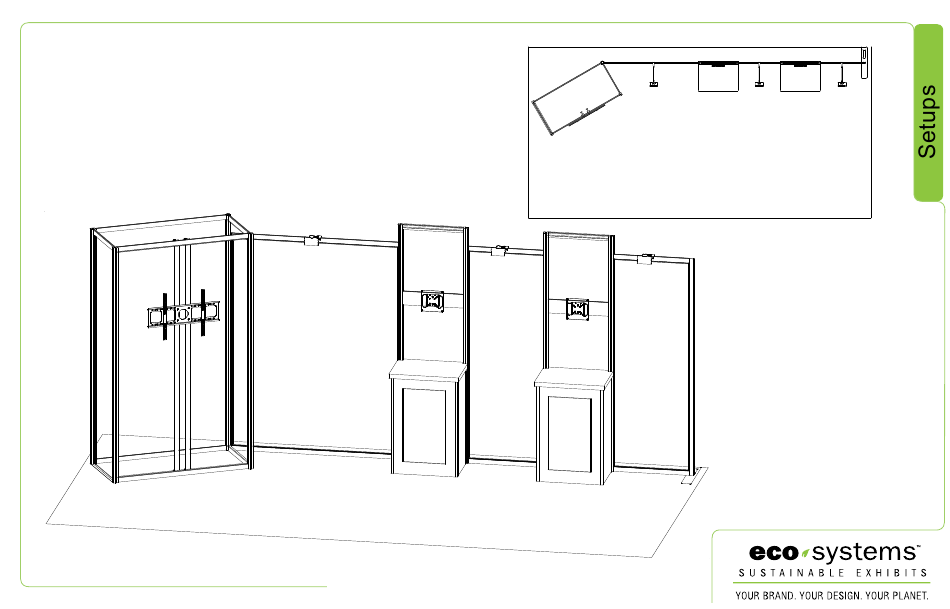

- Page 1 Order #XXXXX - ECO-2059 Sustainable Exhibit - 10’x20’ Configuration 10’ 20’ Plan View 866.463.2611 • www.ecosystemsdisplays.com...
- Page 2 General Setup Instructions •The setup instructions are created specifically for your configuration. •Setup instructions are laid out sequentially in levels, including exploded views and a logical series of steps for assembly. We encourage you to study the instructions before attempting to assemble your exhibit. Cleaning and Packing •Use non-abrasive cleaners when cleaning extrusions or ECO Glass inserts.
- Page 3 ECO Panel Install Place ECO panel together with a vertical offset, slide down to lock connector in place. Panel Corner Connectors are installed just like ECO panels. Remove by off-setting top lock clips horizontally followed by separating vertically. SEG Graphic Install Graphic is installed corners first.
- Page 4 Item Qty. Description Steps: 96”h S44 Vertical Extrusion w/ Door Hinge 1) Attach lower horizontals [5,7,8] & door threshold 96”h S44 Vertical Extrusion w/ Door Stop & attached TSP3 between verticals [1,2,3,4]. 96”h S44 Vertical Extrusion w/ attached TSP3 2) Connect upper horizontals [5A,6,7A,8A] between 96”h RSG520 Vertical Extrusion w/ attached TSP3 &...
- Page 5 Steps: Item Qty. Description 1) Attach Base Plate to vertical [14] using bolt. 96”h S44 Vertical Extrusion w/ attached TSP3 & LT Connector 2) Connect lower horizontals [16,18] between 96”h S44 Vertical Extrusion w/ attached TSP3 & LT Connector verticals [10,11,12,13,14]. 96”h S44 Vertical Extrusion w/ attached TSP3 &...
- Page 6 Item Qty. Description Steps: 16”w x 40”h Panel 1) Connect panels & connectors in numerical order. 40”h Connector 2) Affix shelf supports to inside of assembled counters 24.326”w x 40”h Panel w/ Door using Velcro. 40”h Connector 3) Set Counter Top onto assembled pedestals. 16”w x 40”h Panel 4) Install lights as shown.
