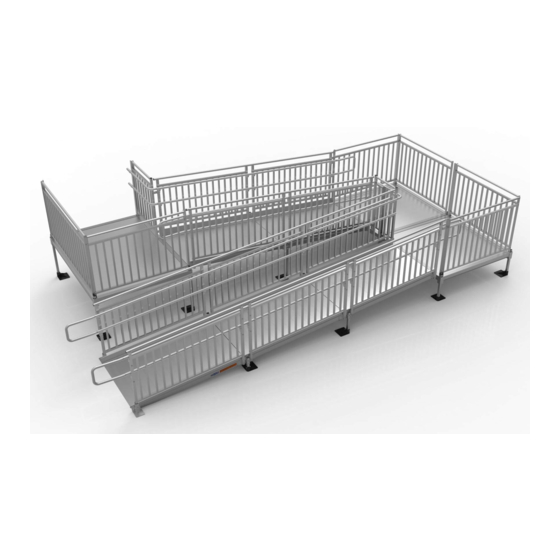

PATHWAY® HD Code Compliant Modular Access System
Installation Supplement for PATHWAY® HD Steps
Use this Supplement alongside the PATHWAY® HD Code Compliant Modular Access System Installation Manual
3-YEAR WARRANTY. Please register at www.ezaccess.com/warranty-satisfaction.
© EZ-ACCESS®, a division of Homecare Products, Inc. All rights reserved.
All text and images contained in this document are proprietary and may not be shared, modified, distributed,
reproduced, or reused without the express written permission of EZ-ACCESS.
Manufactured in the USA
18543 02-28-2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PATHWAY HD Code Compliant Modular Access System and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EZ-ACCESS PATHWAY HD Code Compliant Modular Access System

Summary of Contents for EZ-ACCESS PATHWAY HD Code Compliant Modular Access System

  • Page 1 Use this Supplement alongside the PATHWAY® HD Code Compliant Modular Access System Installation Manual 3-YEAR WARRANTY. Please register at www.ezaccess.com/warranty-satisfaction. © EZ-ACCESS®, a division of Homecare Products, Inc. All rights reserved. All text and images contained in this document are proprietary and may not be shared, modified, distributed, reproduced, or reused without the express written permission of EZ-ACCESS.
  • Page 2 If any part of the system appears damaged, loose, or missing, DO NOT USE until repaired by an EZ ACCESS approved technician. Do not tamper with, attempt to repair, or modify any portion of the system. Only EZ-ACCESS approved technicians may provide service.
  • Page 3 WARNINGS, CONT’D. This system is made from aluminum. Aluminum is electrically conductive. Do not lay power cords on or across electrically conductive materials, such as this system. Do not use system near exposed wiring or hang lights or extension cords from system. Use caution when using the system.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS SECTION 1: GETTING STARTED ........................... 5-6 SECTION 2: TWO-LINE RAIL CLOSURE ......................... 7-8 SECTION 3: PICKETED GUARD CLOSURE ......................9-10 SECTION 4: STEP HANDRAILS .......................... 11-14 SECTION 5: 60” RISE STEP GUARD REINFORCEMENT ..................15-16 SECTION 6: RETURNING HANDRAIL AT CLOSURE ................... 17-18 SECTION 7: UPPER LOOP ..........................

  • Page 5: Section 1: Getting Started

    Leveling feet come with the system. When adjusting the step, be mindful of applicable building codes and ADA guidelines. EZ-ACCESS will not be responsible for any costs or liabilities resulting from use of the leveling feet. The ground must be leveled at the proper height with respect to the platform.
  • Page 6 1.3. Set the upper lip of the riser onto the platform in the desired location (FIG. 1.2). Do not lean, walk, or otherwise bear weight on the step until installation is complete. 1.4. Install two step guards into the corner pockets of the step until the lower post rests on the ground or aligns with the bottom of the lower corner pockets (FIG.

  • Page 7: Section 2: Two-Line Rail Closure

    TWO-LINE RAIL CLOSURE 2.1. Install a platform angle post in the open corner pocket where the two-line rail will be attached (FIG. 2.1). Secure in place as described in the ‘HANDRAILS’ section of the PATHWAY HD Code Compliant Modular Access System Installation Manual. 2.2.
  • Page 8 Attach 1-1/2” square closure post to the top rail and midrail using a 5/16”-18 x 2-1/4” hex bolt and 2.4. 5/16” flat washer. Do not tighten fully at this time (FIG. 2.2). 2.5. Attach the upper closure bracket to the 1-1/2” square closure post using a 5/16”-18 x 2-1/4” hex bolt, 5/16”-18 locknut, and 5/16”...

  • Page 9: Section 3: Picketed Guard Closure

    PICKETED GUARD CLOSURE 3.1. Install a platform angle post in the open corner pocket where the picketed guard closure will be attached (FIG. 3.1). 3.1.1. Secure in place as described in the ‘HANDRAILS’ section of the PATHWAY HD Code Compliant Modular Access System Installation Manual. 3.2.
  • Page 10 Attach two closure brackets to the upper step guard post using 5/16”-18 x 2-1/4” hex bolts, 3.6. 5/16”-18 locknuts, and 5/16” flat washers (FIG. 3.3). 3.7. Install a 1-1/2” square tube plug in the top of the 1-1/2” square closure post. Use a rubber mallet or similar tool to fully seat as needed (FIG.

  • Page 11: Section 4: Step Handrails

    STEP HANDRAILS 4.1. This section discusses the various loops and handrail components that are available for the step. FIG. 4.1a Lower Loop Left Hand FIG. 4.1b Lower Loop Right Hand FIG. 4.1c Extended Lower Loop Left Hand Extended lower loops are intended for use in localities where code requires the lower loop to extend 12”...
  • Page 12 Attach lower loops to lower step guard posts and 1-1/2” square pickets using 5/16”-18 x 2-1/4” 4.2. button head socket cap screws, 5/16”-18 locknuts, and 5/16” flat washers oriented as shown. Do not tighten fully at this time (FIG. 4.2). Attach (or clamp securely in the correct location) the top transition bends to the upper 1/2”...
  • Page 13 Drill two 1/8” pilot holes: 4.6. 4.6.1. One on the underside of the handrail. 4.6.2. One on the underside of the top transition bend at 3/4” from the non-swaged ends, through one wall of the handrail or top transition bend and the swaged ends where they overlap (FIG.
  • Page 14 4.12. Attach center handrail brackets to center 1-1/2” square pickets using 5/16”-18 x 2-1/4” button head socket cap screws, 5/16”-18 locknuts, and 5/16” flat washers oriented as shown (FIG. 4.6). Tighten securely. 4.13. Attach center handrail bracket to the step handrail using a 1/4” x 1” long self-drilling, self-tapping pan head Phillips screw (FIG.

  • Page 15: Section 5: 60" Rise Step Guard Reinforcement

    60” RISE STEP GUARD REINFORCEMENT 5.1. The 60” step includes two 1-1/2” square step guard reinforcement posts (“reinforcement posts”) and the required hardware to reinforce the guards at the center 1-1/2” square pickets. Install the center handrail brackets and the reinforcement posts to the center 1-1/2” square pickets 5.2.
  • Page 16 Attach reinforcement post to riser side rail using 5/16”-18 x 4” button head socket cap screws, 5.4. 5/16”-18 locknuts, and 5/16” flat washers oriented as shown with one washer placed under the screw head, one used as a spacer between the reinforcement post and the riser side rail, and one washer under the locknut (FIG.

  • Page 17: Section 6: Returning Handrail At Closure

    RETURNING HANDRAIL AT CLOSURE 6.1. Align the lower hole in the handrail bracket with the hole in the handrail bracket standoff. Hold (clamp if needed) the assembly on the side of the platform angle post, then trim the short leg of the 1-1/2”...
  • Page 18 Drill a 1/8” pilot hole on the underside of the short leg of the 90° bend at 3/4” from the end, 6.7. through one wall of both the 90° bend and the swaged end of the top transition bend (FIG. 6.2). 6.8.

  • Page 19: Section 7: Upper Loop

    UPPER LOOP 7.1. Upper loops are commonly used to terminate the handrail on the opposite side of the step from the closure or on both sides of the step when used with step on a 5-ft (nominal) platform side. Upper loops are also used on both sides of the step when used with a platform extender. 7.2.
  • Page 20 7.7. flush or slightly below the walking surface, then install a corner pocket cover (FIG. 7.3). Refer to ‘PLATFORMS’ section in the main PATHWAY HD Code Compliant Modular Access System Instruction Manual for securing the corner pocket cover in place.

  • Page 21: Section 8: Connect Step Handrail To Ramp Handrail

    CONNECT STEP HANDRAIL TO RAMP HANDRAIL Assemble and set all ramps, ramp guards or two-line rails, platforms, and platform guards or two- 8.1. line rails as described in the PATHWAY HD Code Compliant Modular Access System Installation Manual. 8.2. Complete the step assembly, including handrail installation.

  • Page 22: Section 9: Optional Equipment - Return To Ground Handrail

    8.8. Drill a 1/8” pilot hole on the underside of the 90° bend at 3/4” from the end, through one wall of both the elbow and the swaged end of the top transition bend. 8.9. Insert a 1/4” x 1” self-drilling, self-tapping pan head Phillips screw into drilled hole (FIG. 8.3). Tighten securely.
  • Page 23 9.4. Insert a 1-1/2” diameter tube with swaged end into return to ground with the swaged end extending as far as possible into the return to ground, and then insert a return to landing base into the lower end of the 1-1/2” diameter tube with swaged end. 9.5.

  • Page 24: Section 10: Optional Equipment - Return To Landing Handrail

    OPTIONAL EQUIPMENT – RETURN TO LANDING HANDRAIL In addition to the return to ground at the bottom of the step, the step is also available with options to return the handrail to a landing or to an existing surface at the top of the step. There are options to continue (extend) the handrail parallel to the step or turn 90°...
  • Page 25 10.3. Insert a 1-1/2” diameter tube with swaged end into the short leg of the 13-1/4” long 90° bend with the swaged end extending as far as possible into the elbow and insert a return to landing base into the lower end of the 1-1/2” diameter tube with swaged end. Trim the 1-1/2” diameter tube with swaged end until the lower end of the tube clears the welded area of the return to landing base, approximately 1/4”...
  • Page 26 If installing the return to landing so that it turns 90° at the upper landing, install the short leg of the 10.8. 90° bend over the swaged end of the top transition bend with the long leg oriented in the direction of the turn desired.
  • Page 27 Drill a 1/8” pilot hole on the underside of the short leg of the 90° bend at 3/4” from the end of 10.12. the 90° bend, through one wall of both the 90° bend and the swaged end of the top transition bend (FIG.

  • Page 28: Section 11: Optional Equipment - Steps On Platform Extender

    Leveling feet are provided with the system step. When adjusting the system step, be mindful of applicable building codes and ADA guidelines. The ground must be leveled at the proper height with respect to the platform. EZ-ACCESS will not be responsible for any costs or liabilities resulting from use of the leveling feet. 12.2.

  • Page 29: Section 13: Final Steps And Checks

    For the safety of all users, it is important to keep your system clear of snow, ice, and other debris. EZ-ACCESS® will not be held responsible for any injuries or damages that arise from the information provided. Always check with the deicing product’s manufacturer or your local supplier to determine which method is best for your situation.
