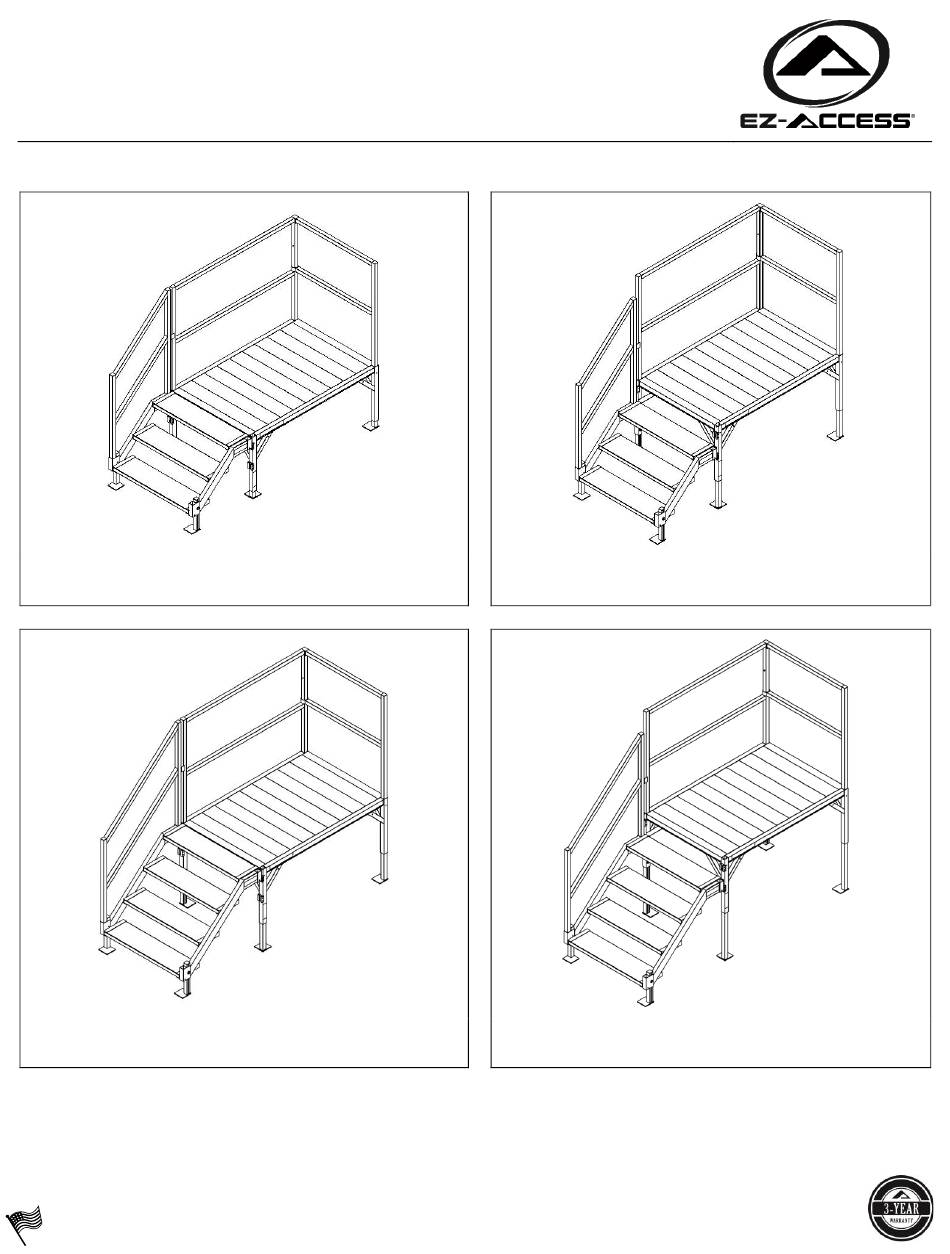

Installation Manual
FORTRESS
OSHA Stair System
®
3-Tread at 25.5"
3-Tread at 34"
4-Tread at 34"
4-Tread at 42.5"
3-YEAR WARRANTY. Please register at www.ezaccess.com/warranty-satisfaction.
®
© EZ-ACCESS
, a division of Homecare Products, Inc. All rights reserved.
All text and images contained in this document are proprietary and may not be shared, modified, distributed,
reproduced, or reused without the express written permission of EZ-ACCESS.
Manufactured in the USA
12963 REV 09-25-2023
Advertisement
Related Manuals for EZ-ACCESS FORTRESS OSHA Stair System
Summary of Contents for EZ-ACCESS FORTRESS OSHA Stair System
- Page 1 , a division of Homecare Products, Inc. All rights reserved. All text and images contained in this document are proprietary and may not be shared, modified, distributed, reproduced, or reused without the express written permission of EZ-ACCESS. Manufactured in the USA...
- Page 2 INTRODUCTION Throughout this manual, the term “system” refers to the entire FORTRESS® OSHA Stair System, including its components, hardware, and any/all optional equipment. SYMBOLS The WARNING symbol indicates a potentially hazardous condition/situation. The safety warnings throughout this manual, and on your equipment, if any, are for the protection of people and property. Failure by any operator to abide by safety warnings will result in a waiver of all liabilities, loss of your warranty, and could result in equipment damage and or failure, property damage, risk of serious bodily injury, and or death.
- Page 3 WARNINGS, CONT’D. Aluminum conducts electricity. Do not use the system during electrical storms or in proximity to damaged or exposed wiring. Properly support and restrain the system in transit or storage. For additional care, usage, or general safety information, please call 1-800-451-1903. TOOLS TYPICALLY REQUIRED ✓...
-
Page 4: Basic System Components
BASIC SYSTEM COMPONENTS FORTRESS OSHA Stair System Component Descriptions Diagram Letter (FIG. 1) 3-Tread Platform (Includes Legs) 4-Tread Platform (Includes Legs) (Not Shown) 3-Tread Platform with Oversized Feet (Includes Legs) (Not Shown) 4-Tread Platform with Oversized Feet (Includes Legs) (Not Shown) Platform Leg LH 17”... -
Page 5: Installation
1. INSTALLATION 1.1. Set the platform on its side. 1.2. Loosen platform leg adjustment bolts in each platform corner pocket, but do not remove them. Adjust legs to the desired height and securely retighten platform leg adjustment bolts and washers (FIG. 2). If using oversized feet, see ‘OVERSIZED FEET INSTALLATION (OPTIONAL EQUIPMENT)’... - Page 6 FIG. 3 2. OVERSIZED FEET INSTALLATION (OPTIONAL EQUIPMENT) 2.1 Loosen the leg adjustment bolts in each platform and riser corner pocket, but do not remove them; then remove the existing legs (FIG. 2). 2.2 Insert the legs included with the oversized feet into the corner pockets with the open side of the channel oriented toward the leg adjustment bolt and washer and the square nut inside the leg (FIG.
- Page 7 3. PLATFORM CANOPY INSTALLATION (OPTIONAL EQUIPMENT) 3.1 Remove handrails from the system (if installed) and set aside. Use extreme caution on the platform when no handrails are present. 3.2 Insert 1-1/2” square canopy posts into platform corner pockets (FIG. 5). 3.3 Set canopy roof on canopy posts.
-
Page 8: Maintenance And Safety
For the safety of all users, it is important to keep your system clear of snow, ice, and other debris. Always follow the deicing agent manufacturer’s directions. EZ-ACCESS® will not be held responsible for any injuries or damages that arise from the information provided. ALWAYS check with the deicing product’s manufacturer or your local supplier to determine which method is best for your situation. - Page 9 ® Thank you for choosing EZ-ACCESS for your accessibility needs. www.ezaccess.com...
