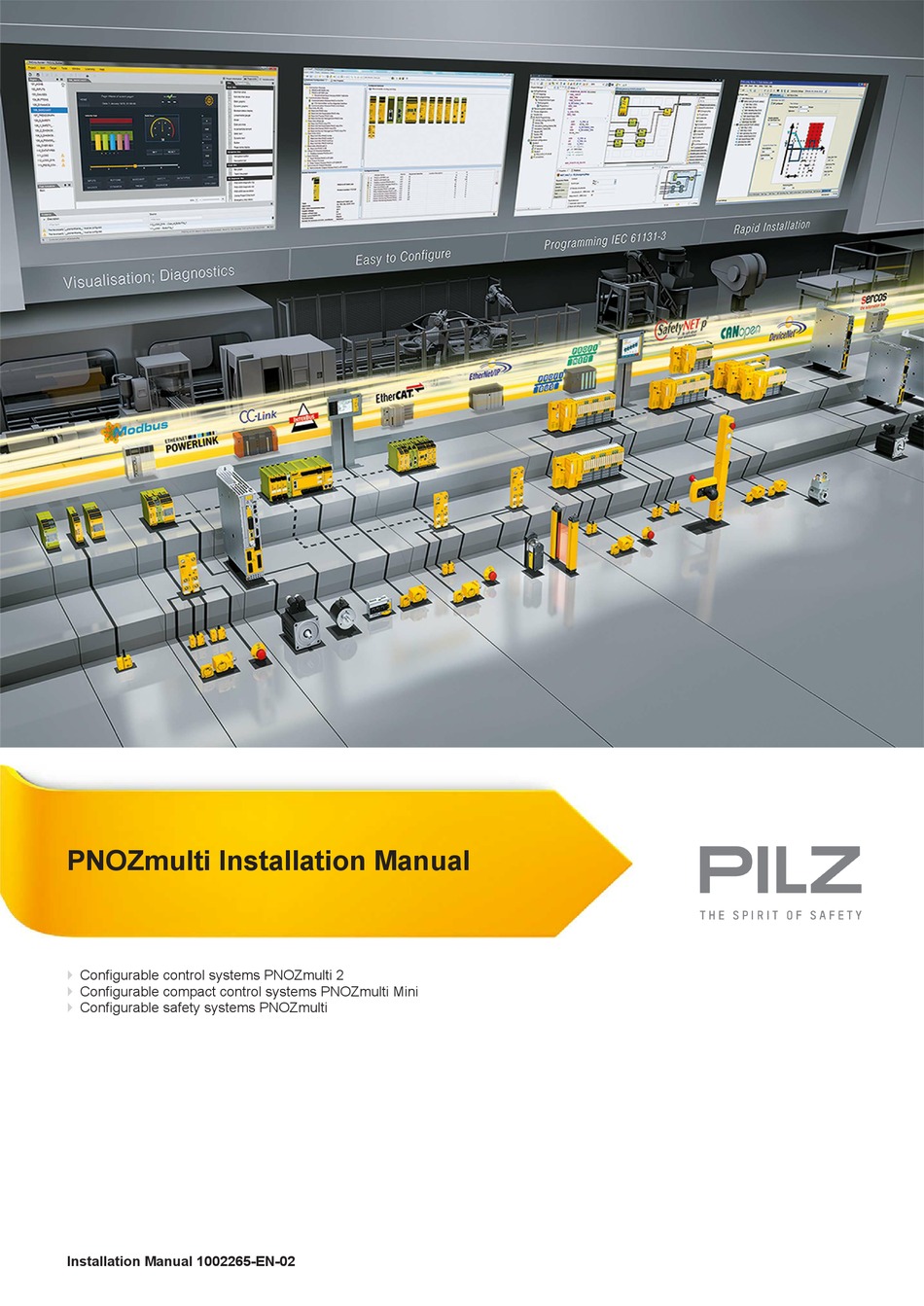

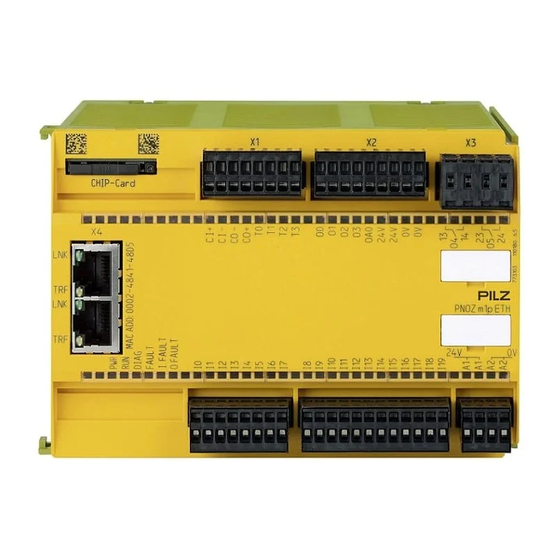

- Page 1 PNOZmulti Installation Manual Configurable control systems PNOZmulti 2 Configurable compact control systems PNOZmulti Mini Configurable safety systems PNOZmulti Installation Manual 1002265-EN-02...
- Page 2 Preface This document is a translation of the original document. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for internal purposes. Suggestions and comments for improving this documentation will be gratefully received.
-
Page 3: Table Of Contents
Install the control system PNOZmulti 4.2.1 Install base unit without expansion module 4.2.2 Connect the base unit and expansion modules Install the control system PNOZmulti Mini 4.3.1 Install base unit without expansion module 4.3.2 Connect the base unit and expansion modules Install the control system PNOZmulti 2 4.4.1... - Page 4 Connection example: analogue input module and speed monitor 5.11 Fieldbus modules 5.12 Link modules 5.13 Cascading 5.13.1 System requirements 5.13.2 Series connection 5.13.3 Tree structure 5.13.4 Supply voltage for the cascaded units 5.13.5 Installing the cascaded units 5.13.6 Wiring Installation Manual PNOZmulti Installation Manual 1002265-EN-02...
-
Page 5: Introduction
The respective operating manuals contain a description of the units' functionality and guidelines on their operation. The document "PNOZmulti System Expansion" contains details of the maximum sys- tem expansion. This documentation is valid for the configurable small control systems PNOZmulti:... - Page 6 It also highlights areas within the text that are of particular import- ance. INFORMATION This gives advice on applications and provides information on special fea- tures. Installation Manual PNOZmulti Installation Manual 1002265-EN-02...
-
Page 7: Safety
Protect the external power supply by fitting a fuse between the external power supply and the control system. The size of the fuse will depend on the specification of the external power supply, the cable cross section and on local regulations. Installation Manual PNOZmulti Installation Manual 1002265-EN-02... -
Page 8: Installation
2.3.3 Chip card The base units for the PNOZmulti and PNOZmulti Mini and the base units PNOZ m B0 from the PNOZmulti 2 range have a chip card for saving and downloading projects. NOTICE The chip card contact is only guaranteed if the contact surface is clean and undamaged. - Page 9 Safety The base units PNOZ m B1 have a USB memory for saving and downloading projects. Installation Manual PNOZmulti Installation Manual 1002265-EN-02...
-
Page 10: Electromagnetic Compatibility (Emc)
Electromagnetic compatibility (EMC) Electromagnetic compatibility (EMC) Overview The PNOZmulti systems are designed for use within an electromagnetic industrial environ- ment. To ensure electromagnetic compatibility the correct procedures must be carried out during installation. A device is electromagnetically compatible if It functions without error in a given electromagnetic environment. -
Page 11: Making The Installation Emc-Compliant
Group 2: Data and supply lines for DC voltages from 60 V to 400 V and AC voltages from 25 V to 400 V. Group 3: Supply lines above 400 V Cabling inside buildings The cable groups listed above should be laid separately. Installation Manual PNOZmulti Installation Manual 1002265-EN-02... -
Page 12: Connecting The Fieldbuses
– 25 mm for equipotential bonding cable over 200 m in length If the devices of the control system PNOZmulti are connected with shielded signal cables which are earthed at either end, the impedance is calculated as follows: – Impedance equipotential bonding cable = 10 % of shield impedance Use copper or galvanised steel equipotential bonding cable. -
Page 13: Suppression On Inductive Loads
Control System", under "Analogue input module". 3.2.6 Suppression on inductive loads Adequate protection must be provided for all inductive consumers. 3.2.7 Lighting in the control cabinet Use low interference panel lighting for inside the control cabinet. Installation Manual PNOZmulti Installation Manual 1002265-EN-02... -
Page 14: Testing The Emc-Compliance Of An Installation
Electromagnetic compatibility (EMC) Testing the EMC-compliance of an installation You can use the list below to check that the installation of the control systems PNOZmulti and PNOZmulti Mini is EMC-compliant. Check Action Done Are there areas with a high EMC protection in these areas should be probability of interference? planned with particular care. - Page 15 With unbalanced loads, e.g. TN-C systems, currents can be fed back to the source via the PEN conductor and the currents on the PEN are not zero. This can lead to EMC problems. Installation Manual PNOZmulti Installation Manual 1002265-EN-02...
-
Page 16: Installation
To comply with EMC requirements, the mounting rail must have a low impedance con- nection to the control cabinet housing. The coated versions of the PNOZmulti units are suitable for use where there are in- creased environmental requirements on temperature and humidity. Please refer to the technical details. -
Page 17: Mounting Distances
The ambient temperature in the control cabinet must not exceed the figure stated in the technical details. Air conditioning may otherwise be required. Mounting distances: 30 mm (1.181") IM0 IM1 IM2 PNOZ mm0.1p 20 mm 20 mm (0.787") (0.787") IM16 IM17 IM18 IM19 24 V 30 mm (1.181") Installation Manual PNOZmulti Installation Manual 1002265-EN-02... -
Page 18: Install Base Unit Without Expansion Module
4.2.1 Install base unit without expansion module When installed on its own, a base unit from the configurable control system PNOZmulti must be fitted with a terminator: The terminator must be fitted to the side of the base unit marked “Termination/Link”. - Page 19 Installation Install the control system PNOZmulti Mini 4.3.1 Install base unit without expansion module Make sure that the terminators are inserted on the top left and right of the unit : Left: Black/yellow terminator Right: Yellow terminator Left: Right: Black/yellow...
- Page 20 Left-hand side on the base unit and expansion modules to the left of the base unit: Black/yellow terminator – Right-hand side on the base unit and expansion modules to the right of the base unit: Yellow terminator Jumper Left terminator Right terminator Installation Manual PNOZmulti Installation Manual 1002265-EN-02...
-
Page 21: Install Base Unit Without Expansion Module
Installation Install the control system PNOZmulti 2 4.4.1 Install base unit without expansion module Make sure that the terminators are inserted on the top left and right of the unit. IM0 IM1 IM2 PNOZ mm0.1p IM16 IM17 IM18 IM19 24 V... -
Page 22: Connecting The Base Unit And Expansion Modules
4.4.2 Connecting the base unit and expansion modules The position of the expansion modules is defined in the PNOZmulti Configurator. The ex- pansion modules are connected to the left or right of the base unit, depending on the type. Please refer to the document "PNOZmulti System Expansion" for details of the number of modules that can be connected to the base unit and the module types. -
Page 23: Connecting The Control System Pnozmulti
(connect in star). Supply voltage The base units from the configurable control system PNOZmulti require a 24 VDC supply. The connected expansion modules can be supplied with voltage from the base unit via the jumpers. -
Page 24: Earthing
There is no earthing spring on the PNOZmulti Mini. Any connection re- quired to the mounting rail must be established externally (e.g. with the link modules PNOZ mml1p, PNOZ mml2p). -
Page 25: Terminals
The maximum cable cross section on field connection terminals is 1.5 mm (AWG16) Terminal points per connection: 1 Stripping length: 9 mm Configurable compact control systems PNOZmulti Mini, configurable control sys- tems PNOZmulti 2 Screw terminals: The minimum cable cross section on field connection terminals is 0.25 mm (AWG24) The maximum cable cross section on field connection terminals is 2.50 mm... -
Page 26: Example Of Emc-Compliant Wiring
Wiring guidelines and connection examples are available in the operating manuals or data sheets for the input/output modules. Example of EMC-compliant wiring The following example illustrates an EMC-compliant connection for a configurable control system PNOZmulti (e.g. PNOZ m1p with expansion modules). L1 L2 L3 N PE + 24 V DC Control cabinet... -
Page 27: Motion Monitoring Modules
The following applies for the speed monitor PNOZ msXp with RJ45 connec- tion: The shield connection for the incremental encoder is established via the RJ45 connector housing. Use ready-made cable from Pilz (see units' oper- ating manuals and Technical Catalogue). INFORMATION... - Page 28 Connecting the Control System PNOZmulti INFORMATION With the RJ45 and Mini-IO plug-in connections, please note that the mech- anical load capacity of the data cable and connector is limited. Appropriate design measures should be used to ensure that the plug-in connection is in- sensitive to increased mechanical stress (e.g.
-
Page 29: Connection Example: Analogue Input Module And Speed Monitor
RJ45 or Mini-IO fe- male connector. Pilz supplies complete adapters as well as ready-made cable with female connectors, which can be used when making your own adapter. The range of products in this area is constantly being expanded. - Page 30 Connecting the Control System PNOZmulti PNOZ ma1p PNOZ m1p PNOZ ms2p CHIP-Card Key: 1: Control cabinet wall 2: Cable bushing 3 Supply voltage for sensors 4: Connections for analogue inputs and supply voltage for sensors 5: Shield bar 6: Sensor signal lines...
-
Page 31: Fieldbus Modules
3 A. The plug-in connection terminals are optionally designed as spring-loaded terminals or screw terminals (see "Order reference" in the operating manuals). You can use ready-made cable from Pilz to connect the devices. Cable properties PNOZ ml2p... -
Page 32: Cascading
The cascading outputs may not be used to drive loads. The same also applies to out- puts on PNOZelog units that are connected to cascading inputs on PNOZmulti units. If necessary, a reset lock must be provided on each cascaded unit. -
Page 33: System Requirements
Remember to consider the switch-on delay and any potential delay time for the outputs on the PNOZelog units (see operating manual or PNOZelog technical catalogue). When connecting PNOZmulti - PNOZelog, the cascading output “CO-” is not connec- ted. PNOZ m1p... -
Page 34: Tree Structure
Tree structures may be designed with as many levels as necessary. Conditions: A max. of 4 PNOZmulti units may be incorporated in parallel on each level. PNOZelog units may only be connected to the PNOZmulti units in series. Max. of one PNOZelog unit is permitted on each level. PNOZ m1p... -
Page 35: Supply Voltage For The Cascaded Units
Connecting the Control System PNOZmulti 5.13.4 Supply voltage for the cascaded units The cascaded PNOZmulti units may be supplied via a power supply. The power con- sumption of the individual units should be considered when deciding on the size of the power supply. -
Page 36: Wiring
Cable runs between the connected units: – PNOZmulti - PNOZmulti: Max. 100 m – PNOZelog - PNOZmulti cascaded directly: Max. 10 m – Cable material: see Technical details Outside the control cabinet, both the wires from the cascading input (CI+, CI-) and the wires from the cascading output (CO+, CO-) must be laid in separate multicore cables. - Page 37 Front cover Support Technical support is available from Pilz round the clock. Americas Australia Scandinavia Brazil +61 3 95446300 +45 74436332 +55 11 97569-2804 Spain Canada Europe +34 938497433 +1 888-315-PILZ (315-7459) Austria Switzerland Mexico +43 1 7986263-0 +41 62 88979-30...
