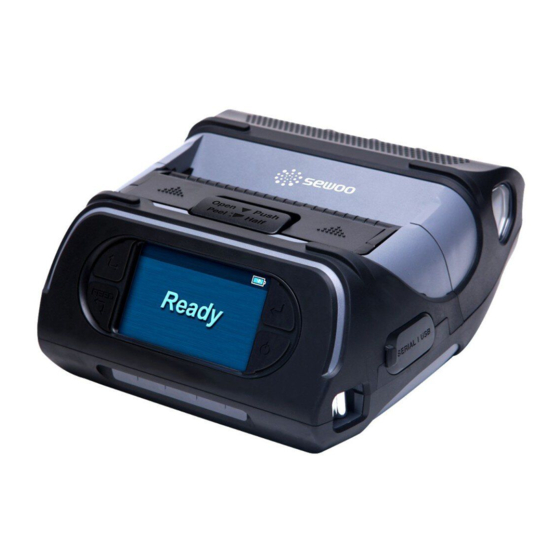

Aroot Co., Ltd.
28-6, Gajangsaneopdong-ro, Osan-si, Gyeonggi-do ,18103, Republic of Korea
TEL +82-31-8077-5000 / FAX +82-31-624-5310 / http://www.miniprinter.com
P43Ⅱ(Peeler) ENG Rev. C 01 / 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Aroot LK-P43 Ⅱ and is the answer not in the manual?

Questions and answers

Related Manuals for SEWOO Aroot LK-P43 Ⅱ

Summary of Contents for SEWOO Aroot LK-P43 Ⅱ

  • Page 1 Aroot Co., Ltd. 28-6, Gajangsaneopdong-ro, Osan-si, Gyeonggi-do ,18103, Republic of Korea TEL +82-31-8077-5000 / FAX +82-31-624-5310 / http://www.miniprinter.com P43Ⅱ(Peeler) ENG Rev. C 01 / 2021...
  • Page 2 MOBILE PRINTER MODEL � LK-P43Ⅱ USER�S MANUAL / Peeler All specifi  cations are subject to change without notice...
  • Page 3 Following information shall be included in the manual Information to User; Caution: the user that changes or modifications not expressly approved by the J. STEPHEN Lab., Ltd.responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 4 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions. 1) This device may not cause harmful interference, and including  2)  T his device must accept any interference received, interference that may cause undesired operation. Vic Barczyk 19700 S Vermont Ave Ste 200 Torrance, CA 90502 | USA sales@miniprinter.com...

  • Page 5: Table Of Contents

    Table of Contents 1. Safety Precautions 2. Unpacking 3. Product Overview 4. Setting Up the Product 4-1. Display 4-2. Installing the Battery 4-3. Removing the Battery 4-4. Charging the Battery 4-5. Battery Charger Usage (Optional) 4-6. Car Charger Usage (Optional) 4-7.
  • Page 6 5. Peripheral Connection 5-1. Bluetooth Connection (Optional) 5-2. Wi-Fi Connection (Optional) 5-3. Interface Cable Connection 6. Cleaning the Printer 6-1. Print-Head Cleaning 6-2. Platen Roller Cleaning 7. Printer Specification 8. Utilities 9. S/W...

  • Page 7: Safety Precautions

    1. Safety Precautions For better safety and reliability, adhere to the following precautionary measures. Read and follow the instructions carefully before operation of the product. Indication Prohibition Must follow Unplug the power from the Do not disassemble outlet Grounding to prevent Do not handle the product with electric shock wet hands...
  • Page 8 WARNING Failure to follow these instructions could result in fire, electric shock, other injuries, or property damage. Do not disassemble, repair or modify the Do not unplug the product. power cable to turn Potential risk of off the product. malfunction, electric Turn off the power shock, or fire.

  • Page 9: Unpacking

    2. Unpacking Standard Printer Battery Belt Clip AC Cord Adaptor USB Cable Serial Cable Roll Paper Quick Manual Optional Battery Cradle 4BC-XX Car Adapter Shoulder Strap (Charging Cradle) (Charging Cradle)

  • Page 10: Product Overview

    3. Product overview Front PEELER WING Cover Open Button PEELER BODY Display SERIAL Bottom Shoulder Strap Ring Battery Belt Clip Connector Charger Connector...

  • Page 11: Setting Up The Product

    4. Setting Up the Product 4-1. Display Button Name function - Advances the paper, clears error messages, and moves down through menu options. Paper Feed/ 01 Refer to “4-13” for Diagnostic Test information. Down Button 02 Refer to the service manual regarding Hexadecimal Dumping.

  • Page 12: Installing The Battery

    4-2. Installing the Battery Insert the battery as shown. NOTE You must fully charge the battery when you receive the printer. Batteries can be charged in the printer or in an optional external cradle.

  • Page 13: Removing The Battery

    4-3. Removing the Battery Remove the battery as shown.

  • Page 14: Charging The Battery

    4-4. Charging the Battery 1 Be sure the printer is turned off. 2 After opening the DC JACK cover, insert DC JACK into the printer. 3 Plug the power cord into the electrical outlet. The charge indicator LED Status charging charging complete Charging Lamp Green...

  • Page 15: Battery Charger Usage (Optional)

    4-5. Battery Charger Usage Optional Lamp 1 Insert the battery into the battery charger as shown above. 2 Connect the DC JACK to the Battery Charger. 3 Plug the power cord into the electrical outlet. 4 Once the charging is completed, remove the battery from the charger. The charging status LED Status charging...

  • Page 16: Car Charger Usage (Optional)

    4-6. Car Charger Usage Optional Connect the car charger to the printer. Input 12 ~ 24V Output 9.5V / 3A NOTE Connect the car charger to the printer.

  • Page 17: Belt Clip Usage

    4-7. Belt Clip Usage Insert screw into belt clip. Tighten the screw with driver as shown. NOTE The belt clip is included with the printer but is not required to be used or installed!

  • Page 18: Interface Cap Installation

    4-8. Interface Cap Installation When the Interface Cap is disconnected Using a sharp tool, insert the Cap Hook from the printer, try to orient the Cap into the hole located on the right side of Hook horizontally as shown in the image. Interface Cap.

  • Page 19: Paper Roll Installation

    4-9. Paper Roll Installation Open the Paper cover by pressing the Insert the paper roll so it unrolls from Open button. You can set the width of the bottom. Remove the paper core paper guide by turning the knob with when the roll is empty.
  • Page 20 Be cautious when handling the product while the Printer Cover is open. You may have a potential risk of injury when the Paper Cover closes.

  • Page 21: Install / Uninstall The External Paper Guides

    4-10. Install / Uninstall the External Paper Guides Uninstall the External Paper Guides External Paper Guides Using a sharp tool, push on the External The outer cover of External Paper Guides Paper Guides to detach them from the will be separated. printer.
  • Page 22 When installing the external paper guides, set the printer on the edge of a flat surface. Then insert the paper in the backside of the printer’s paper slot and adjust the paper guide to fit the paper properly. Recommendation please set the paper position far away at least twice length of printing paper. 300mm or more 20mm or more...

  • Page 23: Peel Mode

    4-11. Peel Mode Peel Mode With a roll of stock installed, slide the Push the peeler body until you see peeler body towards the back of the two complete triangles. Press the Feed printer. button. Non-Peel Mode Pull down the Peeler Wing while pressing Press the feed button.
  • Page 24 Paper (1) Label Paper Engraved Line Paper (2) Label Paper When users operates the peeler like the image below that has slits on the label(1) and the perforated label(2), there might be an error in the peeler function.

  • Page 25: Shoulder Strap Installation (Optional)

    4-12. Shoulder Strap Installation Optional Insert the strap into the hook of the printer. Place the end of the strap into the hook After pulling out the end of the strap of shoulder strap. tightly, put it into the clip to be fastened.

  • Page 26: Diagnostic Test

    4-13. Diagnostic Test Turn off the printer. Press and hold the feed button and power button. NOTE 01 For Hex Dump mode, do steps 1-2 then press the feed button. 02 After printing ASCII pattern, the diagnostic test is complete. 03 If the feed button is not pressed to go to Hex Dump mode,  the printer exits diagnostics after...
  • Page 27 Self-Test Printout Sample Upon initial installation or for troubleshooting, you can run the diagnostic test to get information about: - Firmware version, emulation, codepage, sensor settings, interface settings, etc. If no issues are found with the diagnostic test, examine other devices and software.

  • Page 28: Peripheral Connection

    5. Peripheral Connection This product can communicate with other devices via Bluetooth, Wi-Fi, or a communication cable. 5-1. Bluetooth Connection Optional 1 The Printer can be connected to a PDA or a PC using a wireless Bluetooth connection. 2 Use the Bluetooth connection function supported by your device to connect to the printer.

  • Page 29: Interface Cable Connection

    5-3. Interface Cable Connection Serial 1 Connect USB or Serial cable to the applicable port on the printer. NOTE - Only use cables included with the printer. 2 Connect the interface cable to the USB or Serial port of the device(PDA, PC, etc.).

  • Page 30: Cleaning The Printer

    6. Cleaning the Printer If the interior of the printer is dusty, printing quality can be reduced. In this case, follow the instructions below to clean the printer. NOTE 01 Make sure to turn the printer power off prior to cleaning. 02 Regarding printhead cleaning, as the printhead gets very hot during printing, turn off the printer power and wait approximately 10 minutes before cleaning.

  • Page 31: Platen Roller Cleaning

    6-2. Platen Roller Cleaning 1 Clean the platen roller with a clean soft cloth moistened with isopropyl alcohol or a cleaning pen. 2 Turn the platen roller with your finger to clean the entire surface. Platen Roller...

  • Page 32: Printer Specification

    7. Printer Specification Printing Method Direct Thermal Printing Speed 100 mm/sec Resolution 203 DPI Character ALPHA NUMERIC Character, Extension Character EAN-8, EAN-8(+2+5), EAN-13, EAN-13(+2+5), Codabar, Code11, Code39, Code93, Code128, ITF, LUPC-A(+2+5), UPC-E, UPC-E(+2+5), Barcode Planet, UPC-A etc QR, PDF417, MicroPDF417, Maxicode, Datamatrix, Aztec, RSS14, TLC39 Font A(12x24), Font B(9x17), Asian Font(KOR, JPN, CHN_GB2312, CHN_BIG5),...
  • Page 33 50km Continuous Printing : 62min Reliability Standby for 60Hrs(2600mAh) Battery Standby for 108.3Hrs(5200mAh) Printing Length : 140M Memory Flash(Max.) 32MB / SDRAM 16MB Standard Serial(RS-232C), USB Communications Wi-Fi(802.11a/b/g/n) or Optional Bluetooth Smart Ready(Bluetooth4.2+BLE) Display TFT-LCD(RGB) 240 x 400 Input AC 100 ~ 240V 50 / 60Hz Adaptor Output 9.0V, 4.0A...

  • Page 34: Utilities

    This program is for label form design and designed LabelMaker(CPCL) label printing. Android Utility It is a utility app that prints text, barcodes, images, (Sewoo M_Utility) etc. through Bluetooth and Wi-Fi communication,  (ESC/POS) and able to printer settings.

  • Page 35: S/W

    Mac Driver in the Mac OS environment. Android Plugin This is a print service plug-in that allows you to print (Sewoo Print Service documents, images, and web pages without installing Plugin) (ESC/POS) additional apps. This is library for communication and data output Windows SDK with Mobile printer in Windows OS.
  • Page 36 PATENT...
