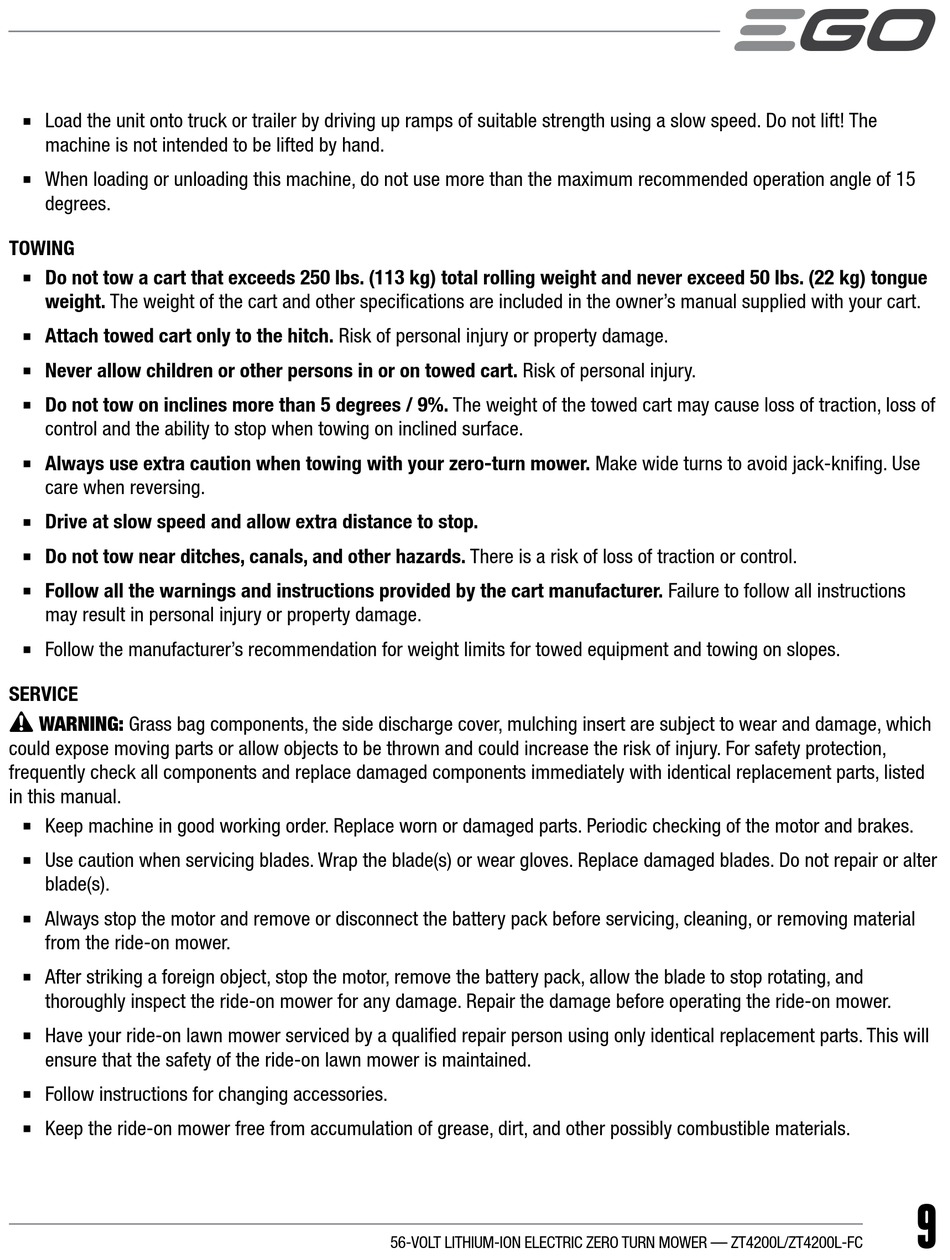

Towing; Service - EGO Power+ ZT4200L Operator's Manual

◾
Load the unit onto truck or trailer by driving up ramps of suitable strength using a slow speed. Do not lift! The
machine is not intended to be lifted by hand.
◾
When loading or unloading this machine, do not use more than the maximum recommended operation angle of 15
degrees.

TOWING

◾
Do not tow a cart that exceeds 250 lbs. (113 kg) total rolling weight and never exceed 50 lbs. (22 kg) tongue
weight. The weight of the cart and other specifications are included in the owner's manual supplied with your cart.
◾
Attach towed cart only to the hitch. Risk of personal injury or property damage.
◾
Never allow children or other persons in or on towed cart. Risk of personal injury.
◾
Do not tow on inclines more than 5 degrees / 9%. The weight of the towed cart may cause loss of traction, loss of
control and the ability to stop when towing on inclined surface.
◾
Always use extra caution when towing with your zero-turn mower. Make wide turns to avoid jack-knifing. Use
care when reversing.
◾
Drive at slow speed and allow extra distance to stop.
◾
Do not tow near ditches, canals, and other hazards. There is a risk of loss of traction or control.
◾
Follow all the warnings and instructions provided by the cart manufacturer. Failure to follow all instructions
may result in personal injury or property damage.
◾
Follow the manufacturer's recommendation for weight limits for towed equipment and towing on slopes.

SERVICE

WARNING: Grass bag components, the side discharge cover, mulching insert are subject to wear and damage, which
could expose moving parts or allow objects to be thrown and could increase the risk of injury. For safety protection,
frequently check all components and replace damaged components immediately with identical replacement parts, listed
in this manual.
◾
Keep machine in good working order. Replace worn or damaged parts. Periodic checking of the motor and brakes.
◾
Use caution when servicing blades. Wrap the blade(s) or wear gloves. Replace damaged blades. Do not repair or alter
blade(s).
◾
Always stop the motor and remove or disconnect the battery pack before servicing, cleaning, or removing material
from the ride-on mower.
◾
After striking a foreign object, stop the motor, remove the battery pack, allow the blade to stop rotating, and
thoroughly inspect the ride-on mower for any damage. Repair the damage before operating the ride-on mower.
◾
Have your ride-on lawn mower serviced by a qualified repair person using only identical replacement parts. This will
ensure that the safety of the ride-on lawn mower is maintained.
◾
Follow instructions for changing accessories.
◾
Keep the ride-on mower free from accumulation of grease, dirt, and other possibly combustible materials.
56-VOLT LITHIUM-ION ELECTRIC ZERO TURN MOWER — ZT4200L/ZT4200L-FC
9
