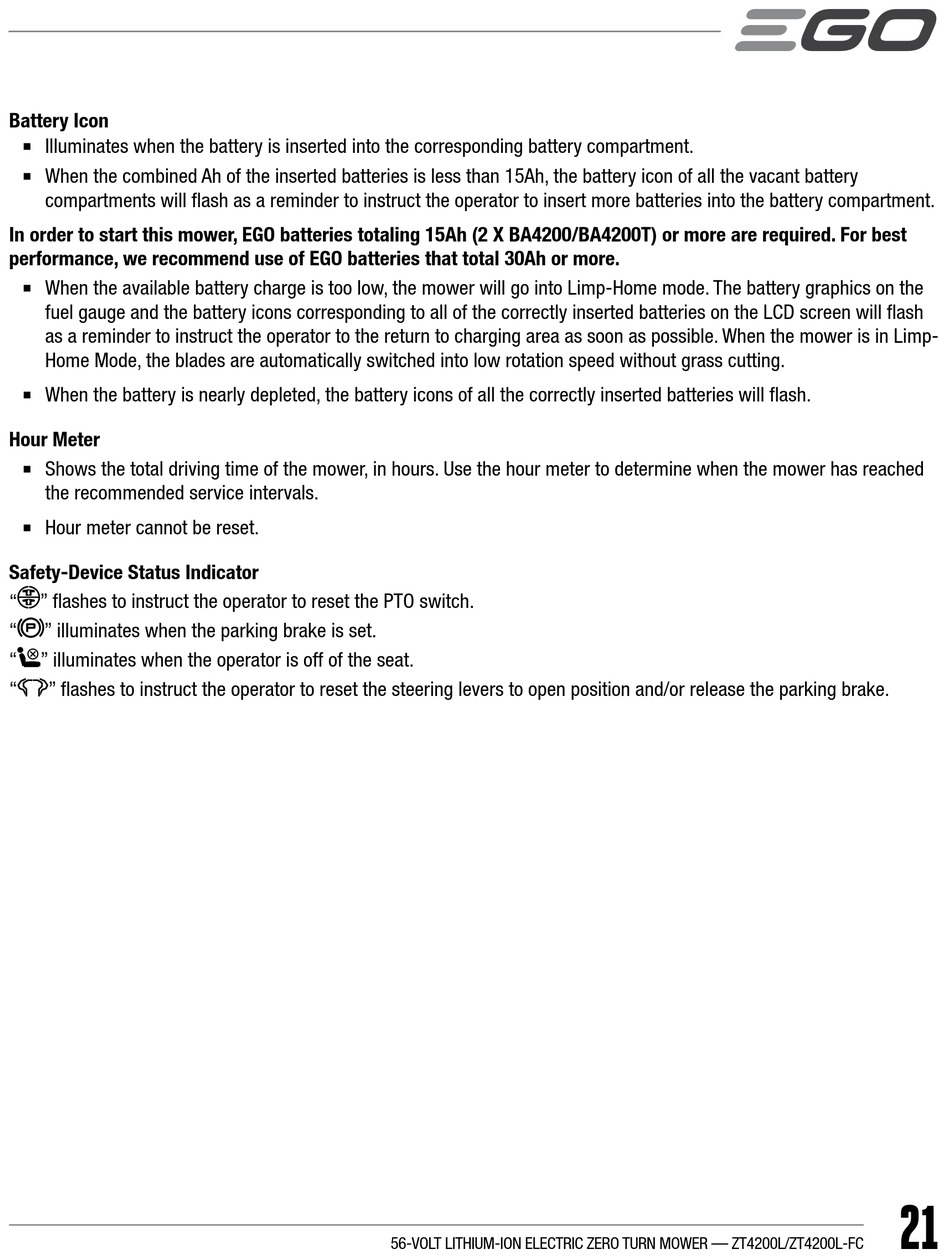

Battery Icon

◾
Illuminates when the battery is inserted into the corresponding battery compartment.
◾
When the combined Ah of the inserted batteries is less than 15Ah, the battery icon of all the vacant battery
compartments will flash as a reminder to instruct the operator to insert more batteries into the battery compartment.
In order to start this mower, EGO batteries totaling 15Ah (2 X BA4200/BA4200T) or more are required. For best
performance, we recommend use of EGO batteries that total 30Ah or more.
◾
When the available battery charge is too low, the mower will go into Limp-Home mode. The battery graphics on the
fuel gauge and the battery icons corresponding to all of the correctly inserted batteries on the LCD screen will flash
as a reminder to instruct the operator to the return to charging area as soon as possible. When the mower is in Limp-
Home Mode, the blades are automatically switched into low rotation speed without grass cutting.
◾
When the battery is nearly depleted, the battery icons of all the correctly inserted batteries will flash.

Hour Meter

◾
Shows the total driving time of the mower, in hours. Use the hour meter to determine when the mower has reached
the recommended service intervals.
◾
Hour meter cannot be reset.

Safety-Device Status Indicator

" " flashes to instruct the operator to reset the PTO switch.
" " illuminates when the parking brake is set.
" " illuminates when the operator is off of the seat.
" " flashes to instruct the operator to reset the steering levers to open position and/or release the parking brake.
