Initiation; Mounting The Suction Pad To The Lifting Device; Refueling The Engine - probst SH-1000-MINI Operating Instructions Manual

Installation
4.3

Initiation

The device must be installed and maintained by qualified personnel, mechanics and electricians.
4.4

Mounting the suction pad to the lifting device

• •
Suspend the lifting device from the suspension eye bolt on the crane or hoist used. Secure it safely!
•
Take the weight of the lifting device and the maximum carrying capacity into consideration!
•
Insert the suction pad into the support of the lifting device.
•
•

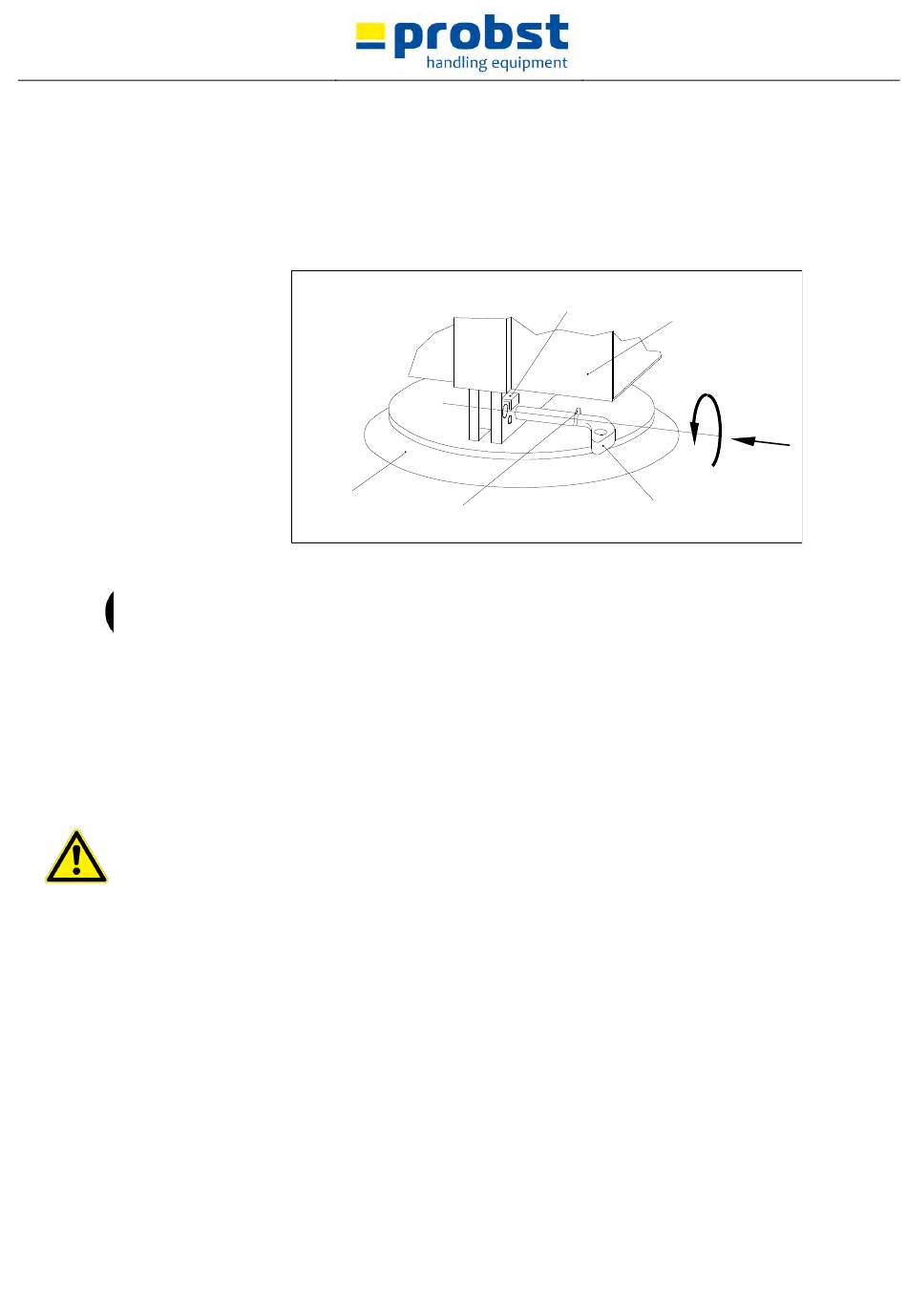

Feed the socket pin into the boring until the projection of the socket pin is at the shoulder of the
suction pad. Turn the socket pin downward until the projection is secure under the support. Check
whether the socket pin firmly secured. The socket pin must not be able to be pulled out without
turning.
•
Connect the vacuum hose to the suction pad and lock it with the integrated lock nut.
•
Before lifting loads check the safety equipment as described in section 1.12.
4.5

Refueling the engine

•
Gasoline is highly flammable. Always keep the fuel tank closed.
•
Do not smoke or allow flames when using gasoline. Do not inhale the fumes.
•
To refuel the engine, switch off the device and engine.
•
Only refuel the engine when it is switched off and cooled down.
•
After refueling, tightly close the tank.
•
Do not fill the fuel tank completely; fill up to approx. 4cm under the brim of the fill neck, so the fuel has
room to expand.
•
Starting the engine
•
Stopping the engine
