Poe; Connecting To The Power Source; Connect - Teldat 4Ge Installation Manual

3 Components and Power Supply
Warning
All interconnected communication devices should be plugged to THE SAME GROUNDED POWER
OUTLET, which should at the same time be of good quality (lower than 10 ohms).
Whether the workplace is provided with an uninterrupted power supply system (UPS), regulated supply
or it is independent from the rest (such as lighting, etc.); it is highly recommended that all data devices
should be connected to the same power source. This will avoid operating and premature aging prob-
lems of drivers and other components.

3.3.2 PoE

Connecting the PoE adapter to the router
Fig. 11:
The Teldat 4Ge device can be powered through an Ethernet cable, provided the latter complies with the POE
802.3aF standard. The ETHERNET port is enabled for this.
To connect the Ethernet cable with PoE power to the router, please carry out the steps outlined in
cable is PoE

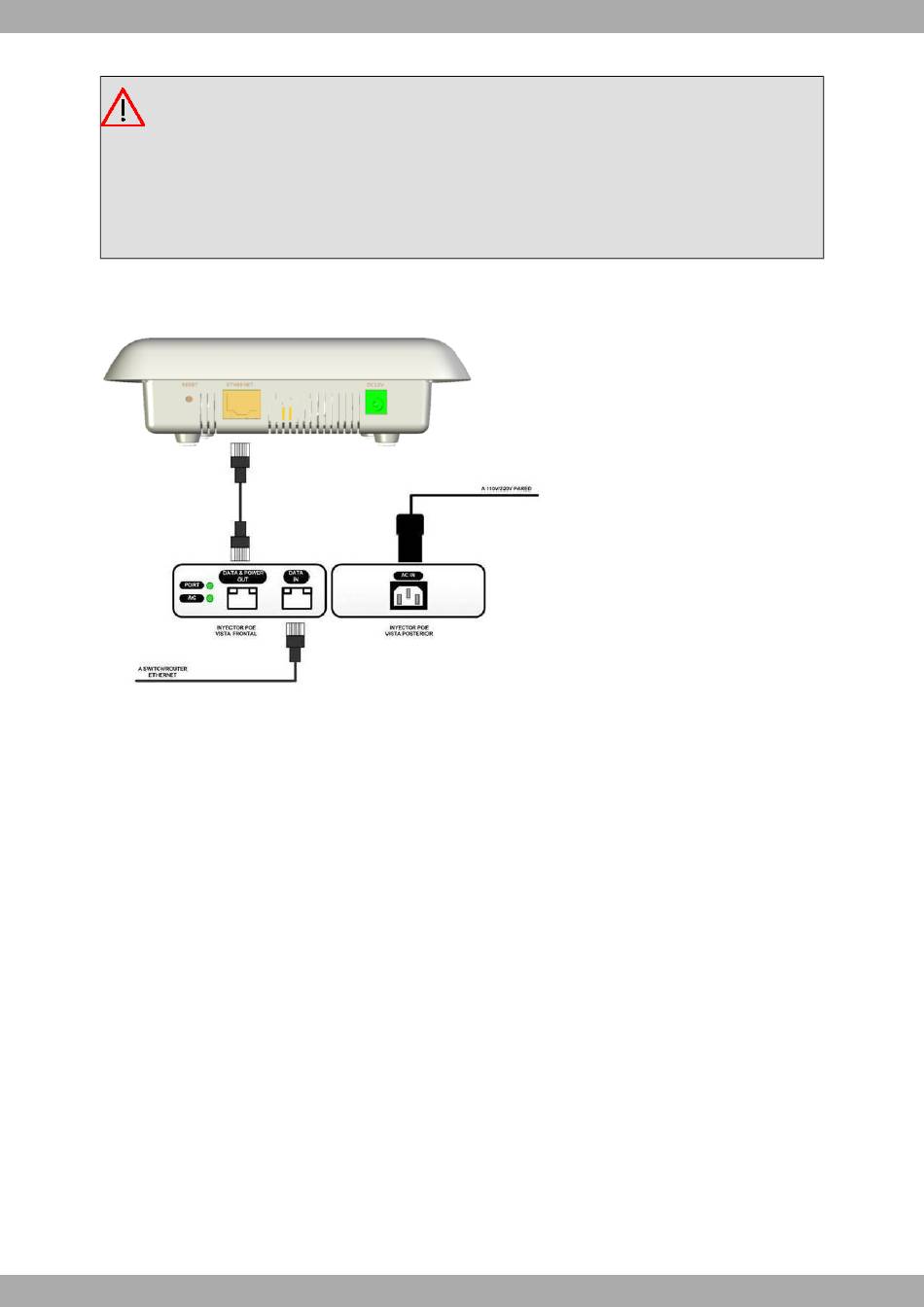

Figure 11 details how to connect the PoE injector to the device.

3.3.3 Connecting to the power source

3.3.4 Connect

3.3.4.1 If the Ethernet cable isn't PoE
• Make sure the router's power switch is in the OFF position (0).
• Make sure the power supply is NOT connected to either the electricity or the router.
• Connect all data cables.
• Connect the power cable to the device.
• Connect the power cable to the electricity supply.
• Set the router's power switch to the ON position (1).
12
on page 13.
Teldat S.A.
If the Ethernet
Teldat 4Ge Router
