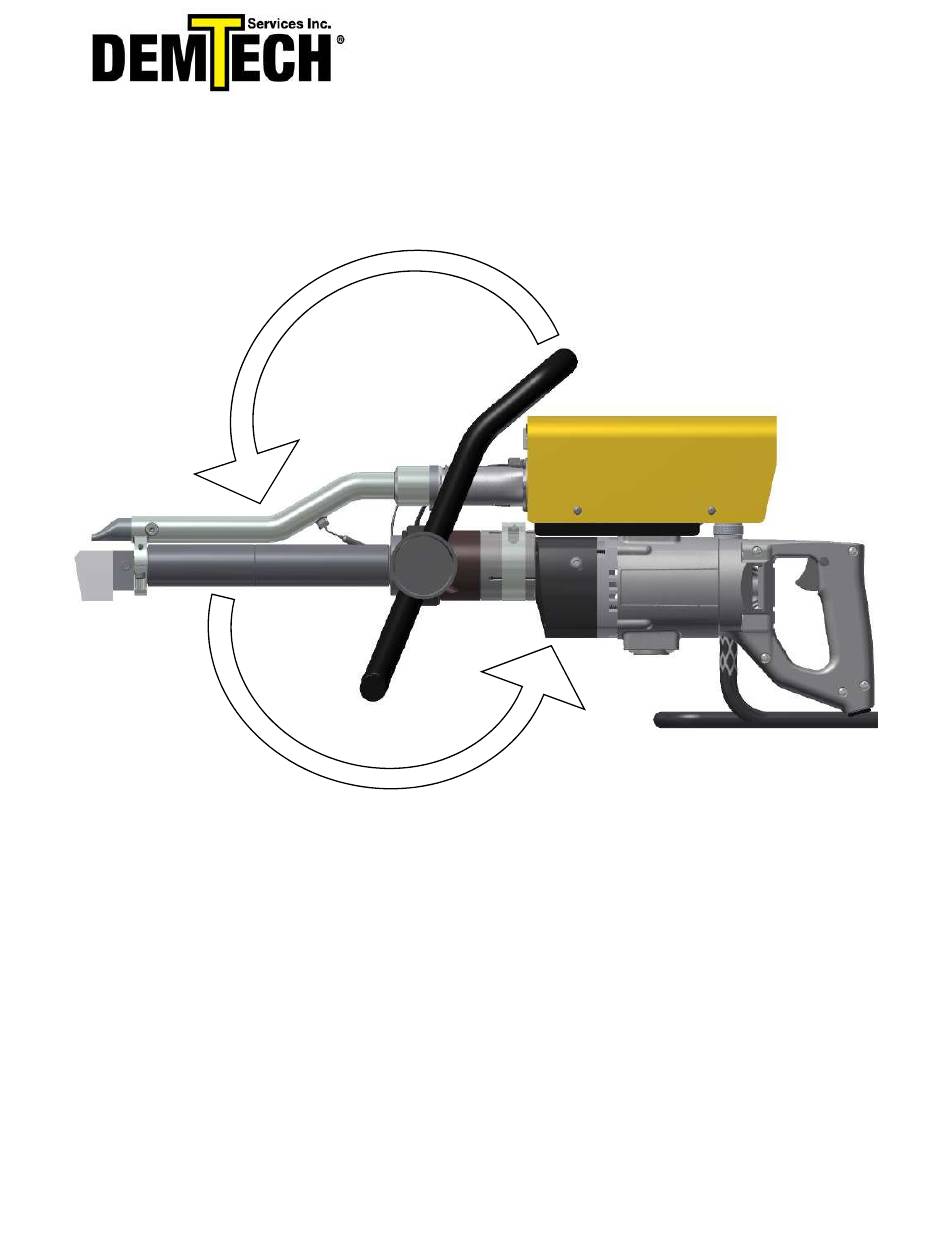

Adjust the grip handle to the best position for the welding to be performed (see Figure 7.1).
Loosen the handle by gripping the round knob and turning counter-clockwise. This will loosen
the handle clamp. Position the handle within its 45° swing and tighten the handle by turning
the round knob clockwise.
Figure 7.1
The welder contains a cold start protection feature that prevents operation of the drill motor
before the welder has reached the proper operating temperature. To prepare the welder for
operation, set the Pre-Heat and Plastic Heat temperatures. These settings will vary depending
on the material to be welded and the ambient environment. Operator and operating experience
will dictate the proper settings.
