Rev. A: January 2015
6. Welder Controls

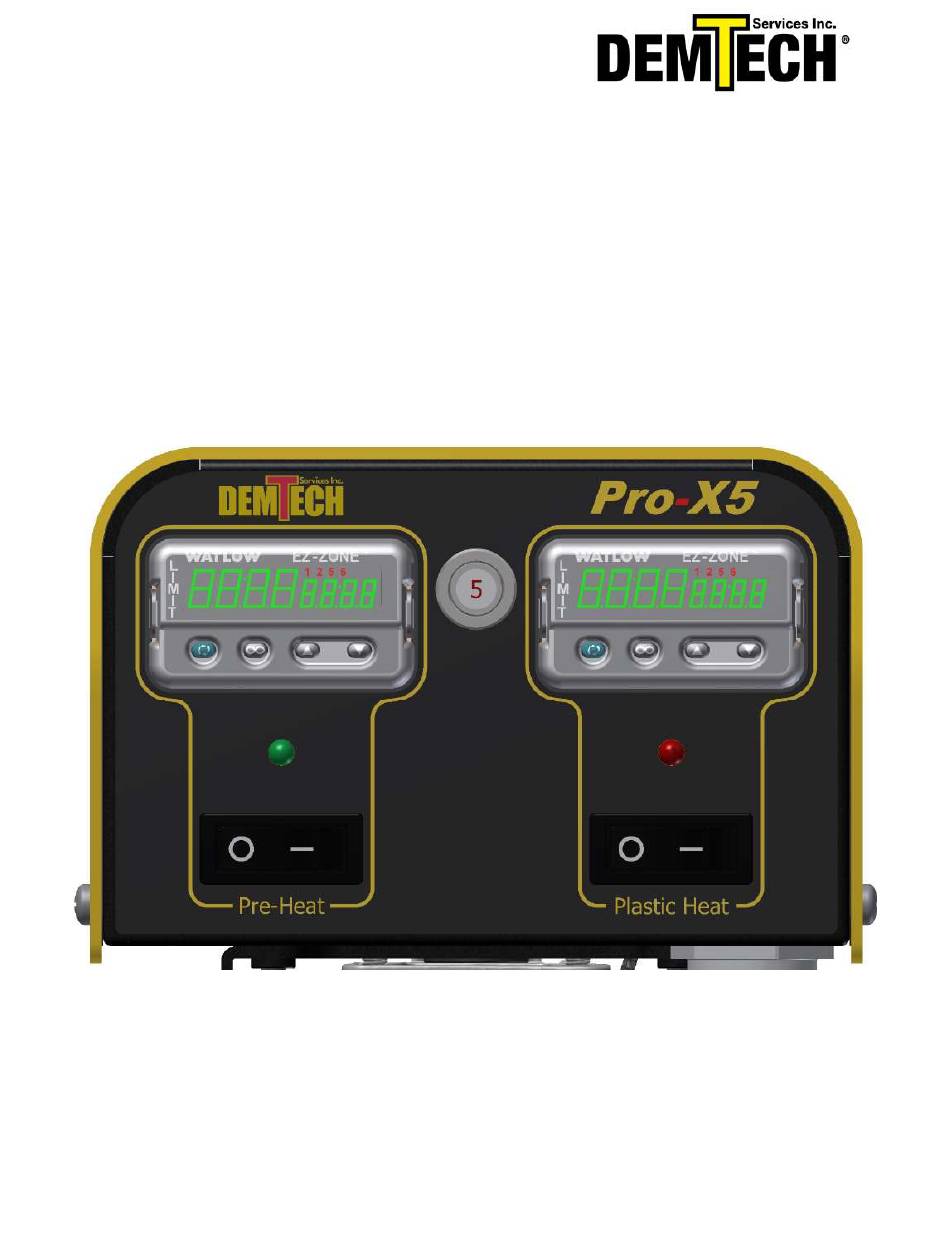

The Pro-X5 utilizes two temperature controllers located on the main control panel. The left
controller operates the Pre-Heat temperature and the right controller operates the Plastic Heat
(Barrel/molten rod) temperature (see Figure 6.1).
Figure 6.1
600-Manual_Pro-X5 RA.docx
Pro-X5 Operator's Manual
Page 9
