Tools Required For Assembly; Hardware Included For Assembly; Step 1 - RightAngle R-Style Beam Assembly Instructions

Tools Required for Assembly

A. Power Driver with Adjustable Torque
B. #2 Phillips Head Driver Bit
C. #2 Square Head Drive Bit
D. Level

Hardware Included for Assembly

E. M6 x 1/2" Machine Screw x4
F. 10 x 5/8" Round Washer Wood Screw x6
G. 3/16" x 3/4" Wood Screw x3
H. M6 x 9/16" Black Machine Screw x2
5/64" x 1 3/8" Plate x2
I.

Step 1

A B
K&A Manufacturing • 800.298.4351 • www.raproducts.com/install
A
(may have extra)
E

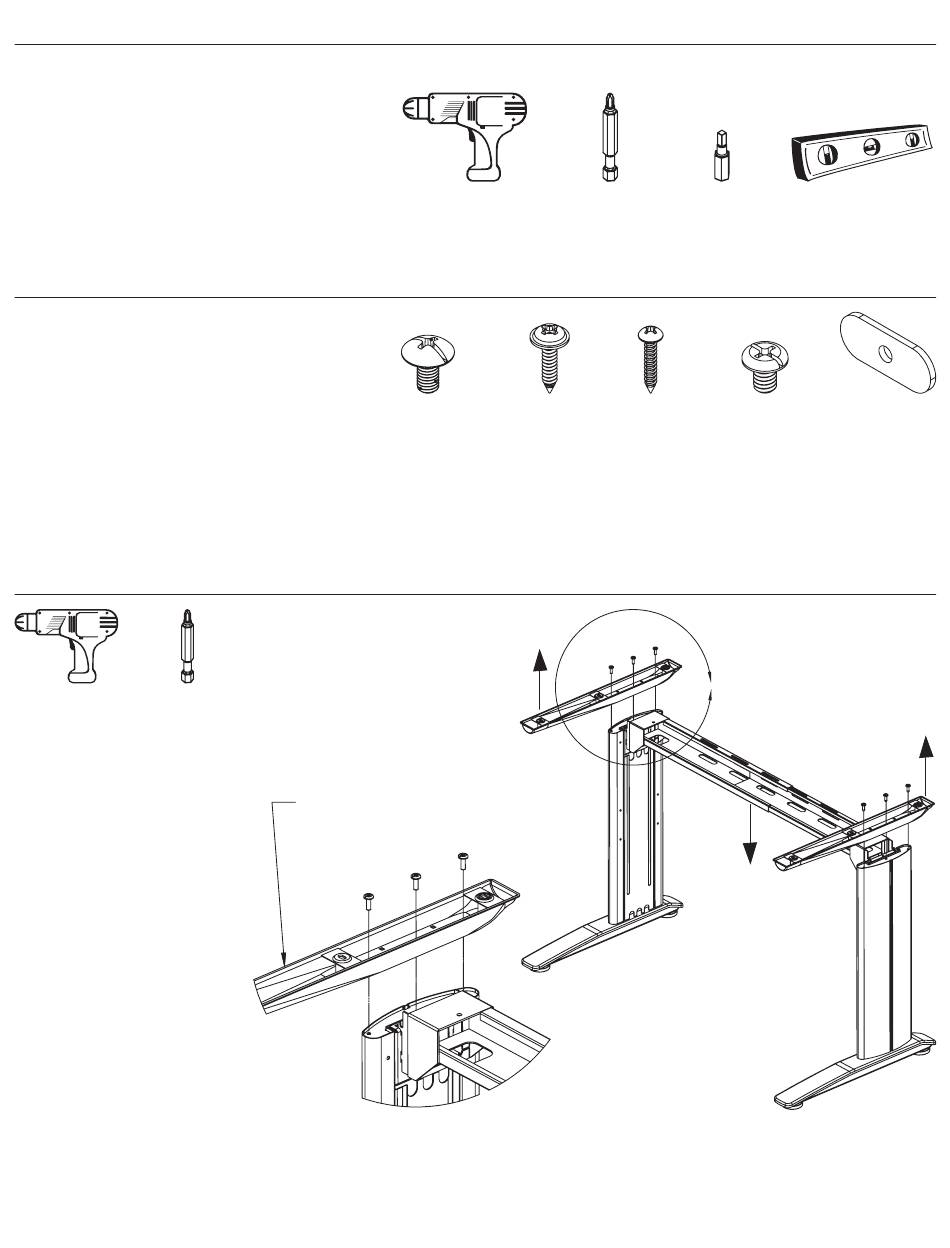

Remove and place beam
into slots on leg columns.
Detail A
B C
F G
A
R-Style Beam #54126
D
H I
2 of 3
