Summary of Contents for RightAngle R-Style Romeo Flip

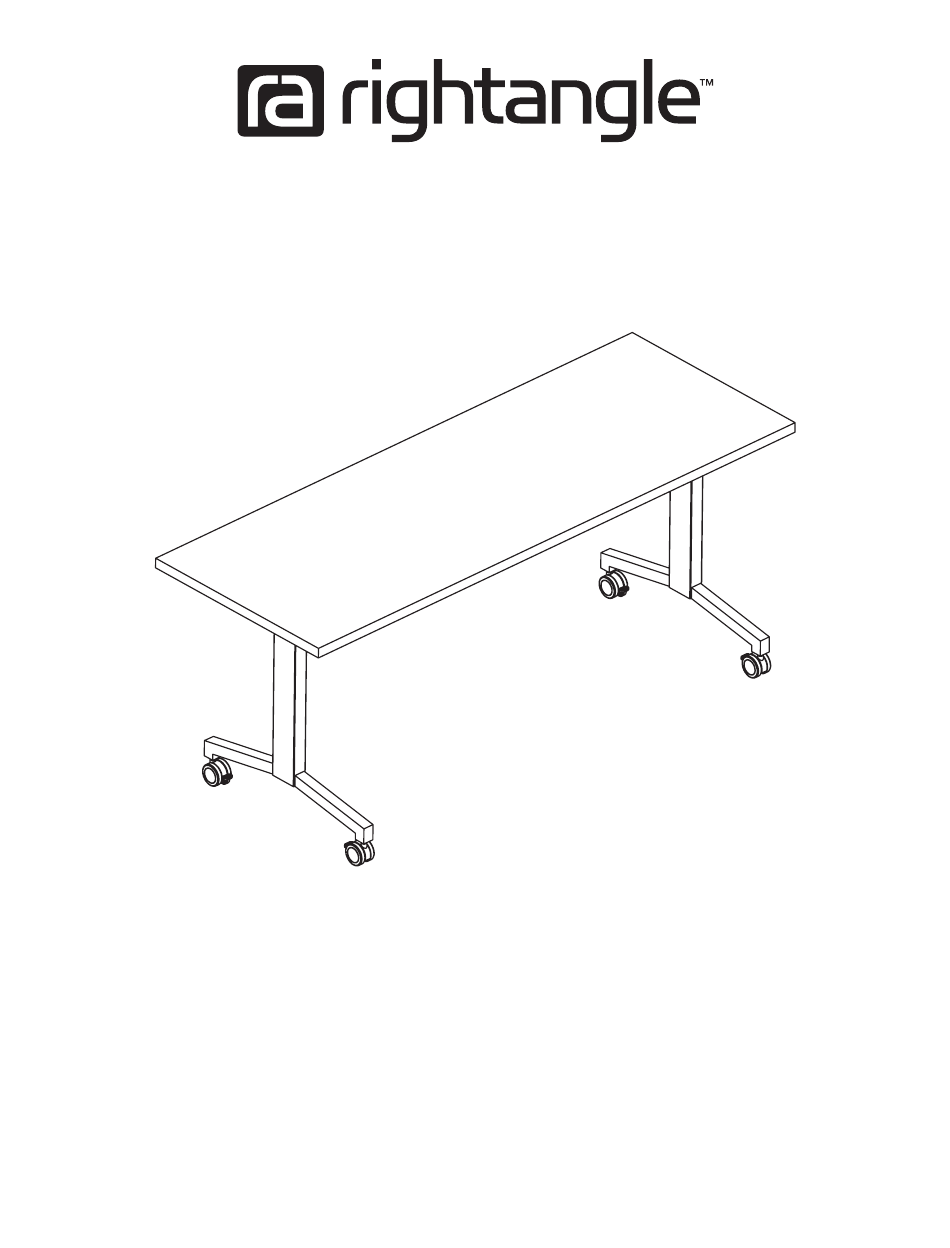

- Page 1 R-Style™ Romeo Flip Assembly Instructions Warranty: raproducts.com/warranty Instruction #54274 • Dated: 06/23/2021 1 of 6...
- Page 2 Tools Required for Assembly A. Power Driver with Adjustable Torque B. Tape Measure C. #2 Square Head Drive Bit (Recommended) D. #2 Phillips Head Driver Bit (Recommended) Hardware and Tools Included for Assembly (may have extra) E. 8mm x .625 Machine Screw x4 8mm x .75 Thread Screw x12 G.
- Page 3 Step 1 • Screw all four leveling nuts onto the caster stems using the caster wrench. Step 2 • Screw the casters onto both leg assemblies. K&A Manufacturing • 800.298.4351 • www.raproducts.com/install 3 of 6...
- Page 4 Step 3 • Lay the beam on a protective surface with the insert channels facing up. • Place one of the leg assemblies over the main beam sliding the insert into the hollow leg assembly. The leg assemblies are interchangeable. •...
- Page 5 Step 5 • Set the left and right hinges on the main beam. • Attach four screws through the hinges and into the main beam. Step 6 • Set the hinge mechanism onto the main beam and attach with four machine screws. •...
- Page 6 Step 7 • Lay the worksurface onto a protected surface with the pilot holes facing up. • Unlock the mechanism until it locks into place by pulling the handle. • Attach the worksurface to the mechanism and both hinges with wood screws. Step 8 •...
