RightAngle NewHeights Series Operation Instructions

K&A MANUFACTURING
6703 ZINSER ST., SCHOFIELD, WI 54476
PHONE: 800.298.4351 FAX: 866.882.9475
www.raproducts.com
VERSION DATED: 10/28/13
4.00
2
4
5
STEPS 1-3
INSTRUCTION # 53089

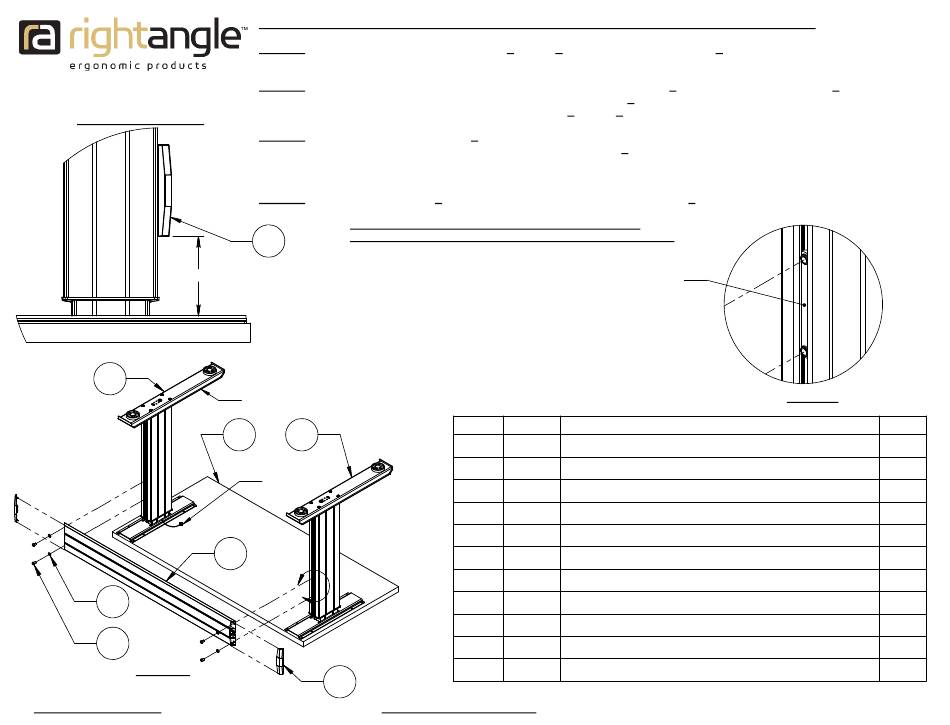

NewHeights SERIES 3.5 ELECTRIC HEIGHT ADJUSTABLE WORKSTATION ASSEMBLY INSTRUCTIONS:
STEP 1: PLACE THE COLUMN ASSEMBLIES 2 AND 3 ON THE WORKSURFACE 1 WITH THE FEET FACING UP. THE
MOTOR WIRES MUST FACE THE INSIDE OF THE WORKSTATION.
STEP 2: WITH THE HELP OF AN ASSISTANT, PLACE (4) LOCK WASHERS 4 ON (4) SOCKET SCREWS 5 . INSERT THESE
THROUGH THE HOLES ON EACH END OF THE CROSS SUPPORT 4 . THREAD THEM INTO THE HOLES IN THE T-SLOT
PLATES PRE-INSTALLED IN THE COLUMN ASSEMBLIES 2 AND 3 . SEE DETAIL A. DO NOT FULLY TIGHTEN.
STEP 3: LEVEL THE CROSS SUPPORT 6 AT 4" FROM THE BOTTOM OF THE WORKSURFACE SUPPORT AS SHOWN IN
THE DETAIL AT LEFT AND FULLY TIGHTEN THE SOCKET SCREWS 5 . SPECIAL EXCEPTION: ON WORKSTATIONS ON
WHICH THE LifeBalance™ STATION IS BEING INSTALLED, THE CROSS SUPPORT SHOULD BE ATTACHED RESTING ON
THE FEET OF THE COLUMN ASSEMBLIES TO ALLOW FOR CLEARANCE OF THE EQUIPMENT.
STEP 4: INSERT (2) END CAPS 7 INTO THE ENDS OF THE CROSS SUPPORT 6 .
READ ALL THE INSTRUCTIONS BEFORE BEGINNING.
DO NOT OPERATE THE UNIT UNTIL ITIS FULLY ASSEMBLED.
6
FEET
1 3
MOTOR
WIRES
6
A
7
HARDWARE PACK # 53090
PRE-INSTALLED
T-SLOT PLATE
ITEM # PART #
1 Varies NewHeights Series 3.5 Worksurface
2 Varies Series 3.5 Left Hand Column
3 Varies Series 3.5 Right Hand Column
4 53025 5/16 Lock Washer
5 53024 5/16-18 x 1/2 Button Head Socket Screw
6 Varies Series 3.5 Cross Support
7 800934 Cross Support End Cap
8 51708 M5 x 18mm Sq/Ph/Wshr Head Wood Screw
9 50285 NewHeights Hand Switch
10 50298 NewHeights Control Box
11 51951 Wire Management J
DETAIL A
DESCRIPTION
PAGE 1 OF 4
QTY
1
1
1
4
4
1
2
23
1
1
Varies
