RightAngle R-Style T-Base Table Assembly Instructions

Advertisement

R-Style T-Base Table Assembly Instructions
Warranty: raproducts.com/warranty
Instruction #51930 • Dated: 07/10/2019
1 of 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R-Style T-Base Table and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for RightAngle R-Style T-Base Table

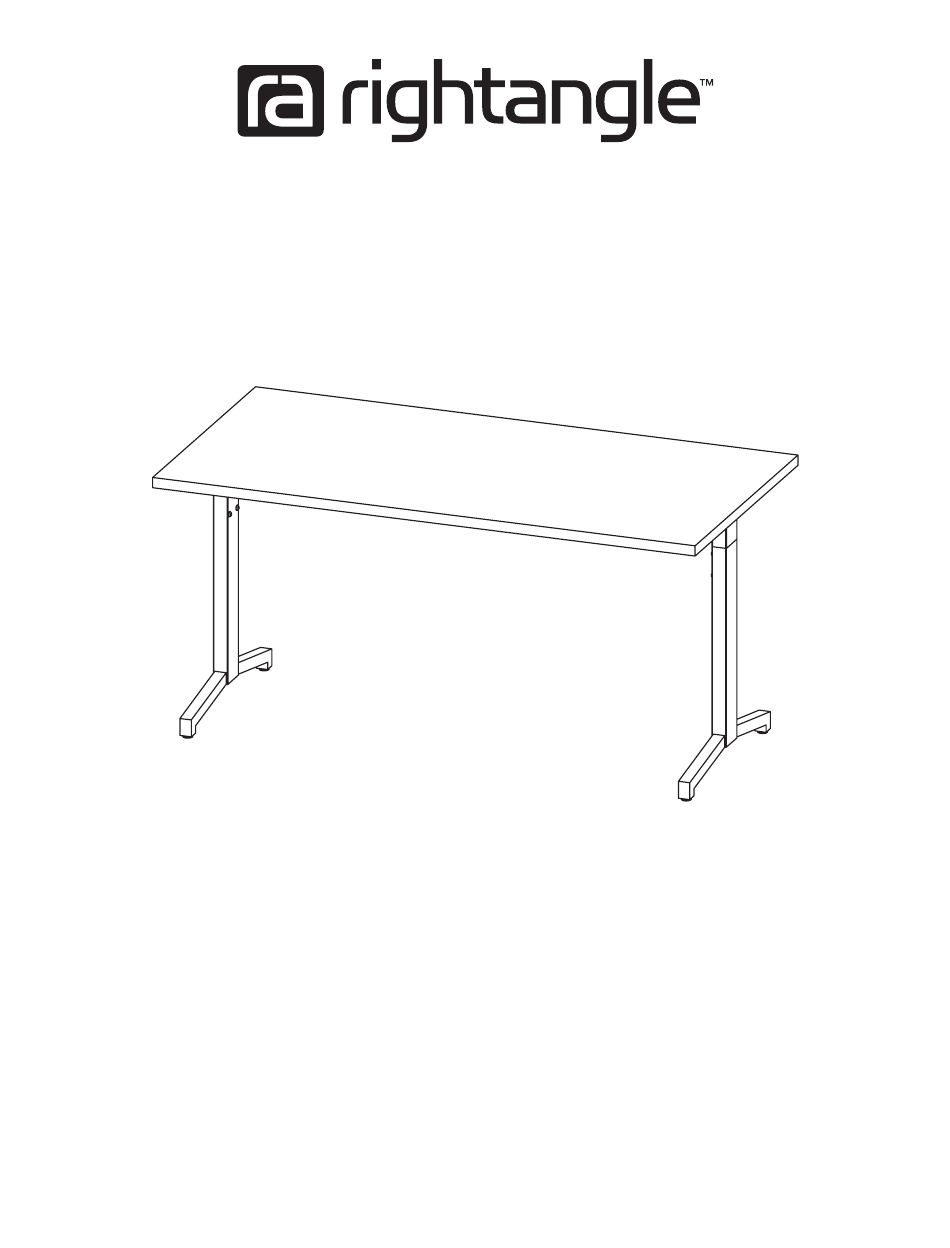

  • Page 1 R-Style T-Base Table Assembly Instructions Warranty: raproducts.com/warranty Instruction #51930 • Dated: 07/10/2019 1 of 4...
  • Page 2 Tools Required for Assembly A. Power Driver with Adjustable Torque B. Tape Measure C. #2 Square Head Drive Bit (Recommended) D. #2 Phillips Head Driver Bit (Recommended) Hardware, Tools and Parts Included for Assembly (may have extra) E. 8mm x .75 Thread Screw x16 5/8”...
  • Page 3 Step 1 • Lay the beam on a protective surface with the insert channels facing up. • Place one of the leg assemblies over the main beam sliding the insert into the hollow leg assembly. The leg assemblies are interchangeable. •...
  • Page 4 Step 3 • Set the hinge mechanism onto the main beam and attach with four machine screws. Step 4 • Lay the worksurface onto a protected surface with the pilot holes facing up. • Attach the worksurface to the mechanism and both hinges with wood screws.
