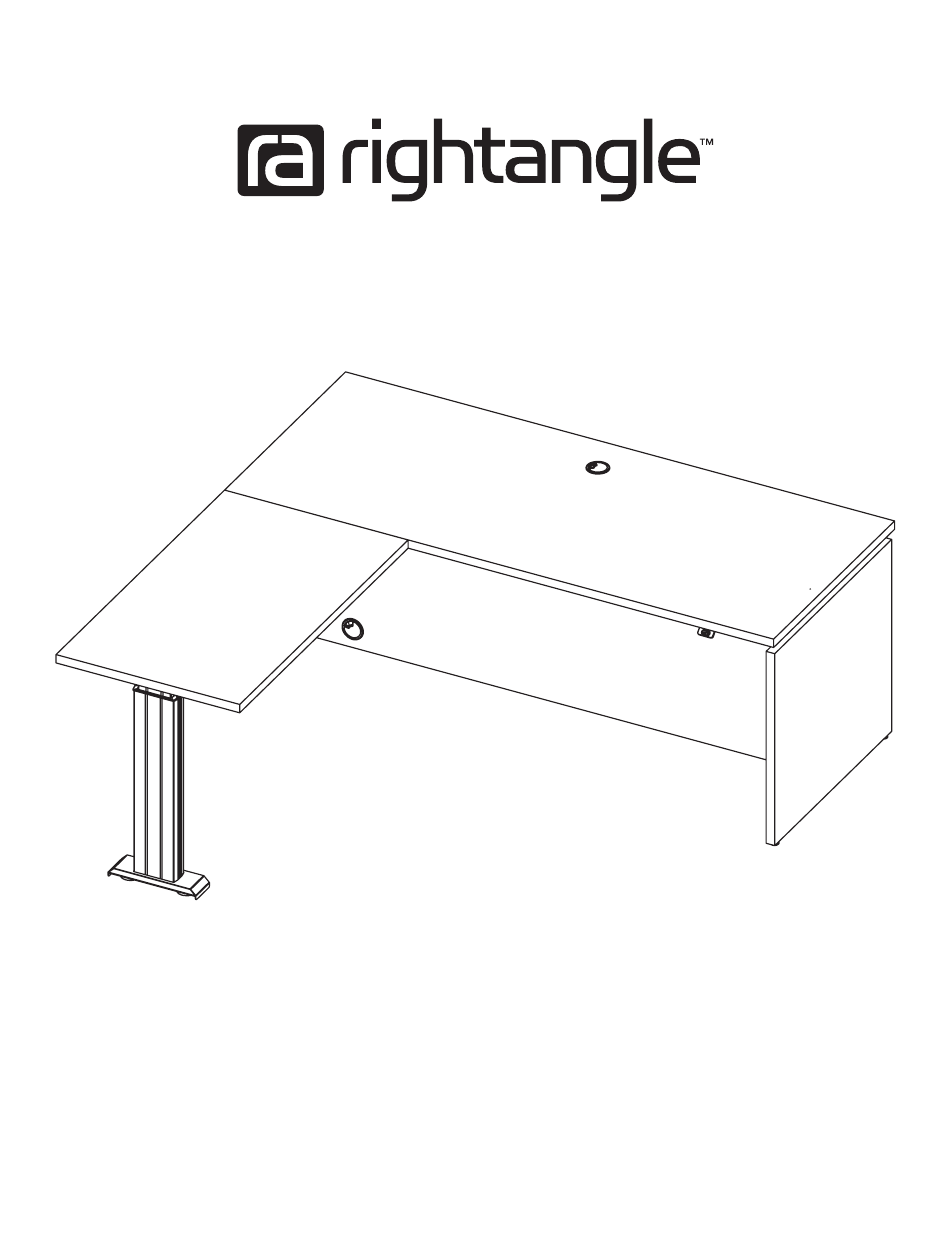

NewHeights™ Presidente Executive 3-Leg
Assembly Instructions
Warranty: raproducts.com/warranty
Instruction #54261 • Dated: 04/5/2019
1 of 15

Advertisement

loading
Need help?

Need help?

Do you have a question about the NewHeights Presidente and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for RightAngle NewHeights Presidente

  • Page 1 Assembly Video: https://youtu.be/AzcN2S43ub0 NewHeights™ Presidente Executive 3-Leg Assembly Instructions Warranty: raproducts.com/warranty Instruction #54261 • Dated: 04/5/2019 1 of 15...
  • Page 2 Any different use, or use extending beyond the intended use, may result in property damage or bodily injury and is pro- hibited. This Product should not be used, operated or maintained with additional components not authorized by RightAngle Products.
  • Page 3: Tools Required For Assembly

    Tools Required for Assembly Assembly Requires Two People A. Power Driver with Adjustable Torque B. #2 Phillips Head Driver Bit C. #2 Square Head Drive Bit D. 3/16” Hex Head Driver Bit or Allen Wrench E. 3/16” Allen Wrench Phillips Screwdriver Hardware Included for Assembly (may have extra) G.
  • Page 4 Step 1 Back Panel (Inside) Kick Panel (Inside) Step 2 Install levelers Install levelers Left Side Panel Right Side Panel K&A Manufacturing • 800.298.4351 • www.raproducts.com/install 4 of 15...
  • Page 5 Step 3 Note: Use Upper Most Pilot Hole Step 4 • Tighten cams to Left Side join side panels to Panel back panel. Back Panel Right Side Panel K&A Manufacturing • 800.298.4351 • www.raproducts.com/install 5 of 15...
  • Page 6 Step 5 • Slide the weld nuts on the side brackets into the grooves at the front of the columns. Step 6 • Drive the wood screws into the pilot holes. Then tighten the machine screws. Left hand shown. Right hand same. K&A Manufacturing •...
  • Page 7 Step 7 • Tighten camlocks through holes in kick panel. Reversed direction. Back Panel Counter Clockwise = Tighten Clockwise = Loosen Kick Panel Step 8 • Slide the cross braces between the back panel and kick panel under the slim fix bolts. •...
  • Page 8 Step 9 Note: refer to modesty panel instruction #53901 • Install switch, u-channel plates, and control box on the bottom of the worksurface. • Note: Install modesty panel (optional). Refer to modesty panel instruction #53901. Table will NOT operate unless the control box is screwed tight into the table without any play.
  • Page 9 Step 11 • Just run the cables into the control box. They will get connected into the legs after Step 13. Wiring Diagram Motor Cable Motor Power Cord Cable Switch Motor Cable Cable Power Cord Motor Input Control Box Switch End View Input Motor...
  • Page 10 Step 12 • Set the main worksurface onto the main base. • Attach each side with two screws as shown. • After the unit is raised, put in all the leg support screws. Step 13 • Attach the small worksurface to the main base with eight screws through plates T.
  • Page 11 Step 14 • Attach the second u-channel to the worksurface using the screws as shown. Step 15 • Follow the start-up procedure on page 14. Then raise the table up using the switch. • Attach the remaining screws from the leg supports into the worksurafce.
  • Page 12 Step 16 • Install divider cover and worksurface grommet insert. Note: return worksurface NOT shown for assembly clarification. Step 17 • Lower table to lowest position to reset. K&A Manufacturing • 800.298.4351 • www.raproducts.com/install 12 of 15...
  • Page 13: Standard Switch

    - To delete the lower container stop press You will hear a musical tone. Troubleshooting: If you are having any problems with the operation, contact RightAngle Products at 800.298.4351 or orders@raproducts.com K&A Manufacturing • 800.298.4351 • www.raproducts.com/install 13 of 15...
  • Page 14 Optional Programmable Switch (full instructions packaged with switch) Start Up Procedure: • Plug the power cord into a standard 110V receptacle. A power surge protector is recommended. • Press the down arrow until the worksurface reaches its lowest position. • The workstation is ready for use. •...
  • Page 15 Mechanical Reset Mode If the table is unresponsive, uneven, or not functioning properly, perform a manual reset. User settings are not reset in this process. There are three methods to reset a workstation: Reset Method A 1. Clear all obstructions from the travel path of the workstation 2.
