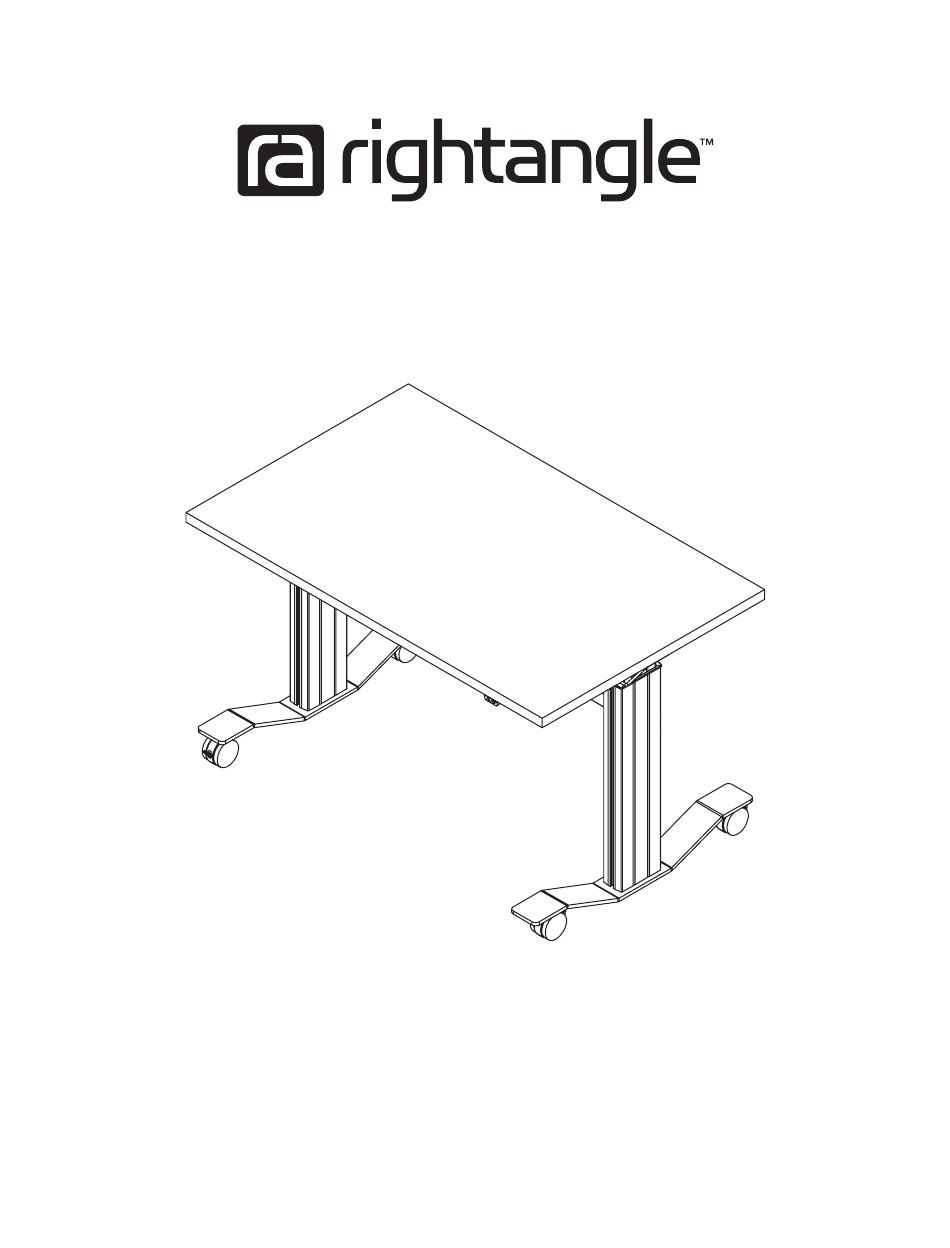

NewHeights™ Series 4 Eficiente LT Flip
Workstation Assembly Instructions
Warranty: raproducts.com/warranty
Instruction #53430 • Dated: 02/21/2019
1 of 12

Advertisement

loading
Need help?

Need help?

Do you have a question about the NewHeights 4 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for RightAngle NewHeights 4 Series

  • Page 1 NewHeights™ Series 4 Eficiente LT Flip Workstation Assembly Instructions Warranty: raproducts.com/warranty Instruction #53430 • Dated: 02/21/2019 1 of 12...
  • Page 2 READ ALL INSTRUCTIONS BEFORE USING THIS PRODUCT. USE THIS PRODUCT ONLY AS INSTRUCTED. FAILURE TO COMPLY WITH ALL INSTRUCTIONS AND WARNINGS MAY RESULT IN SERIOUS PROPERTY DAMAGE OR BODILY INJURY. WARNING Basic Safety Instructions Intended Use. This Product is exclusively designed for use as indoor office furniture in compliance with all instructions and safety warnings in the user manual.
  • Page 3: Tools Required For Assembly

    Tools Required for Assembly A. Power Driver with Adjustable Torque B. #2 Phillips Head Driver Bit C. #2 Square Head Drive Bit (Recommended) D. 3/16” Allen Wrench E. Adjustable Wrench Tape Measure Hardware and Tools Included for Assembly (may have extra) G.
  • Page 4 Any different use, or use extending beyond the intended use, may result in property damage or bodily injury and is pro- hibited. This Product should not be used, operated or maintained with additional components not authorized by RightAngle Products.
  • Page 5 The following instruction illustrates a RightAngle manufactured base and worksurface. If your worksurface is from another manufacturer, you are responsible for the base and worksurface hole alignment. Step 1 • Insert hex rod through motor and into column. • Open the flip mechanism...
  • Page 6 Step 3 • Tighten set screws in ends of pull tube. Step 4 Double check the cross support location. It must be square with both columns. After the cross support is leveled and fastened, tighten all the screws. Insert Detail C end caps.
  • Page 7 Step 5 • Screw to worksurface. • Four in each flip mechanism. • Do not tighten screws until cross support is installed. Step 6 • Tighten the screws just enough so the pull mechanism is able to slide in and out. Tighten all the screws to the worksurface.
  • Page 8 Step 7 • Install switch, control box, clips, and plastic wire management. Note: the control box, switch and clips can Control Box Orientation be installed in any location, wire must be mounted this way lengths permitting. Control box can be relocated but the orientation of the box must remain the same.
  • Page 9: Cable Routing Diagram

    Step 9 Motor Cable Switch Cable Cable Routing Diagram Power Cable Power Cable Motor Cable Control Box End View Switch Cable Caution: For the safety of the user and the workstation; the control box contains an internal sensor that is sensitive to movement, vibration, and collision.
  • Page 10: Standard Switch

    - To delete the lower container stop press You will hear a musical tone. Troubleshooting: If you are having any problems with the operation, contact RightAngle Products at 800.298.4351 or orders@raproducts.com K&A Manufacturing • 800.298.4351 • www.raproducts.com/install 10 of 12...
  • Page 11 Optional Programmable Switch (full instructions packaged with switch) Start Up Procedure: • Plug the power cord into a standard 110V receptacle. A power surge protector is recommended. • Press the down arrow until the worksurface reaches its lowest position. • The workstation is ready for use. •...
  • Page 12 Mechanical Reset Mode If the table is unresponsive, uneven, or not functioning properly, perform a manual reset. User settings are not reset in this process. There are three methods to reset a workstation: Reset Method A 1. Clear all obstructions from the travel path of the workstation 2.
