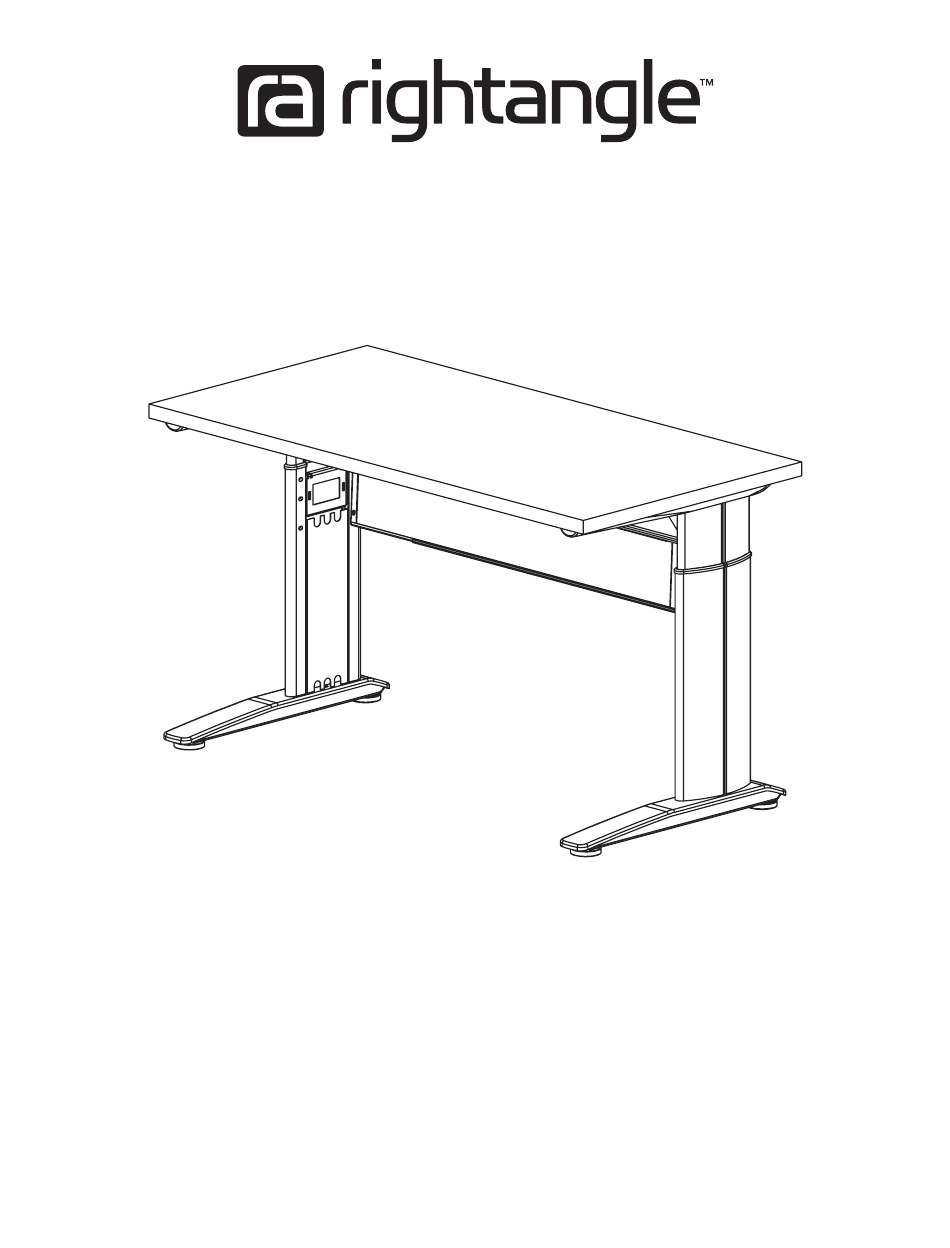

- Page 1 R-Style Screw Height Adjustable Assembly Instructions Warranty: raproducts.com/warranty Instruction #54129 • Dated: 06/6/2018 1 of 4...
- Page 2 Tools Required for Assembly R-Style Screw Height Adjustable 54129 A. Power Driver with Adjustable Torque B. #2 Phillips Head Driver Bit C. Level D. Tape Measure Hardware Included for Assembly (may have extra) E. M6 x 1/2” Machine Screw x4 M6 x 9/32”...
- Page 3 Step 1 R-Style Screw Height Adjustable 54129 • Remove and place beam into slots on the leg columns. Detail A Step 2 • Install wood screws. • Install machine screw and Spread beam to align plate for final adjustment. holes at top of legs with inserts in worksurface.
- Page 4 Step 3 R-Style Screw Height Adjustable 54129 • Install the machine screws into the legs and panel hardware. Spread stability panel to fit between legs. Detail B Step 4 • Install wood screws and tighten. If you have optional threaded inserts in your worksurface, refer to the insert instruction #54134.
