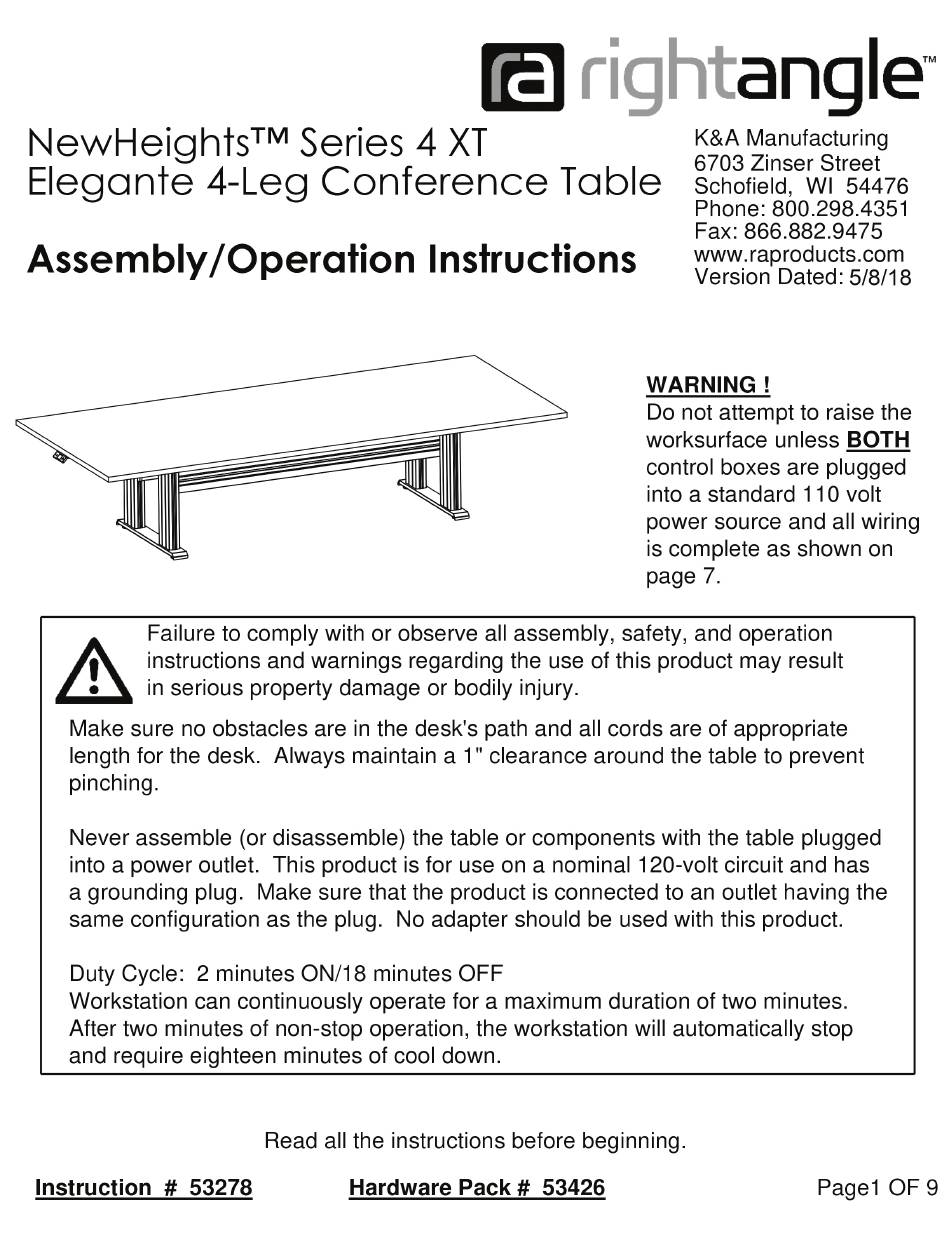

Summary of Contents for RightAngle NewHeights 4 XT Series
- Page 3 K&A Manufacturing 6703 Zinser Street Schofield, WI 54476 Phone: 800.298.4351 Fax: 866.882.9475 www.raproducts.com Step 1: Lay the worksurface 1 on a protected surface with the pilot holes facing up. Align the holes in the worksurface supports with the pilot holes in the worksurface. Be careful to not pinch the motor wires between the motor boxes and the work- surface.
- Page 4 Step 2: Adjust one of the wire management channels 4 to align the holes in the channel with the holes on the inside of the motor boxes. Insert (4) socket screws 7 through the holes near the ends of the channel and K&A Manufacturing 6703 Zinser Street Schofield, WI 54476 thread them into the weld nuts on the motor boxes.
- Page 5 Step 3: Place (2) flat washers 11 on (2) machine screws 9 . Thread these into the cage nuts pre-installed in the inner wire management channels and fully tighten. There K&A Manufacturing are (4) cage nuts in each inner wire management channel. 6703 Zinser Street Schofield, WI 54476 Phone: 800.298.4351 Use any (2) cage nuts that are accessible.
- Page 6 Step 5: With the help of an assistant align one of the cross support with the stickers on both leg assemblies. See below. Insert (4) socket screws 7 through the holes in the ends of the cross support 5 and thread them into the weld nuts that are held in place by the stickers.
- Page 9 Costs incurred due to product replacement such as installation labor or transportation are not covered under this warranty. When corresponding with RightAngle™ products, record and provide the model and serial numbers located on the control box. Instruction # 53278...
