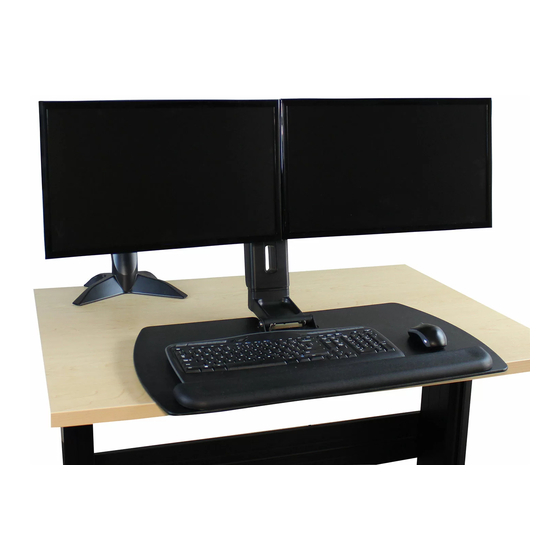

RightAngle Hover Helium Junior Assembly Instructions

Standing Desk
Converter DUAL
Monitor Assembly
Instructions
Included:
2.5mm Allen Wrench
5mm Allen Wrench
6mm Allen Wrench
Tools
Required for
Assembly:

Hardware (may have extra)

M6 x10
Machine Screw x7 Flat Head Machine Screw
1
19mm Nylon 19mm Steel
Washer x1 Washer
4
M6 x18 53580 8-32 x 1/2
Machine Screw x4 Machine Screw
7
52443 8-32 x 1/2 52127 M4-.7 x 10
Machine Screw x3 Machine Screw
10
Included:
8mm 1/4"
Drive Socket
Ratchet ¼"
Phillips drive and
Screwdriver extension
M6 x16 M8 x65
x4 Machine Screw
2
M8 x20
x1 Machine Screw x1
5 6
53648 8-32 Serrated
x4 Flange Nut x4
8 9
M6-1 x10
x8 Machine Screw
11 12
Instruction #53873 Dual • Dated: 12/2/2016
5mm
x1
3
M6 x10
Machine
Screw x4
1
These screws first;
then the clamp.
x2
Moving parts without advanced notice can
result, crush and cause personal injury!
Be cautious when handling.
Make sure the depth of desk is compatible
to the optional sit-stand base intended to
be installed. Fail to follow the criteria shall
result in collision or personal injury.
Clamp 1a
Grommet 1b
2
M6 x16
Flat Head
Machine
Flat Head Machine
Screw x4
Adapter
Plate
2
M6 x16
Screw x4
Grommet
Clamp
3
M8 x65
Machine
Screw x1
