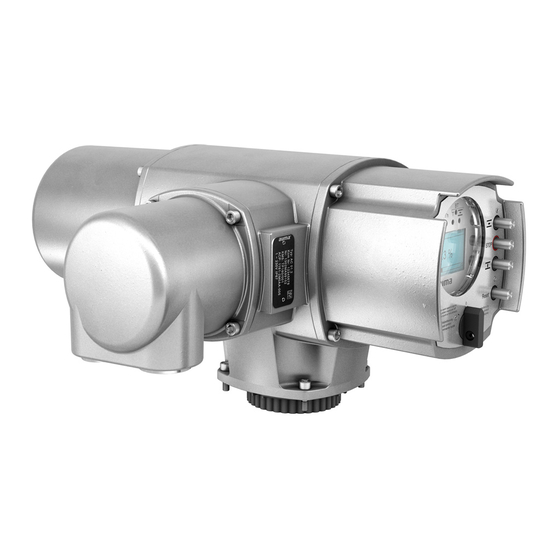

AUMA AUMATIC AC 01.1 Short Instructions
Actuator controls, profibus dp
Hide thumbs
Also See for AUMATIC AC 01.1:
- Manual (112 pages) ,
- Operation instructions manual (20 pages) ,
- Manual (48 pages)
Subscribe to Our Youtube Channel
Related Manuals for AUMA AUMATIC AC 01.1
Summary of Contents for AUMA AUMATIC AC 01.1

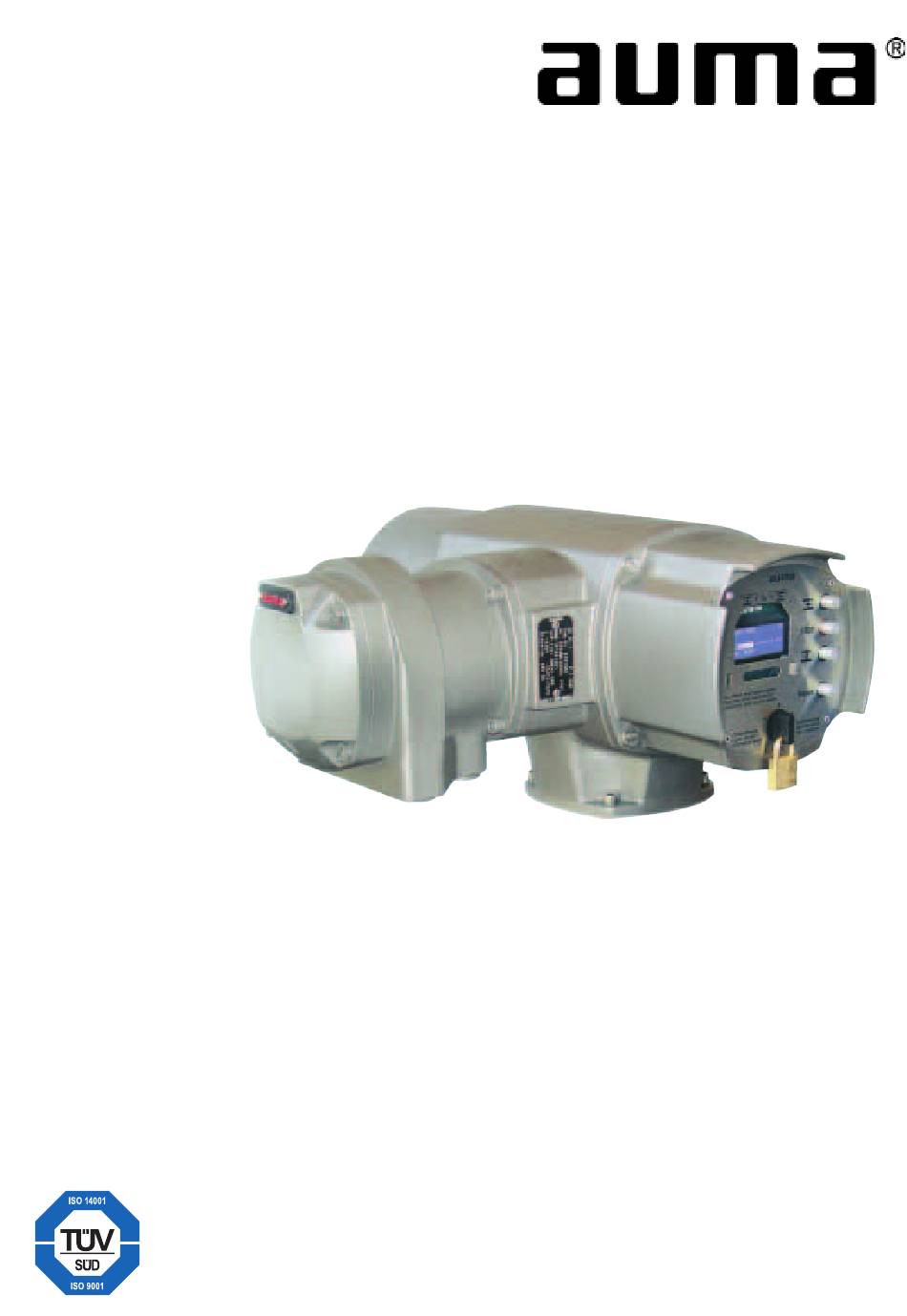

- Page 1 Actuator controls AUMATIC AC 01.1 ACExC 01.1 Profibus DP Short instructions bus connection Certificate Registration No. 12 100/104 4269...
-
Page 2: Table Of Contents
SA(R) 07.1 – SA(R) 16.1 and SA(R)ExC 07.1 – SA(R)ExC 16.1 as well as for part-turn actuators of the type ranges SG 05.1 – SG 12.1 and SGExC 05.1 – SGExC 12.1 with the controls AUMATIC AC 01.1 or ACExC 01.1 with Profibus DP interface. Table of contents... -
Page 3: Safety Instructions
“Warning” marks activities or procedures which, if not carried out correctly, can affect the safety of persons or material. Short description AUMA actuators have a modular design. Motor and gearing are mounted in a common housing. The actuators are driven by an electric motor and controlled with the elec- tronic controls AUMATIC. -
Page 4: Electrical Connection
The wiring diagram applicable to the actuator is attached to the handwheel in a weather-proof bag, together with the operation instructions. In case 51.0 the wiring diagram is not available, it can be obtained from AUMA (state Mains commission no. refer to name plate) or downloaded directly from the cable Internet (www.auma.com). -
Page 5: Fitting Of The Connection Housing
Actuator controls AUMATIC AC 01.1 / ACExC 01.1 Short instructions Profibus DP Fitting of the connection After mains connection: housing Insert the socket carrier (51.0) into the plug cover (50.0) and fasten it with screws (51.01). Clean sealing faces at the connection housing and the actuator housing. - Page 6 Actuator controls AUMATIC AC 01.1 / ACExC 01.1 Profibus DP Short instructions Figure C-1: Connection board (standard) Figure C-2: Connection board (for overvoltage protection) Bus termination Bus termination Channel 1 Bus termination Channel 1 Channel 2 Figure C-3: Connection (standard)
-
Page 7: Mains And Bus Connection For Explosion-Proof Version
Actuator controls AUMATIC AC 01.1 / ACExC 01.1 Short instructions Profibus DP 3.5.2 Mains and bus connection for explosion-proof version For version with FO (fibre optics) refer to separate operation instructions “AUMATIC ACExC 01.1 FO connection”. When working in potentially explosive areas, observe the European Standards EN 60079-14 “Electrical Installations in... - Page 8 Cross section max. 6 mm 6 mm 1.5 mm Material: Pin / socket carrier Araldite / Polyamide Araldite / Polyamide Araldite / Polyamide Contacts Brass (Ms) Brass (Ms) Brass (Ms) tin-plated 1) Suitable for copper wires. For aluminium wires contact AUMA.
-
Page 9: Bus Cables
Actuator controls AUMATIC AC 01.1 / ACExC 01.1 Short instructions Profibus DP 3.5.3 Bus cables Only cables according to standard DIN 19245 or EN 50170-2, cable type A, may be used for Profibus DP wiring. A maximum of up to 32 Profibus devices may be connected in one segment. -
Page 10: Setting The Profibus Dp Address Via Local Controls
Actuator controls AUMATIC AC 01.1 / ACExC 01.1 Profibus DP Short instructions Setting the Profibus DP address via local controls This clause only describes the setting of the actuator address (slave address). For further detailed instructions on the indication, operation and setting of the AUMATIC refer to the operation instructions of the actuator (multi-turn actuator SA(R) …... - Page 11 Actuator controls AUMATIC AC 01.1 / ACExC 01.1 Short instructions Profibus DP Figure ENTER PASSWORD 0 * * * :EDIT C:ESC With the push-buttons the value of the selected position can be changed. To accept the input and move to the next digit, press push-button proceed until all password digits are entered.
-
Page 12: Redundant Bus Connection With Component Redundancy (Option)
Actuator controls AUMATIC AC 01.1 / ACExC 01.1 Profibus DP Short instructions Redundant bus connection with component redundancy (option) The AUMATIC can be equipped with a second (redundant) Profibus inter- face. In this version, communication to the actuator can be established simultaneously through both Profibus interfaces. -
Page 13: Description Profibus Dp Interface
Actuator controls AUMATIC AC 01.1 / ACExC 01.1 Short instructions Profibus DP Description Profibus DP interface Figure P: Profibus DP interface SYSTEM OK (V1) DATA EX (V2) CAN STATE (V3) STATE (V4) Table 6: DIP switch S1: Configuration of the Profibus DP board... -
Page 14: Assignment Of The Customer Inputs Of The Profibus Dp Interface (Option)
Actuator controls AUMATIC AC 01.1 / ACExC 01.1 Profibus DP Short instructions Assignment of the customer inputs of the Profibus DP interface (option) This plug provides pins for 4 digital customer inputs and 2 analogue customer inputs. Table 7: Digital inputs (galvanically isolated) -
Page 15: Appendix A Connection Of The Screen For Aumatic Acexc
Actuator controls AUMATIC AC 01.1 / ACExC 01.1 Short instructions Profibus DP Appendix A Connection of the screen for AUMATIC ACExC 01.1 The screen of the fieldbus cable should be extensively connected with the respective threads. Recommended threads, e.g. WAZU-EMV/EX by Hugro... - Page 16 +49 7631 - 809-0 +49 711 - 34803 0 +49 7631 - 809 1250 +49 711 - 34803 34 Certificate Registration No. 12 100/104 4269 riester@auma.com riester@wof.auma.com www.auma.com www.auma.com For detailed information on AUMA products refer to the Internet: Y001.311/003/en/1.08 www.auma.com...
