Fitting The Casings - vimec V65 B.I. Original Instructions Manual

- Check on fixing of the rail
- Check that the rail is positioned in accordance with
the dimensions stated in the installation drawing (or
system layout) supplied with the stairlift.
- Check that all the fixing screws of the connections
to the mounts or any expansion plugs are stable and
firmly tightened.

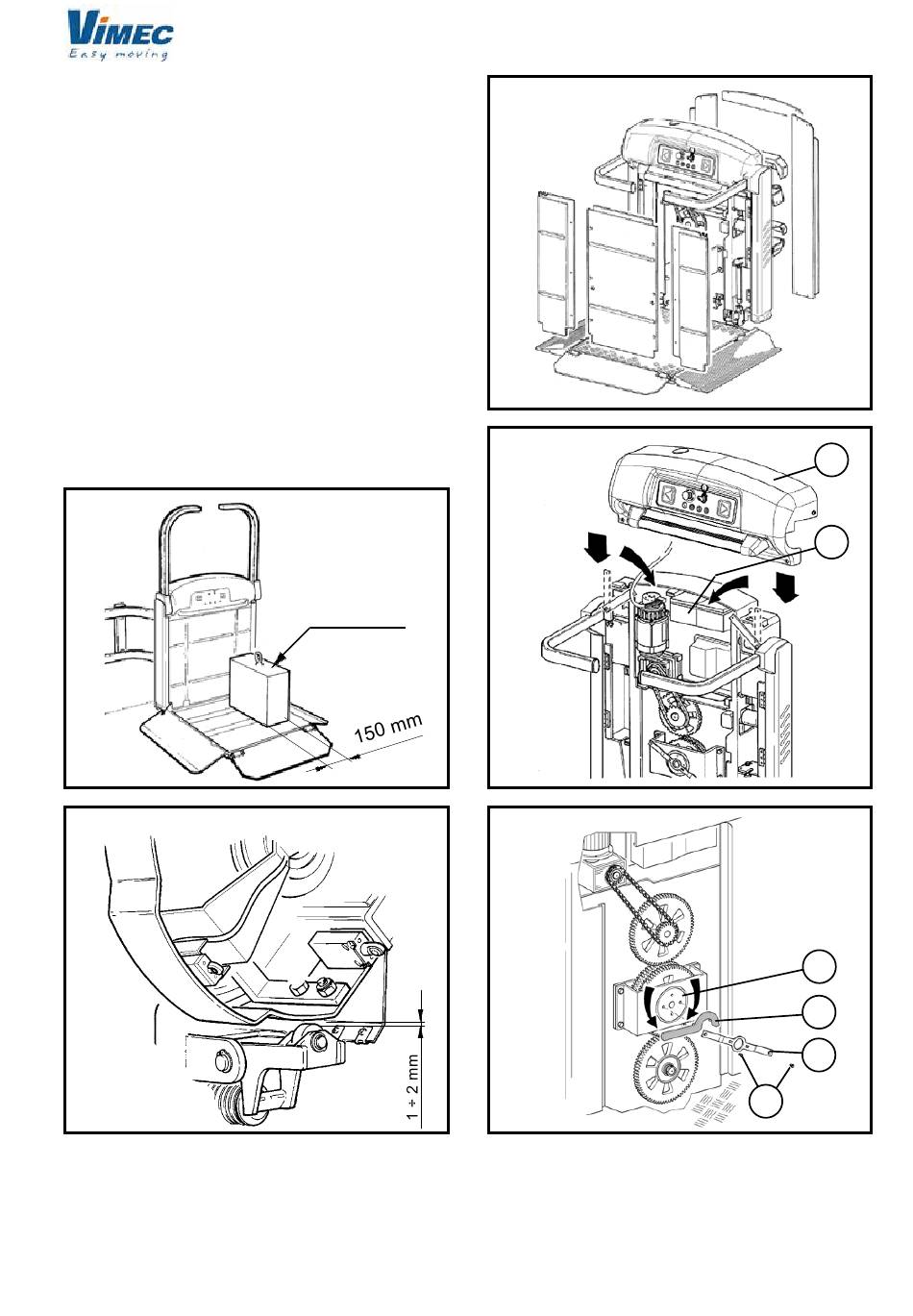

21) FITTING THE CASING (Fig. 65-66)
Fit the upper casing (Fig. 66/a) on the stairlift, connec-
ting the connector (Fig. 66/b) and using the screws
provided.
Fit all the stairlift casing sections as shown in the overall
drawing supplied with the stairlift, taking care not to
crush any electrical wires or moving parts.
FIG.63
FIG.64
250 kg
41
FIG.65
FIG.66
FIG.67
a
b
b
c
a
d
