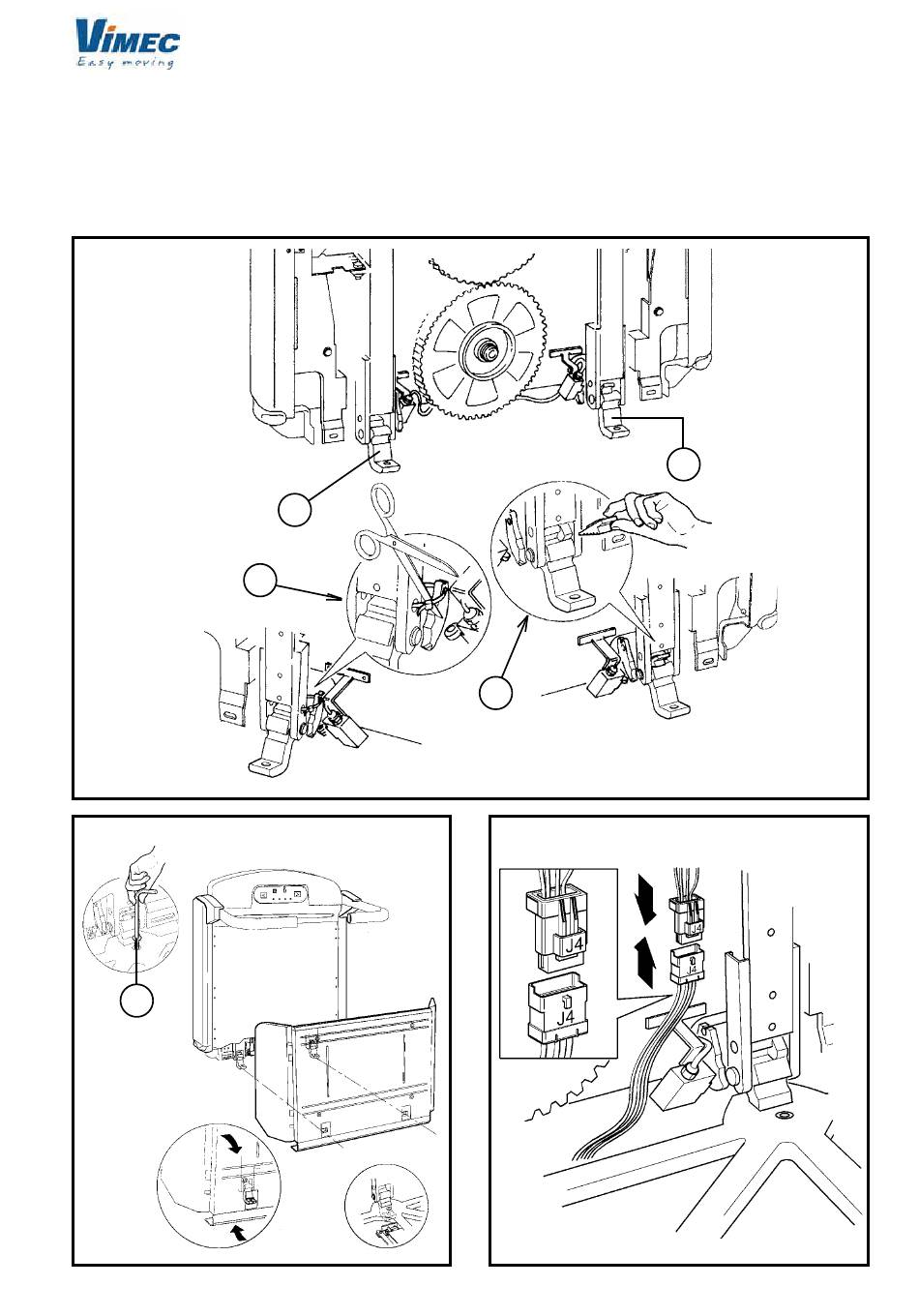

11) ASSEMBLING THE PLATFORM

a) Remove the top plate from the platform by undoing
the screws provided.
b) Make sure that the two platform supports, fixed by a
wedge and a plastic clamp, are in the assembly position
(Fig. 46/a,b).
FIG.46
FIG.47
a
b
c
c) Fit the platform, keeping it vertical and turning it
through 90° as shown (Fig. 47).
d) Fix the platform to the frame using the TSPCE M8
flat head screws provided (Fig. 47/a).
e) Plug in the connector j4 (Fig. 48).
d
FIG.48
