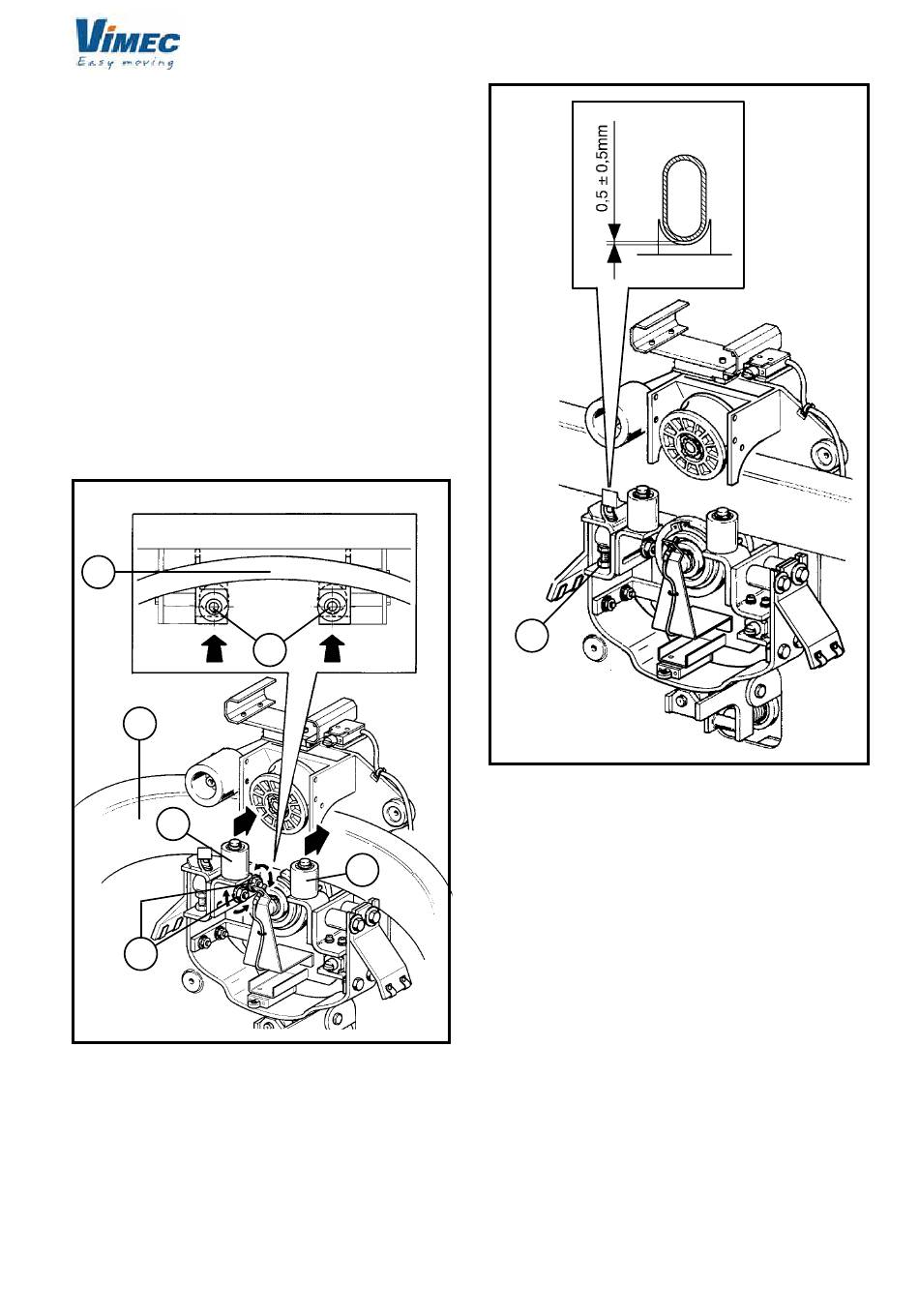

15) ADJUSTING THE BEND ROLLERS
FIG.57
Working on the bend with the lowest gradient (Fig. 56/a)
set the bend rollers in contact with the rail (Fig. 56/b).
After adjustment, tighten the roller fixing screws (Fig.
56/c) to a torque of 2 daNm.
This adjustment will be maintained for the other bends.
Check that the stairlift travels smoothly, with no bumps
or vibrations on the bends.
16) ADJUSTING THE GUIDE SHOE SUPPORTS
Use the screw (Fig. 57/a) to adjust the guide shoe
supports to obtain a gap of 0.5 ± 0.5 mm between the
guide shoe and rail (see Fig. 57).
FIG.56
a
a
b
a
b
b
c
