17) FITTING THE OVER-RUN DEVICE CAMS

- Set the stairlift in the stop position (Fig. 58/a - 59/a)
and mark the position of the stairlift's centre-line on the
rails (Fig. 58/b - 59/b).
- Move the stairlift.

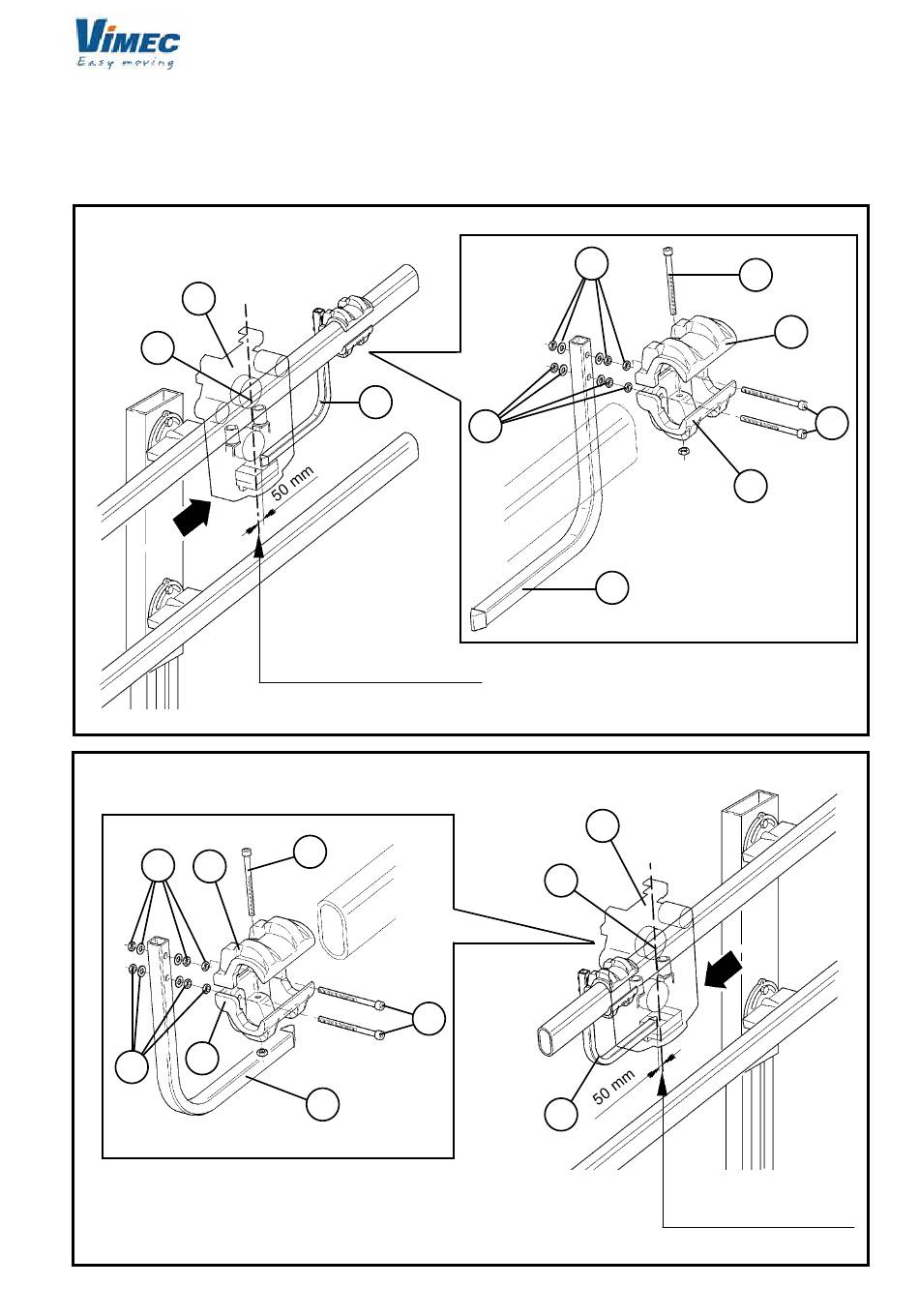

FIG. 58
a
b
FIG. 59
c
d
d
c
e
Machine centre line axis
c
c
e
- Fix the cam (Fig. 58/e - 59/e), on the rail 50 mm from
the stairlift's centre-line marked earlier.
- Tighten all screws when done.
c
c
e
a
b
e
39
c
d
c
d
Machine centre line axis
