N.B.: Move the stairlift up to the 1st rigid connection and
if it is not horizontal, screw down the M10x30 screw
(Fig. 15/a) with washer (Fig. 15/b) onto the clutch
assembly to release the upper tilting device from the
clutch assembly. The gap is correct when the clutch
assembly cam is about 2 mm from the carriage (Fig.
15/c).
- Move the stairlift up a short way to allow it to settle
back into position.
- Undo the screw (Fig. 15/a) and its washer (Fig. 15/b)
to re-engage the clutch plate assembly with the tilting
device.
FIG.31

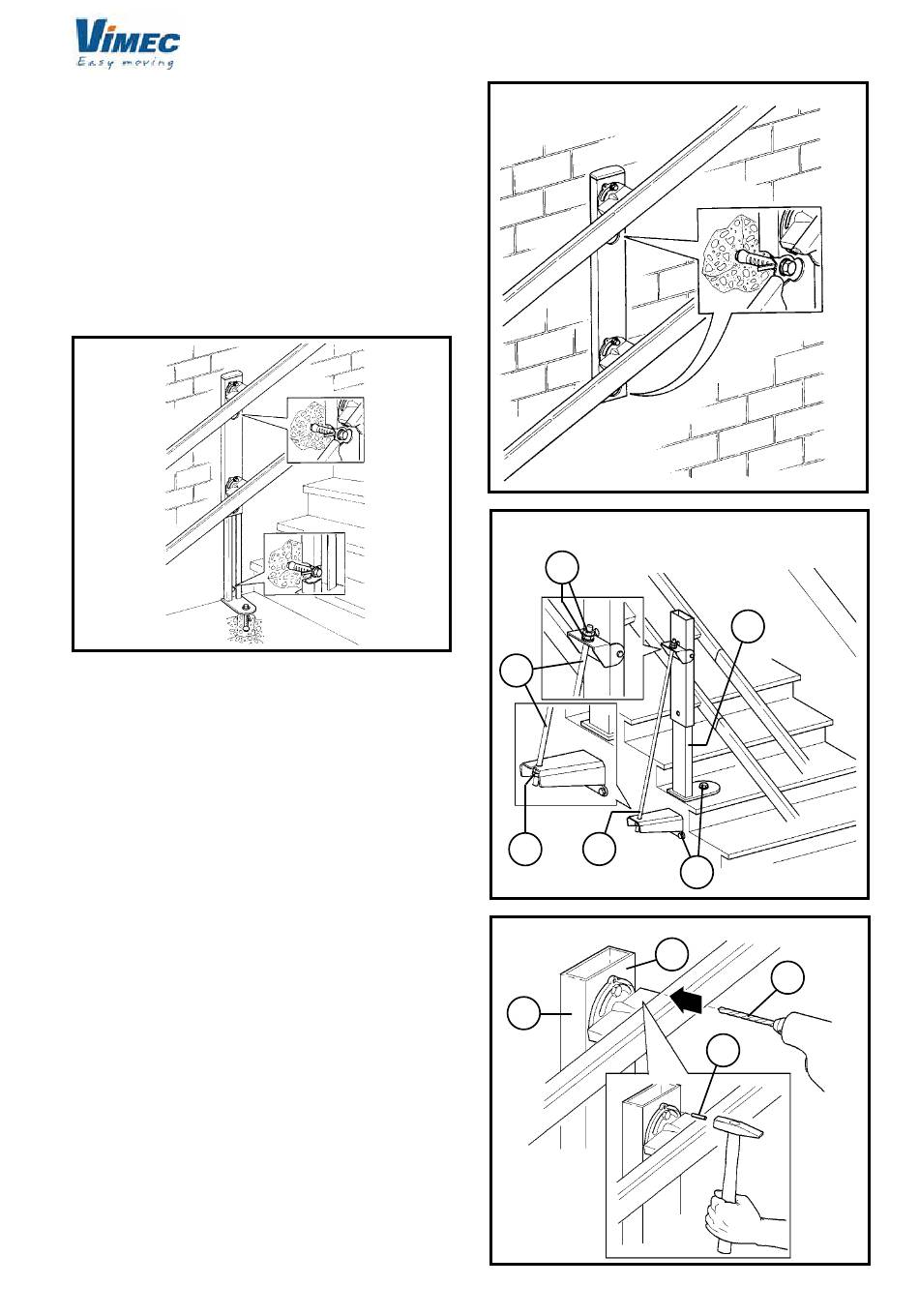

8) FIXING THE CONNECTION FEET
After performing a stairlift trial run to make sure that
everything has been assembled correctly, the next step
is to fix the mounting feet to the floor and the connec-
tions to the wall (where possible, in the latter case).
Depending on the type of foot which appears in the
installation drawing, fit the feet firmly as shown by the
examples below (Fig. 31-32-33).
If the feet are fixed to the step (Fig. 34), drill the holes in
the steps and fix using the screws (Fig. 34/a) supplied.
After the fixing operation, tighten the screws hard (Fig.
34/b).
If the feet have a hinged support (Fig. 33), drill the
holes in the fixing points and fix using the screws (Fig.
33/a) supplied.
Tighten the foot (Fig. 33/c) by fitting the threaded bar
into the holes provided (Fig. 33/b) and screwing down
the nut and lock-nut (Fig. 33/d) until the tension is
correct.
To ensure that the angle of the rail (Fig. 35/a) does not
change over time, check again that all parts have been
assembled correctly and then drill a hole (Fig. 35/b) in
the connecting joint (Fig. 35/c) and fit a locking pin (Fig.
35/d) into the hole.
FIG.32
FIG.33
d
b
b
d
FIG.35
c
29
c
a
a
b
d
