8) DEFINITIVE INSTALLATION OF THE MOUNTING
FEET
After performing a lift trial run to make sure that every-
thing has been assembled correctly, the next step is to
fix the mounting feet to the floor and the connections to
the wall (where possible, in the latter case).

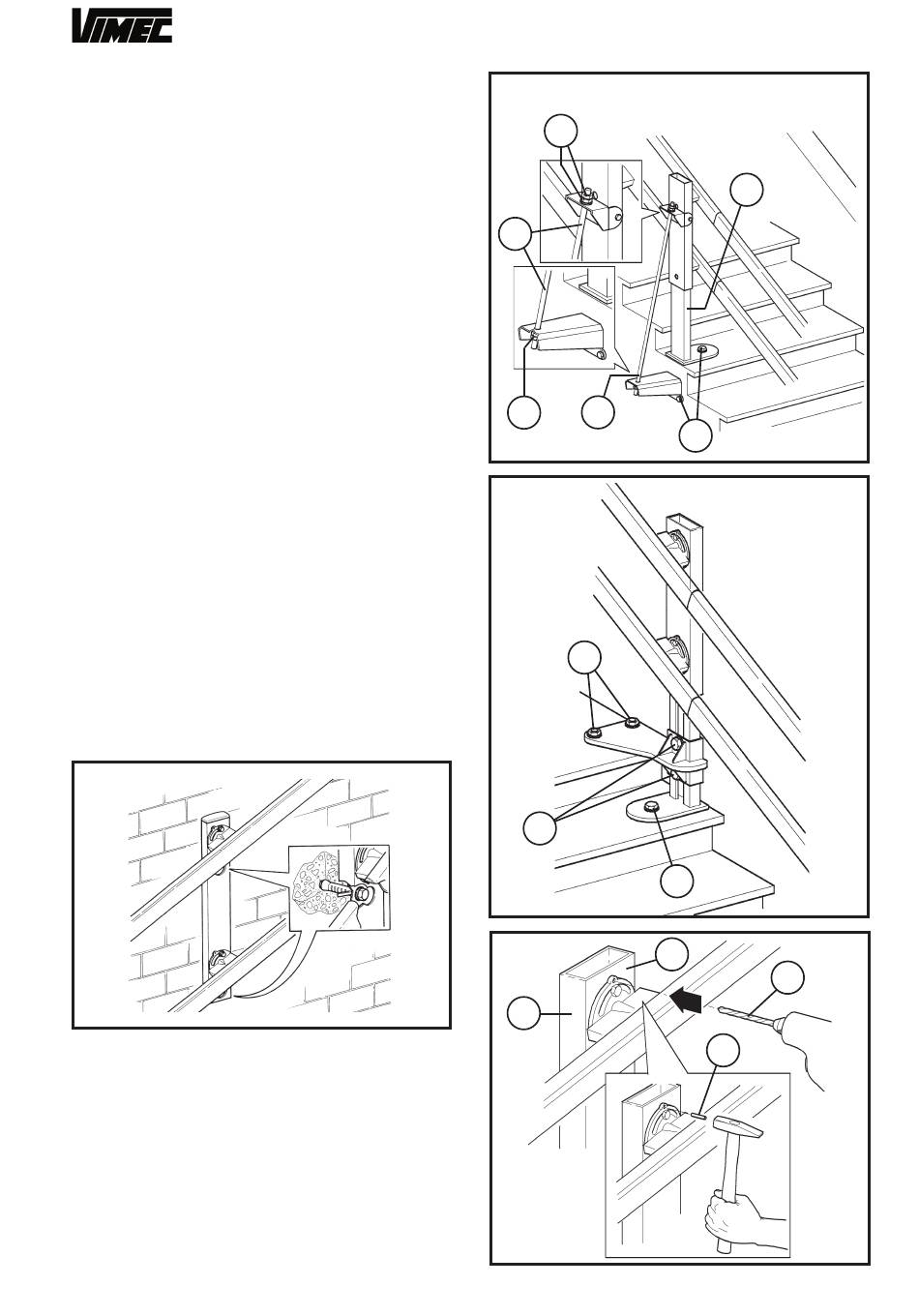

Depending on the type of foot which appears in the
installation drawing, fit the feet firmly as shown by the
examples below (Fig. 31-32-33-34).
If the feet are fixed to the step (Fig. 34), drill the holes
in the steps and fix using the screws (Fig. 34/a) sup-
plied.
After the fixing operation, tighten the screws hard
(Fig. 34/b).
If the feet have a hinged support(Fig. 33), drill the
holes in the fixing points and fix using the screws
(Fig. 33/a) supplied.
Tighten the foot (Fig. 33/c) by fitting the threaded
bar into the holes provided (Fig. 33/b) and screwing
down the nut and lock-nut (Fig. 33/d) until the tension
is correct.
To ensure that the angle of the rail (Fig. 35/a) does not
change over time, check again that all parts have been
assembled correctly and then drill a hole (Fig. 35/b)
in the connecting joint (Fig. 35/c) and fit a locking pin
(Fig. 35/d) into the hole.
FIG.32
FIG.33
d
b
d b
FIG.34
a
b
FIG.35
c
27
7602040
c
a
a
a
b
d
