Connecting the power supply

The supply voltage (18 VDC .... 32 VDC) is connected by a 4-pole terminal block. The power
supply is connected to the plug connector via flexible wires with a cross section of 0.75 to
1.5 mm². The ground connection wire must have a cross section of 1.5 mm².
CAUTION
The Functional Earth (FE) connection of the device has to be connected at low
inductance with the Protective Earth (PE) of the system.
10

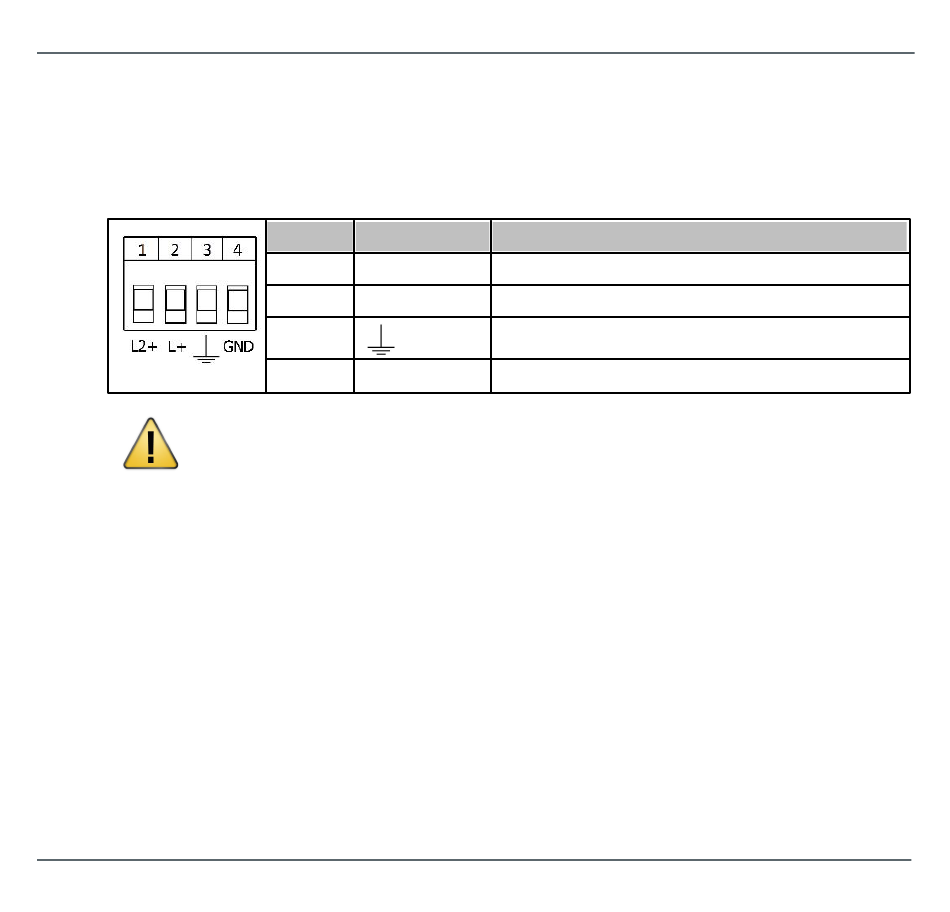

Pin Signal
1 L2+
2 L+
3
4 GND
Description
Redundant positive supply voltage
Positive supply voltage
Functional Earth
Ground
