REMOTE CONTROL
Remote control (CI-V) information

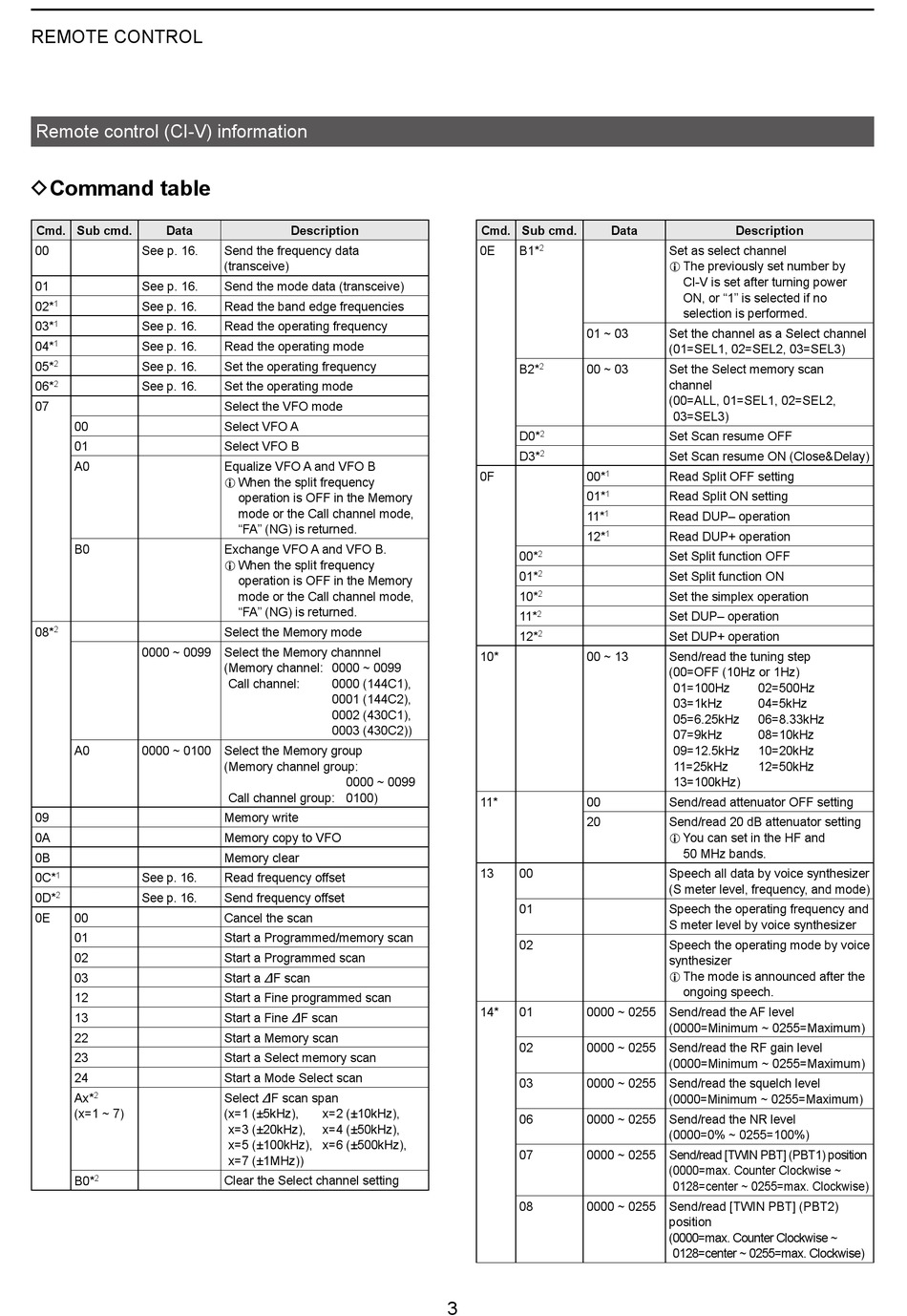

DCommand table

Cmd� Sub cmd� Data
00 See p� 16�
01 See p� 16�
02* See p� 16�
1
03* See p� 16�
1
04* See p� 16�
1
05* See p� 16�
2
06* See p� 16�
2
07
00
01
A0
B0
08* 2
0000 ~ 0099
A0 0000 ~ 0100
09
0A
0B
0C* 1 See p� 16�
0D* 2 See p� 16�
0E 00
01
02
03
12
13
22
23
24
Ax* 2
(x=1 ~ 7)
B0* 2
Description
Send the frequency data
(transceive)
Send the mode data (transceive)
Read the band edge frequencies
Read the operating frequency
Read the operating mode
Set the operating frequency
Set the operating mode
Select the VFO mode
Select VFO A
Select VFO B
Equalize VFO A and VFO B
L When the split frequency
operation is OFF in the Memory
mode or the Call channel mode,
"FA" (NG) is returned�
Exchange VFO A and VFO B�
L When the split frequency
operation is OFF in the Memory
mode or the Call channel mode,
"FA" (NG) is returned�
Select the Memory mode
Select the Memory channnel
( Memory channel: 0000 ~ 0099
Call channel: 0000 (144C1),
0001 (144C2),
0002 (430C1),
0003 (430C2))
Select the Memory group
( Memory channel group:
0000 ~ 0099
Call channel group: 0100)
Memory write
Memory copy to VFO
Memory clear
Read frequency offset
Send frequency offset
Cancel the scan
Start a Programmed/memory scan
Start a Programmed scan
Start a ∂F scan
Start a Fine programmed scan
Start a Fine ∂F scan
Start a Memory scan
Start a Select memory scan
Start a Mode Select scan
Select ∂F scan span
( x=1 (±5kHz), x=2 (±10kHz),
x=3 (±20kHz), x=4 (±50kHz),
x=5 (±100kHz), x=6 (±500kHz),
x=7 (±1MHz))
Clear the Select channel setting
Cmd� Sub cmd� Data
0E B1* 2
01 ~ 03
B2* 00 ~ 03
2
D0* 2
D3* 2
0F 00* 1
01* 1
11* 1
12* 1
00* 2
01* 2
10* 2
11* 2
12* 2
10* 00 ~ 13
11* 00
20
13 00
01
02
14* 01 0000 ~ 0255
02 0000 ~ 0255
03 0000 ~ 0255
06 0000 ~ 0255
07 0000 ~ 0255
08 0000 ~ 0255
3
Description
Set as select channel
L The previously set number by
CI-V is set after turning power
ON, or "1" is selected if no
selection is performed�
Set the channel as a Select channel
(01=SEL1, 02=SEL2, 03=SEL3)
Set the Select memory scan
channel
( 00=ALL, 01=SEL1, 02=SEL2,
03=SEL3)
Set Scan resume OFF
Set Scan resume ON (Close&Delay)
Read Split OFF setting
Read Split ON setting
Read DUP– operation
Read DUP+ operation
Set Split function OFF
Set Split function ON
Set the simplex operation
Set DUP– operation
Set DUP+ operation
Send/read the tuning step
( 00=OFF (10Hz or 1Hz)
01=100Hz 02=500Hz
03=1kHz 04=5kHz
05=6�25kHz 06=8�33kHz
07=9kHz 08=10kHz
09=12�5kHz 10=20kHz
11=25kHz 12=50kHz
13=100kHz)
Send/read attenuator OFF setting
Send/read 20 dB attenuator setting
L You can set in the HF and
50 MHz bands�
Speech all data by voice synthesizer
(S meter level, frequency, and mode)
Speech the operating frequency and
S meter level by voice synthesizer
Speech the operating mode by voice
synthesizer
L The mode is announced after the
ongoing speech�
Send/read the AF level
(0000=Minimum ~ 0255=Maximum)
Send/read the RF gain level
(0000=Minimum ~ 0255=Maximum)
Send/read the squelch level
(0000=Minimum ~ 0255=Maximum)
Send/read the NR level
(0000=0% ~ 0255=100%)
Send/read [TWIN PBT] (PBT1) position
( 0000=max� Counter Clockwise ~
0128=center ~ 0255=max� Clockwise)
Send/read [TWIN PBT] (PBT2)
position
( 0000=max� Counter Clockwise ~
0128=center ~ 0255=max� Clockwise)
