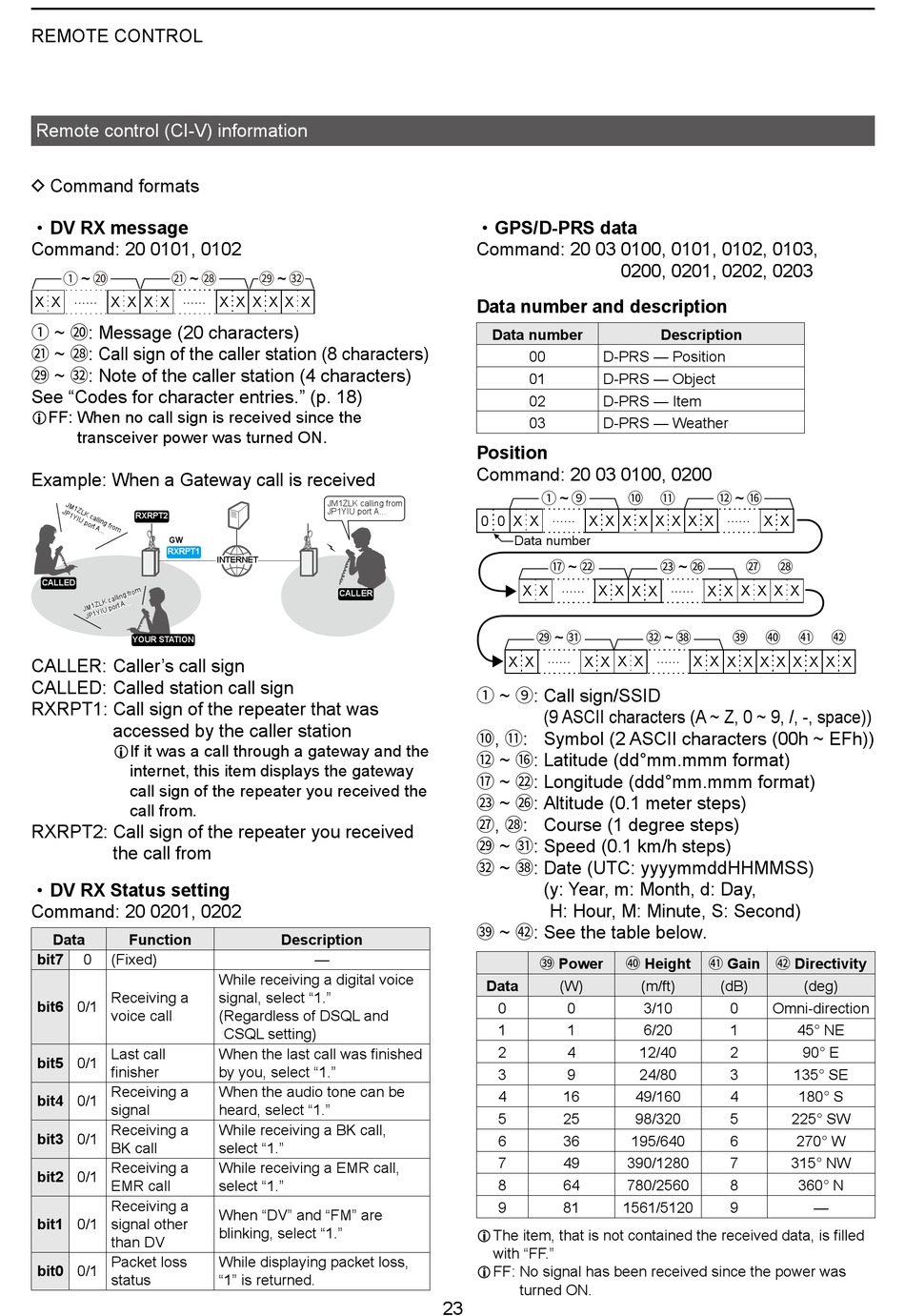

REMOTE CONTROL
Remote control (CI-V) information
D Command formats

• DV RX message

Command: 20 0101, 0102
~ ~
1 20 21 28
X X X X X X
∙∙∙∙∙∙ ∙∙∙∙∙∙
1 ~ 20: Message (20 characters)
21 ~ 28: Call sign of the caller station (8 characters)
29 ~ 32: Note of the caller station (4 characters)
See "Codes for character entries�" (p� 18)
LFF: When no call sign is received since the
transceiver power was turned ON�
Example: When a Gateway call is received
RXRPT2
GW
RXRPT1
CALLED
YOUR STATION
CALLER: Caller's call sign
CALLED: Called station call sign
RXRPT1: Call sign of the repeater that was
accessed by the caller station
LIf it was a call through a gateway and the
internet, this item displays the gateway
call sign of the repeater you received the
call from�
RXRPT2: Call sign of the repeater you received
the call from

• DV RX Status setting

Command: 20 0201, 0202
Data Function
bit7 0 (Fixed)
Receiving a
bit6 0/1
voice call
Last call
bit5 0/1
finisher
Receiving a
bit4 0/1
signal
Receiving a
bit3 0/1
BK call
Receiving a
bit2 0/1
EMR call
Receiving a
bit1 0/1 signal other
than DV
Packet loss
bit0 0/1
status
~
29 32
X X X X X X
JM1ZLK calling from JM1ZLK calling from
JP1YIU port A... JP1YIU port A...
INTERNET INTERNET
CALLER
Description
—
While receiving a digital voice
signal, select "1�"
( Regardless of DSQL and
CSQL setting)
When the last call was finished
by you, select "1�"
When the audio tone can be
heard, select "1�"
While receiving a BK call,
select "1�"
While receiving a EMR call,
select "1�"
When "DV" and "FM" are
blinking, select "1�"
While displaying packet loss,
"1" is returned�

• GPS/D-PRS data

Command: 20 03 0100, 0101, 0102, 0103,
Data number and description
Data number
00 D-PRS — Position
01 D-PRS — Object
02 D-PRS — Item
03 D-PRS — Weather
Position
Command: 20 03 0100, 0200
1 ~ 9
0 0 X X X X
∙∙∙∙∙∙
Data number
17 ~ 22
X X X X
∙∙∙∙∙∙
29 ~ 31
X X X X
∙∙∙∙∙∙
1 ~ 9: Call sign/SSID
(9 ASCII characters (A ~ Z, 0 ~ 9, /, -, space))
10, 11: Symbol (2 ASCII characters (00h ~ EFh))
12 ~ 16: Latitude (dd°mm�mmm format)
17 ~ 22: Longitude (ddd°mm�mmm format)
23 ~ 26: Altitude (0�1 meter steps)
27, 28: Course (1 degree steps)
29 ~ 31: Speed (0�1 km/h steps)
32 ~ 38: Date (UTC: yyyymmddHHMMSS)
( y: Year, m: Month, d: Day,
H: Hour, M: Minute, S: Second)
39 ~ 42: See the table below�
39 Power
Data (W)
0 0
1 1
2 4
3 9
4 16
5 25
6 36
7 49
8 64
9 81
L The item, that is not contained the received data, is filled
with "FF�"
L FF: No signal has been received since the power was
turned ON�
23
0200, 0201, 0202, 0203
Description
12 ~ 16
10 11
X X X X X X X X
∙∙∙∙∙∙
23 ~ 26
27 28
X X X X X X X X
∙∙∙∙∙∙
32 ~ 38
39 40
X X X X X X X X X X X X
∙∙∙∙∙∙
40 Height 41 Gain 42 Directivity
(m/ft) (dB)
3/10 0 Omni-direction
6/20 1
12/40 2
24/80 3
49/160 4
98/320 5
195/640 6
390/1280 7
780/2560 8
1561/5120 9
41 42
(deg)
45° NE
90° E
135° SE
180° S
225° SW
270° W
315° NW
360° N
—
