REMOTE CONTROL
Remote control (CI-V) information

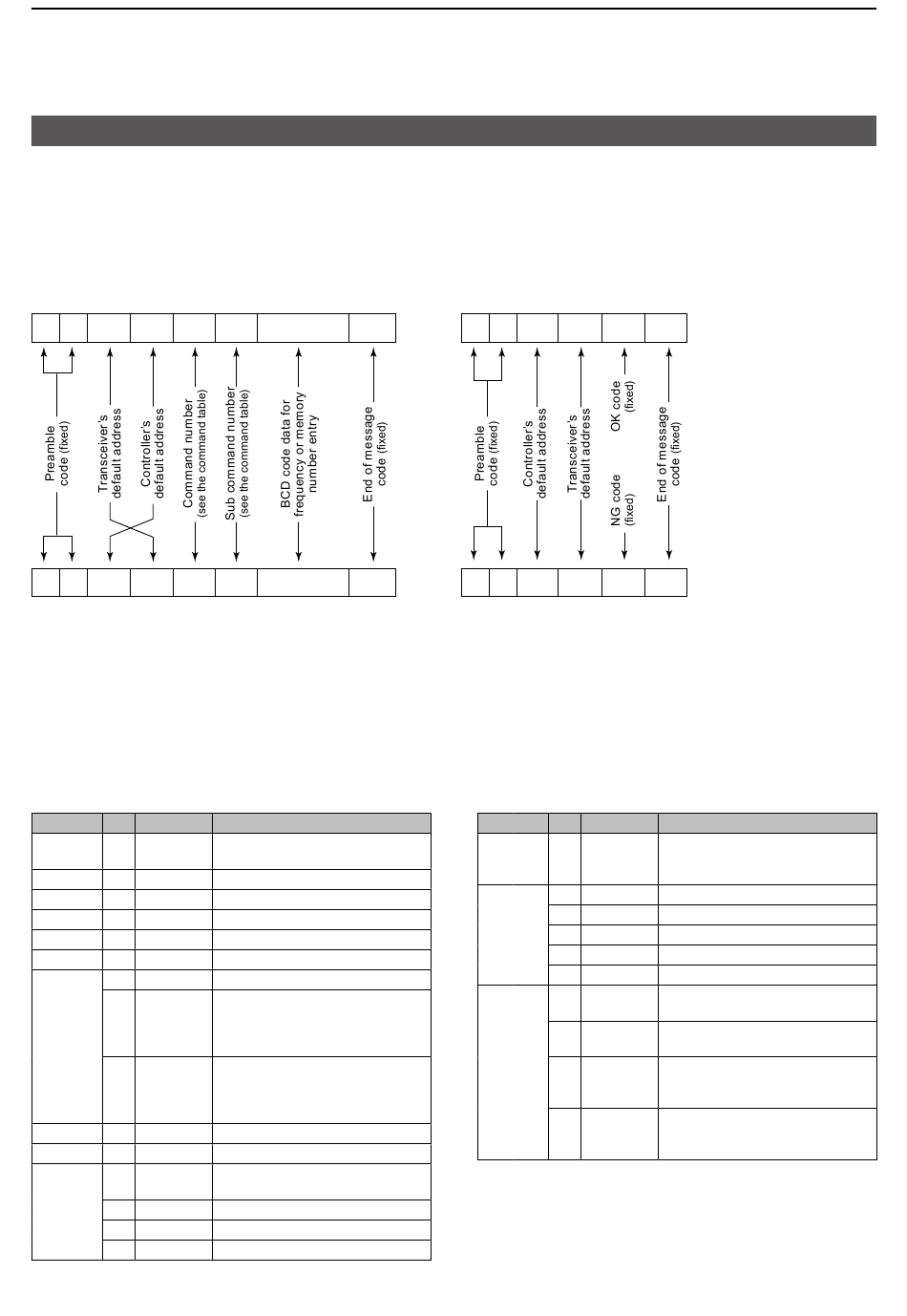

DData format

The CI-V system can be written using the following data formats� Data formats differ according to
command numbers� A data area or sub command is added for some commands�
Controller to ID-52A/E
q w e r
FE FE A6 E0 Cn
FE FE E0 A6 Cn
q w e r
ID-52A/E to controller

DCommand table

Command Sub Data
00 See p� 6
01 See p� 6
03 See p� 6
04 See p� 6
05 See p� 6
06 See p� 6
07
D0
D1
0C See p� 6
0D See p� 6
0F
10
11
12
t y u
Sc Data area FD
Sc Data area FD
t y u
Description
Send operating frequency for
transceive
Send operating mode for transceive
Read operating frequency
Read operating mode
Send operating frequency
Send operating mode
Select the VFO mode
Select the A band
Dualwatch: Set the MAIN band as
the A band
Single watch: Select the A band
Select the B band
Dualwatch: Set the MAIN band as
the B band
Single watch: Select the B band
Read offset frequency* 1
Set offset frequency
Read duplex setting
(10=OFF, 11=DUP–, 12=DUP+)
Set Simplex
Set Duplex –
Set Duplex +
OK message to controller
FE FE E0 A6 FB
FE FE E0 A6 FA
NG message to controller
Command Sub Data
11* 00/10/30
14* 01 See p� 6
03 See p� 6
0A See p� 6
0B See p� 6
16 See p� 6
15 01 00/01
02 0000 ~ 0255 Read S-meter level
05 00/01
11 0000 ~ 0255 Read the Po Meter Level
*(Asterisk) Send/read data
4
FD
FD
Description
Send/read Attenuator
( 00=OFF, 10=10 dB (375 ~ 479 MHz),
30=30 dB (108 ~ 374�995 MHz)
Send/read the audio level
Send/read the squelch level
Send/read the RF power setting
Send/read MIC gain (External)
Send/read the VOX gain
Read noise or S-meter squelch status
(00=Close, 01=Open)
(0000=S0, 0170=S9)
Read various squelch function's
(including the tone squelch) status
(00=Close, 01=Open)
( 25=S-Low, 76=Low1,
128=Low2, 179= Mid, 230=High)
