4-4

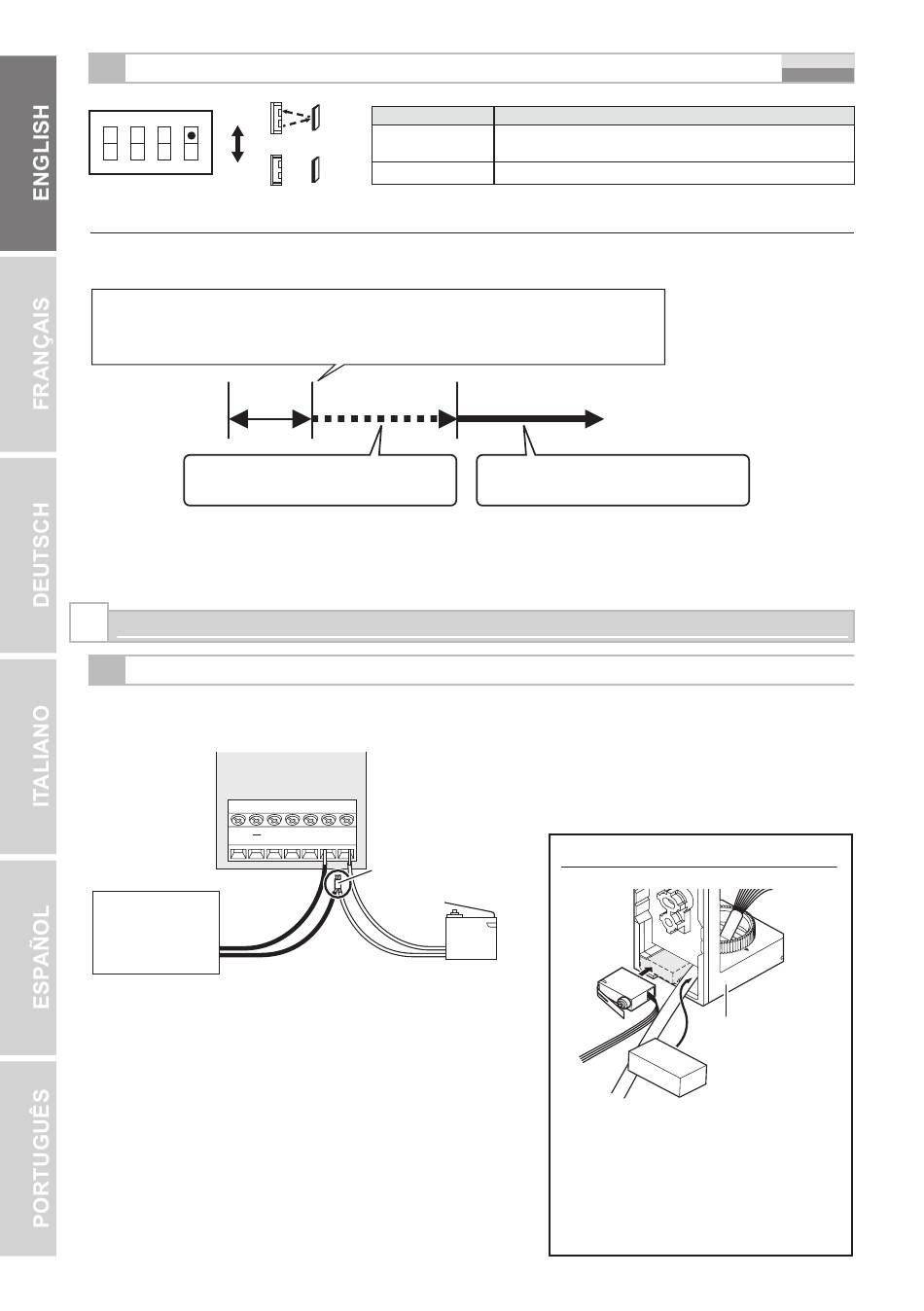

ANTI-MASKING

ON
ON
1 2 3 4
OFF
-ANTI-MASKING function
When masking condition continues more than 3 minutes, TROUBLE will be generated.
TROUBLE is generated after 20 seconds under the anti-masking test mode.
Please close the main unit cover before turning on the power supply.
"Teaching mode" will begin immediately after the power is supplied.
Re-starting the power is necessary if the power has been applied prior to the closing.
Please be careful not to leave any object within 1 m from the unit.
1 minute
Teaching
ANTI-MASKING test mode
The trouble is output after 20 seconds.
Note>>
• If a trouble is output (mal-detection of anti-masking) immediately after the operation has
started, set the DIP switch 4 (ANTI-MASKING) to "OFF" and then to "ON", and close the cover.
5

OTHERS

5-1

WALL TAMPER (OPTION) CONNECTION

Connect the tamper lead as shown below when connecting a wall tamper (option).
+
Control panel
Position
ON
(Factory default)
OFF
10 minutes
AL C SP TP TP
Twist and swage
the wires.
Wall tamper (option)
WRS-02
EN-6
Function
ANTI-MASKING ON
ANTI-MASKING OFF
Normal mode
The trouble is output after 3 minutes.
-Mounting position
Sponge
Note>>
• Pull the wire through the bracket before
installing the wall tamper (option).
FTN-ST
DIP switch 4
FTN-AM
Bracket
