INSTALLATION INSTRUCTIONS
CONTENTS
1-1 BEFORE INSTALLATION . ...............2
1-2 PARTS IDENTIFICATION . ...............3
1-3 DETECTION AREA..........................3
2-1 INSTALLATION . ...............................4
3-1 WALK TEST . ....................................7
4-1 LED . .................................................8
4-2 ALARM OUTPUT . ............................8
4-3 PIR SENSITIVITY . ...........................8
4-4 ANTI-MASKING . ..............................8
CONNECTION.................................9
5-2 EXAMPLE OF EOL WIRING .........10
5-3 LED LIGHT PATTERN . .................. 11
6-1 SPECIFICATIONS ......................... 11
6-2 DIMENSIONS ................................12
- 1 -
NO.59-1645-1
N219
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Optex Fit Series
Summary of Contents for Optex Fit Series
-
Page 1: Table Of Contents

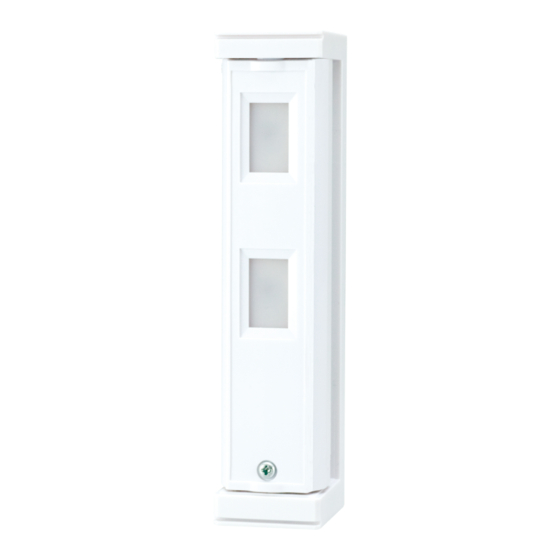

NO.59-1645-1 INSTALLATION INSTRUCTIONS Compact outdoor Compact outdoor detector detector N219 fit series fit series CONTENTS FTN-ST Standard model with 2 PIRs FTN-AM FTN-ST with anti-masking 1 INTRODUCTION 1-1 BEFORE INSTALLATION ....2 • Compact design 1-2 PARTS IDENTIFICATION ....3 1-3 DETECTION AREA......3 • 190° adjustable bracket 2 INSTALLATION 2-1 INSTALLATION ........4 • Intelligent AND logic 3 WALK TEST 3-1 WALK TEST . -
Page 2: Introduction
INTRODUCTION BEFORE INSTALLATION Failure to follow the instructions provided with this indication and improper Warning handling may cause death or serious injury. Failure to follow the instructions provided with this indication and improper Caution handling may cause injury and/or property damage. The check mark indicates recommendation. The nix sign indicates prohibition. Warning Caution Do not remove the PCB. Do not touch the PCB except for the DIP switch. Mounting height. Keep the detector parallel to the Consider the direction a person is ground. approaching from, as well as the detection area. 0.8 – 1.2 m (2'7" – 3'11") Tilt Parallel Install the detector in a place where it is free from false alarm factors. For example: • • • Sunlight and reflection Heat source Objects moving in the wind - 2 -... -
Page 3: Parts Identification
PARTS IDENTIFICATION Bracket Main unit Main unit cover Lens Screw kit Screw (3 × 20 mm) Sponge Sponge Fixture -Optional accessories Wall tamper (WRS-02) DETECTION AREA Top view Side view (ft.) 5 m detection length (ft.) (ft.) 0' (ft.) Adjustable range: 95° (by 5° pitch) 2'7" 3'3" 3'11" 2 m detection length (ft.) Adjustable range: 95° (by 5° pitch) 0' (ft.) 2'7" 3'3" 3'11" - 3 -... -
Page 4: Installation
INSTALLATION INSTALLATION Open the main unit cover. Remove the fixture. Fixture Fixture Hold the top of the bracket lifted and Put the wire extending from the wall remove the main unit. through the wiring hole in the bottom of the bracket, and mount the bracket on Bracket Bracket the wall. - Page 5 Wire terminal connections. FTN-ST FTN-ST FTN-AM FTN-AM + - AL C SP TP TP + - AL C TR TP TP Notes>> • Anti-masking output is recognized as TROUBLE. • For EOL, refer to page 10. -Power cable length The power cable should be limited to the following length. Unit: m (ft.) FTN-ST FTN-AM Cable diameter 12 V 14 V 12 V 14 V AWG22 (0.33 mm (1,120')
- Page 6 Determine the detection length. (2 m or 5 m) If 2 m is required, rotate the lower lens If 2 m is required, rotate the lower lens 180 degrees. 180 degrees. Note>> Note>> • • Do not remove the upper lens. Do not remove the upper lens. 5 m detection length 5 m detection length 2 m detection length 2 m detection length (Factory default) (Factory default) Side view Side view Side view Side view...
-
Page 7: Walk Test
WALK TEST WALK TEST Set DIP switch 1 (LED) to “ON”. Check that LED lights for 2 seconds when the intended object is detected. DIP switch DIP switch Detected Not detected Note>> • The switch is set to “ON” by factory default. If the LED does not need to be turned on at all times, set the DIP switch 1 (LED) to “OFF”. -
Page 8: Dip Switch Setting
DIP SWITCH SETTING DIP switch 1 LED 2 A LARM OUTPUT 3 P IR SENSITIVITY ●: Factory default 4 A NTI-MASKING Do not touch the PCB except for the DIP switch and the terminal. FTN-ST DIP switch 1 FTN-AM Position Function LED ON (Factory default) LED OFF FTN-ST ALARM OUTPUT DIP switch 2 FTN-AM Position Function N.O. N.O. N.O. output N.C. N.C. N.C. output (Factory default) FTN-ST... -
Page 9: Others
-ANTI-MASKING function When masking condition continues more than 3 minutes, TROUBLE will be generated. TROUBLE is generated after 20 seconds under the anti-masking test mode. Please close the main unit cover before turning on the power supply. “Teaching mode” will begin immediately after the power is supplied. Re-starting the power is necessary if the power has been applied prior to the closing. Please be careful not to leave any object within 1 m from the unit. 1 minute 10 minutes Teaching ANTI-MASKING test mode Normal mode The trouble is output after 20 seconds. The trouble is output after 3 minutes. Note>> • If a trouble is output (mal-detection of anti-masking) immediately after the operation has started, set the DIP switch 4 (ANTI-MASKING) to “OFF” and then to “ON”, and close the cover. OTHERS WALL TAMPER (OPTION) CONNECTION Connect the tamper lead as shown below when connecting a wall tamper (option). -Mounting position SP TP TP Twist and swage the wires. Wall tamper (option) Control panel WRS-02 Bracket Sponge Note>>... -
Page 10: Example Of Eol Wiring
EXAMPLE OF EOL WIRING Since the alarm and trouble outputs share the COM terminal, the wire connection should be made for the fit series detector according to the following diagram. -Double EOL Alarm relay Trouble relay Tamper Positive (+) Negative (-) Alarm Trouble (N.C.) Tamper (N.C.) Tamper (N.C.) terminal terminal (N.C./N.O.) Alarm-EOL-Resistance Tamper-EOL-Resistance Control panel Control panel Alarm relay Trouble relay Tamper Positive (+) Negative (-) Alarm Trouble (N.C.) Tamper (N.C.) Tamper (N.C.) terminal terminal (N.C./N.O.) Alarm-EOL-Resistance Tamper-EOL-Resistance Control panel Control panel -Triple EOL Alarm relay Trouble relay... -
Page 11: Led Light Pattern
LED LIGHT PATTERN The following explains the LED light pattern. Blink Light Detector condition LED indicator Warm-up Note>> • The LED blinks even if the DIP Blinks for approx. 60 seconds. switch 4 (LED) is set to “OFF”. Alarm Lights for 2 seconds. Masking detection (FTN-AM only) Note>> • The LED blinks even if the DIP Blinks 3 times and then repeats. switch 4 (LED) is set to “OFF”. SPECIFICATIONS SPECIFICATIONS Model FTN-ST FTN-AM Detection method Passive infrared PIR coverage 5 × 1 m (16'5" × 3'3") Detection length limit 2 m, 5 m (6'7", 16'5") Detectable speed 0.3 – 1.5 m/s (1' – 4'11"/s) Sensitivity 2.0°C (at 0.6 m/s) (3.6°F (at 2'/s)) Operating voltage 9.5 – 18 V DC Current draw 17 mA (max.) (at 12 V DC) 20 mA (max.) (at 12 V DC) -
Page 12: Dimensions
42.5 (1.67") Unit: mm (inch) Unit: mm (inch) Note>> • These units are designed to detect an intruder and activate an alarm control panel. Being only a part of a complete system, we cannot accept responsibility for any damages or other consequences resulting from an intrusion. These products confirm to the EMC Directive 2004/108/EC. OPTEX INCORPORATED (USA) OPTEX SECURITY Sp. z o. o. (POLAND) OPTEX CO., LTD. (JAPAN) TEL:+1-909-993-5770 TEL:+48-22-598-06-55 (ISO 9001 Certified) Tech:(800)966-7839 URL:http://www.optex.com.pl/ (ISO 14001 Certified) URL:http://www.optexamerica.com/ 5-8-12 Ogoto Otsu OPTEX KOREA CO., LTD.
