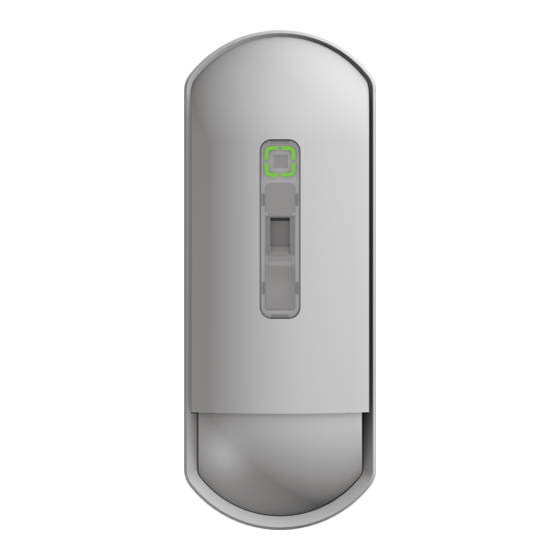

Optex FlipX Series Installation Instructions Manual
  1. Manuals
  2. Brands
  3. Optex Manuals
  4. Security Sensors
  5. FlipX Series
  6. Installation instructions manual

Optex FlipX Series Installation Instructions Manual

Hide thumbs Also See for FlipX Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Flexible Range Indoor Detector
Flexible Range Indoor Detector
FlipX series
FlipX series
PROFESSIONAL MODELS
<< Contents >>
Page
1
3
Wall
4
2
3
11
12
13
13
14
with bracket CW-G2
15
FLX-P-ST
FLX-P-DT-X9＊
2
3
mount
Ceiling
mount
5
with bracket
7
8
9
10
1
INSTALLATION INSTRUCTIONS
Wide/Narrow area
Flip lens
✓
✓
✓
✓
* Not certified to UL
6
No.59-3169-0 2208-18
UL No.59-3169-0 2208-18
EN
PIR
Microwave
✓
-
✓
✓(10.525GHz)
✓
✓(10.587GHz)
✓
✓(9.425GHz)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FlipX Series and is the answer not in the manual?

Questions and answers

Related Manuals for Optex FlipX Series

Summary of Contents for Optex FlipX Series

  • Page 1: Table Of Contents

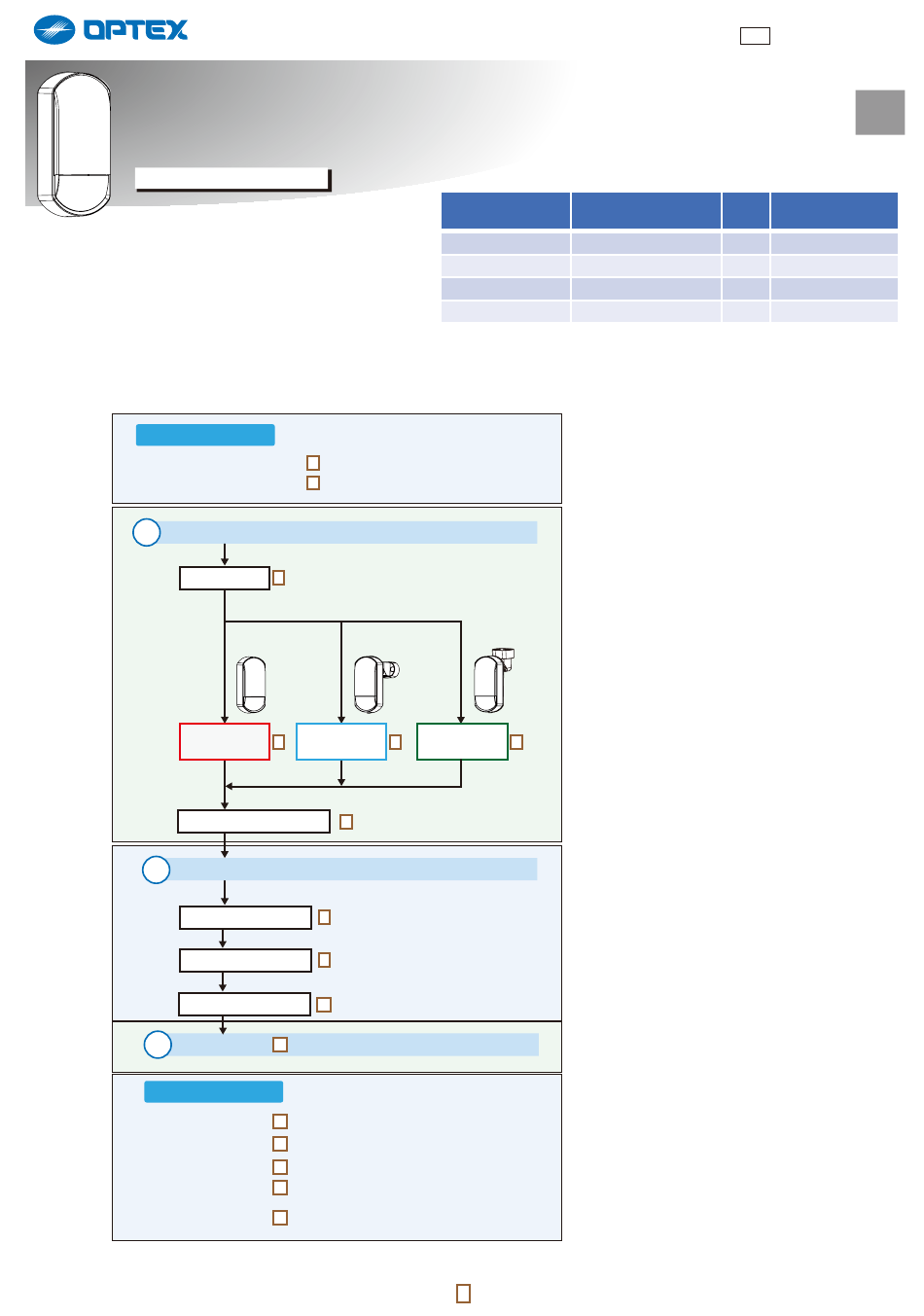

    No.59-3169-0 2208-18 UL No.59-3169-0 2208-18 INSTALLATION INSTRUCTIONS Flexible Range Indoor Detector Flexible Range Indoor Detector FlipX series FlipX series PROFESSIONAL MODELS Wide/Narrow area Microwave Flip lens FLX-P-ST ✓ ✓ FLX-P-DT-X5 ✓ ✓ ✓(10.525GHz) FLX-P-DT-X8＊ ✓ ✓ ✓(10.587GHz) FLX-P-DT-X9＊ ✓ ✓...

  • Page 2: Before Installation

    Before installation - Manufacturer’ s statement Symbol Meaning Symbol Meaning Check mark indicates recommendation. Failure to follow the instructions provided with this indication Warning Nix sign indicates prohibition. and improper handling may cause death or serious injury. Failure to follow the instructions provided with this indication Special attention is required to the Caution NOTE...

  • Page 3: Parts Identification

    - Parts identifications Base Option Sponge CW-G2 Bracket for wall/ceiling mount Main unit Cover Joint screw x 3 Fixing screw x 2 PEU: Plug-in EOL Unit Lens ＊Not certified to SBSC. Installation 1-1. Disassemble Remove the main unit Open the cover Unlock the cover 180°...

  • Page 4: Without Bracket

    1-2. Wall mount without bracket How to break the knockouts Wire through the base Wiring knockouts For Wall/ Corner mount Surface wiring : Upper For Wall/ Corner mount : Lower Hidden wiring: A. Surface wiring B. Hidden wiring A-1. Upper A-2.

  • Page 5: With Bracket

    1-3. Wall mount with bracket Wire and mount on the wall Wiring knockout guide Punch out 3 knockout guides to open the wiring hole to allow wire run. NOTE Mounting screws are not included. Φ 3 mm screws are recommended. Wiring knockout hole NOTE...
  • Page 6 1-4. Ceiling mount with bracket How to change the bracket to the ceiling mounting [1] Loosen the fixing screw. [2] Rotate the body. [3] Tighten the fixing screw. WALL CEILING Rear side Rear side WALL CEILING Wire and mount on the ceiling Wiring knockout guide Punch out 3 knockout guides to open...

  • Page 7: Assemble And Connect

    1-5. Assembe and connect Attach the main unit to the base [1] Hook the top of the PCB on the protrusions on both sides. [2] Push the bottom of the PCB over the protruding claws. Connect wires to the terminal SP LED ALARM TAMP...

  • Page 8: Settings

    Settings 2-1. Wide/Narrow setting Page Go to 2-2 on to skip 2-1 Set the Flip lens to “Wide” or “Narrow” when using the default “Wide” setting. WIDE NARROW Default NOTE Install the lens so that the letters on the cover and on the lens match your intention. How to remove the lens Get over the rib, then pull up the lens.

  • Page 9: Jumper Pin Settings

    How to install the lens Push the lens firmly at 3 points in numerical order. Set the jumper pin to “Wide” or “Narrow” Caution LENS The jumper pin must be “Narrow” , when the lens is set to “Narrow” . Wide/Narrow NOTE Default setting is “Wide”...

  • Page 10: Peu Settings

    2-3. PEU settings Alarm Tamper resistors Relay & Tamper inside the detector socket SP LED ALARM TAMP Wiring to the control panel Grade 2 NOTE Align both triangle marks.

  • Page 11: Checking

    Checking 3-1. Walk test Confirm that the LED pin is “ON” , then close the cover. Walk in the detection area to check the detecting performance via LED indication. ON OFF LED Return the LED pin to “OFF” after the walk test, if necessary. Lock the cover ON OFF LED 180°...

  • Page 12: Others

    Others - Specifications Model FLX-P-ST FLX-P-DT-X5/-X8/-X9 Installation Detection method Passive infrared Passive infrared and Microwave Wide ： 15 m (50 ft.) 85°/ Narrow ： 24 m (80 ft.) 5° Coverage ( No MW detection at “Narrow” setting ) Detection zones Wide: 78 zones/ Narrow: 18 zones Mounting height 2.0 to 3.0 m (6'7"...

  • Page 13: Dimensions

    - Dimensions with CW-G2 bracket 61.5 (2.42) 50.9 (2.00) 102.6 (4.04) 120.1 (4.73) Unit: mm (inch) - Detection area Wide - Top view - Narrow - Top view - 50 ft. 80 ft. 6 ft. 24 m Short 20 ft. Long 14 m Wide...

  • Page 14: Angle Adjustment

    - Angle adjustment with bracket CW-G2 - 7 - NOTE * If the detector cover does not reach the ceiling, it can be swung up to +5°.

  • Page 15: Compliance

    This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body. ■ Hereby, OPTEX declares that the radio equipment type FLX-P-DT-X8 is in compliance with Radio Equipment Regulations 2017. The full text of the UK declaration of conformity is available at the following internet address:www.optex.net FCC/IC ■...
