Optex FitLink Quick Reference Manual

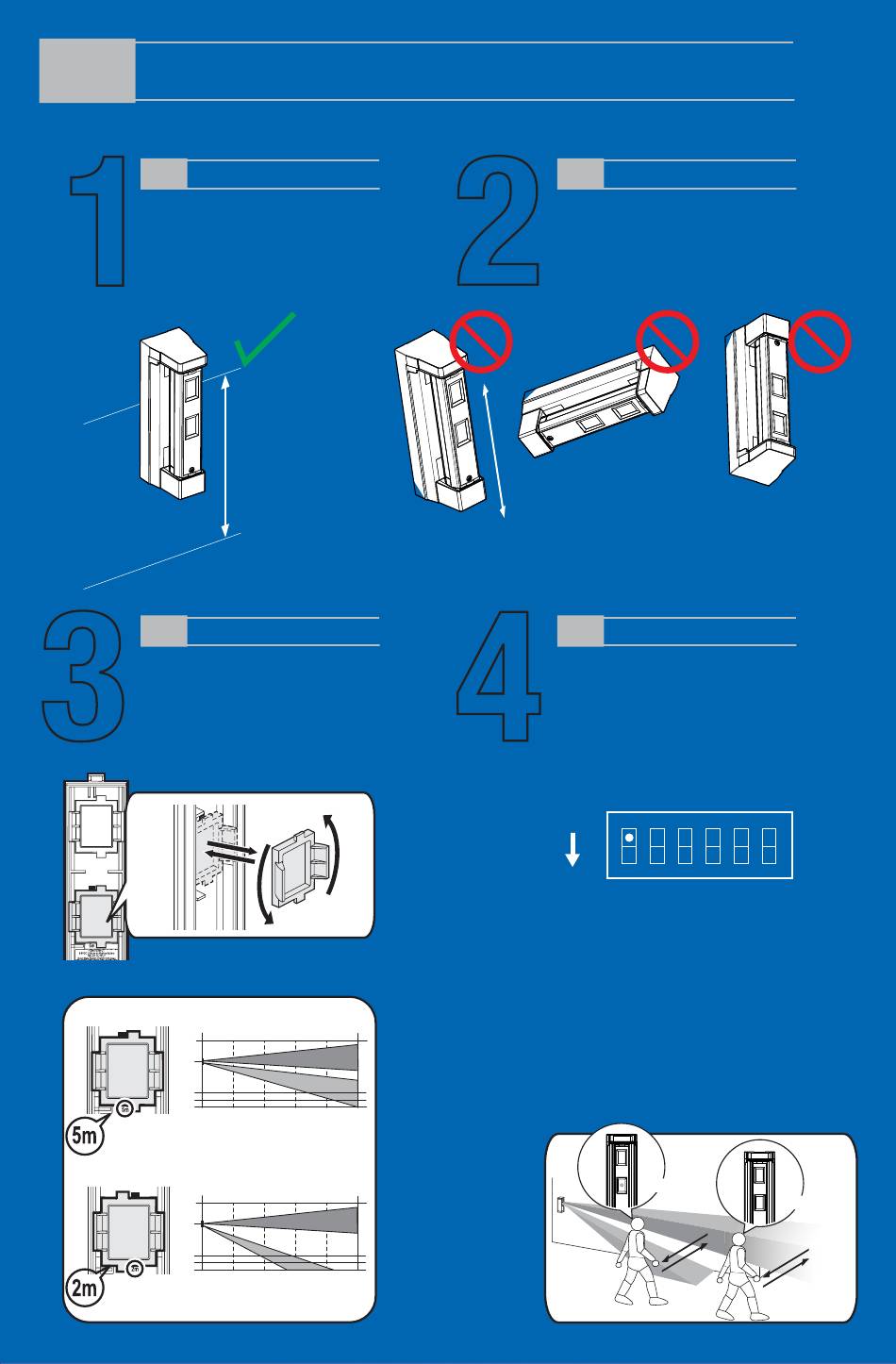

FitLink QUICK REFERENCE GUIDE
1
MOUNTING HEIGHT
It's extremely important to stay
within recommend heights of
2ft.,7in. to 3ft.,11in. to prevent
missed and unwanted alarms.
3
DETECTION RANGE
Make sure to adjust detection range to
best fit application.
16.4' (5m) or 6.6' (2m)
If 6.6' (2m) is required, rotate the
lower lens 180 degrees.
Note>>
Do not remove the upper lens.
16.4ft. (5m) detection length (Factory default)
(ft)
3.9
3.3
2.6
0
6.6ft. (2m) detection length
(ft)
3.9
3.3
2.6
0
2'7" to 3'11"
(0.8 to 1.2m)
Parallel
Side view
3.3 6.6 9.8 13 16.4
(ft)
Side view
6.6 9.8 13 16.4
(ft)
2
MOUNTING POSITION
Make sure to keep detector vertical and
level to the ground. When mounting
detector, do not tilt, turn upside down, or
mount horizontal. Detector should alway be
mounted vertical for best operation.
Tilt Horizontal
4
FINAL TESTING
Make sure to insert battery to power
detector and perform Walk Test.
After unit has been installed and
programmed, make sure to walk test and
confirm detector is performing affectively.
Once confirmed be sure to flip dip switch #1
from TEST (factory setting) to NORMAL.
TEST ON
NORM
TEST:
Regardless of DIP switch 4 (LED) and DIP
switch 2 (BATTERY SAVING MODE)
settings, LED will illuminate and detector will
trigger every time.
This is used for Walk Test ONLY.
NORMAL:
The LED lights depending on the DIP switch
4 (LED) setting and DIP switch 2 (BATTERY
SAVING MODE) setting is active.
Upside Down
1 2 3 4 5 6
Detected
Not detected
