CommScope CMAX-D-43-UW-i53 Installation Instructions

CMAX-D-43-UW-i53/CMAX-D-UW-i53/

CMAX-D-TCPUSEi53 Antennas

Note:

Please read the complete description before starting the installation. Make sure

that connectors are properly sealed against water if no cables are connected to

them after installation.

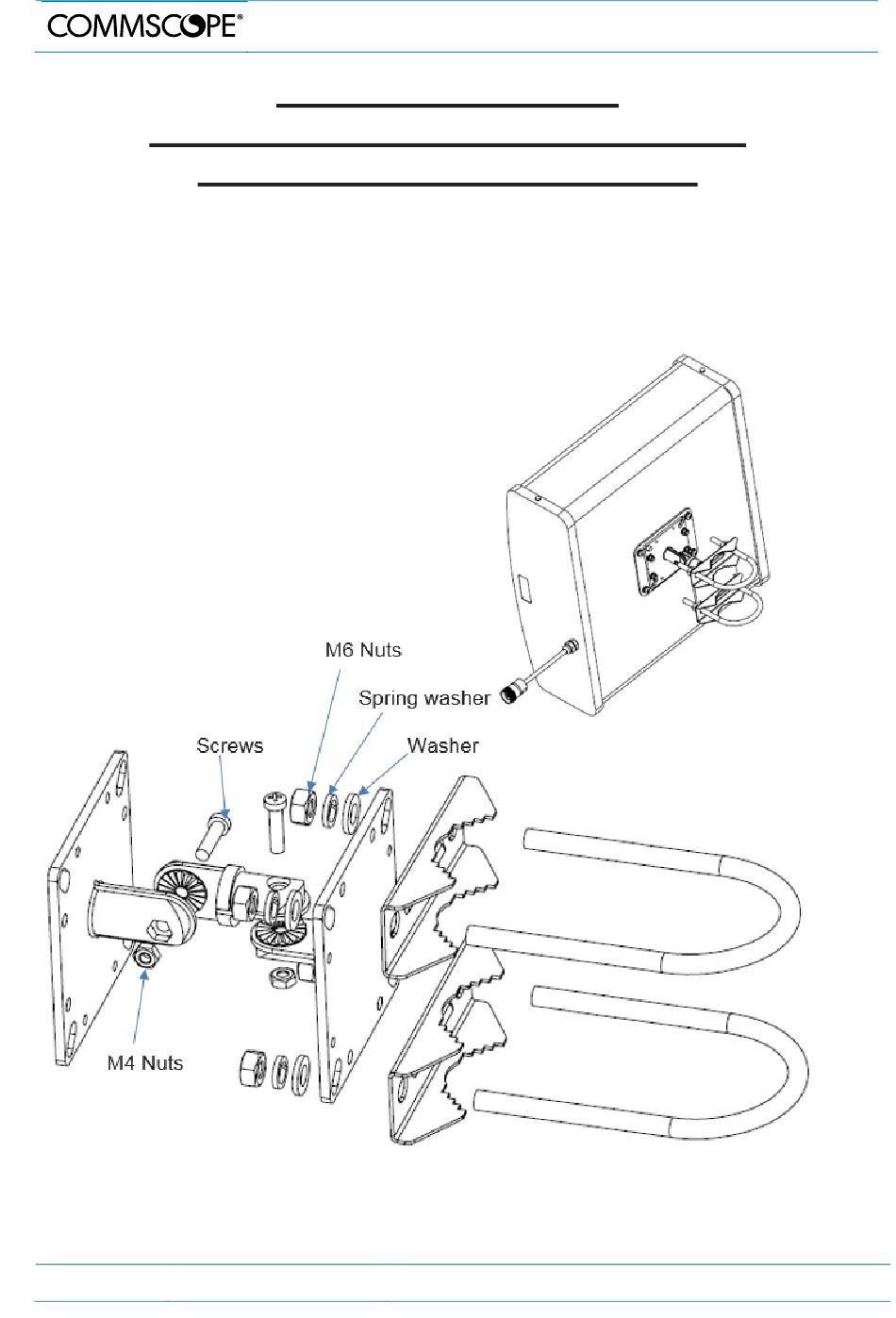

1. Assembly

Fit these seven parts above together and fasten them with screws M4、M6, nuts M4、M6,

spring washers, and washers.

Page 1

Installation Guide for

Installation Instruction for CMAX Antennas

M0149ARA_Installation_CMAX-D-xxx-Antennas

Table of Contents

Do you have a question about the CMAX-D-43-UW-i53 and is the answer not in the manual?

Page 1 Installation Instruction for CMAX Antennas Installation Guide for CMAX-D-43-UW-i53/CMAX-D-UW-i53/ CMAX-D-TCPUSEi53 Antennas Note: Please read the complete description before starting the installation. Make sure that connectors are properly sealed against water if no cables are connected to them after installation. 1. Assembly Fit these seven parts above together and fasten them with screws M4、M6, nuts M4、M6,...
Page 2 Installation Instruction for CMAX Antennas 2. Wall Mounting 1. Use this pedestal piece as a drill jig to mark 4 holes onto the wall as shown in the drawing above. 2. Drill 4 holes into the wall and insert plastic plug into holes. 3.
Page 3 Installation Instruction for CMAX Antennas 3. Pole Mounting (30~50 mm pole diameter) Page 3 M0149ARA_Installation_CMAX-D-xxx-Antennas...
Page 4 Installation Instruction for CMAX Antennas 4. Antenna Mounting 4.1. Antenna Mounting Spring Washer M4 nut Washer 4.2. Azimuth Angle 1. Loosen the fixing screw. (Do NOT unscrew it completely.) 2. Adjust your desired angle. The complete antenna pedestal can be swiveled to the left- / right-hand side by up to 25°.
Page 5 © Copyright 2019 CommScope, Inc. All rights reserved. All information contained in this manual has been revised thoroughly. Yet CommScope accepts no liability for any omissions or faults. CommScope reserves the right to change all hardware and software characteristics without notice.
