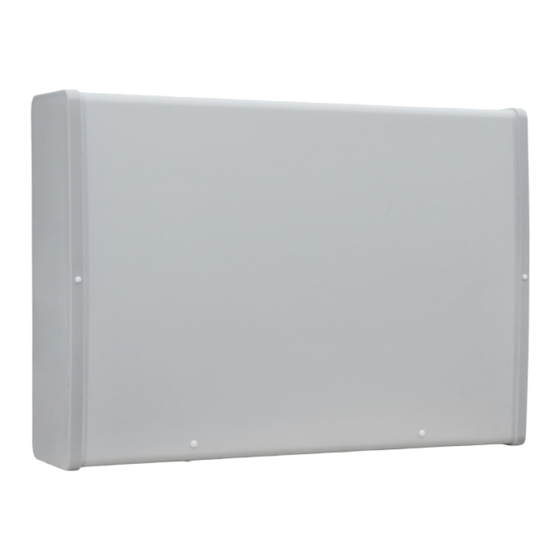

Installation Guide for CMAX-xxx Antennas
CMAX-DM22S-43-V53, CMAX-DM22S-D-V53, CMAX-DM30-43-V53,
CMAX-DM60-43-V53, CMAX-DMH3030-43V53,
CMAX-DM30-43-UWI53, CMAX-DM60-43-UWI53,
CMAX-3030-43-US, CMAX-30-43-US, CMAX-60-43-US,
Note:
Please read the complete description before starting the installation. Be sure that
connectors are properly sealed from water if no cables are connected to them
after installation.
Tools required:
Wrench, width: 13 mm

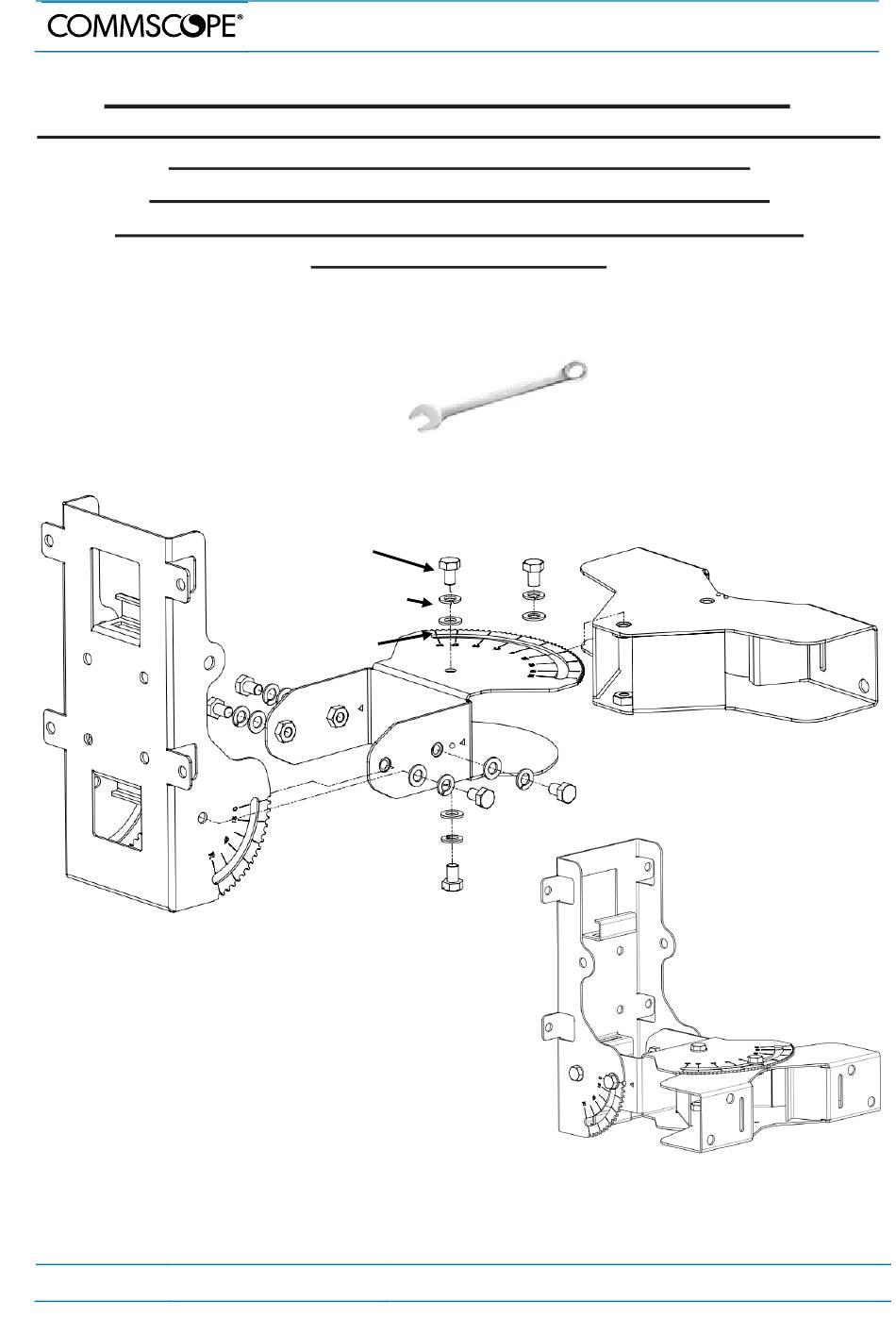

1. Assembly
Fit the 3 parts together and fasten with screws M8 x 16, washers, and spring washers
(M8 torque: 27 Nm).
Page 1
CMAX-DMW3030-43I53
Screw
Spring washer
Washer
Installation Instruction for CMAX Antennas
M0149APB_Installation_CMAX-xxx-Antennas
Advertisement
Table of Contents
Related Manuals for CommScope CMAX Series
Summary of Contents for CommScope CMAX Series
- Page 1 Installation Instruction for CMAX Antennas Installation Guide for CMAX-xxx Antennas CMAX-DM22S-43-V53, CMAX-DM22S-D-V53, CMAX-DM30-43-V53, CMAX-DM60-43-V53, CMAX-DMH3030-43V53, CMAX-DM30-43-UWI53, CMAX-DM60-43-UWI53, CMAX-3030-43-US, CMAX-30-43-US, CMAX-60-43-US, CMAX-DMW3030-43I53 Note: Please read the complete description before starting the installation. Be sure that connectors are properly sealed from water if no cables are connected to them after installation.
- Page 2 Installation Instruction for CMAX Antennas 2. Wall Mounting 1. Mark 4 holes onto the wall as shown in the drawing above. 2. Drill 4 holes into the wall and insert appropriate dowels into holes. 3. Attach the antenna pedestal. Page 2 M0149APB_Installation_CMAX-xxx-Antennas...
- Page 3 Installation Instruction for CMAX Antennas 3. Pole Mounting (200 mm max. pole diameter) 3.1. Pole Mounting with Lashing Straps (suggestion) Note: This pole mounting procedure is for reference only. Other than the shown pole mounting material can be used to mount bracket and antenna to a pole. Make sure the installation will safely support the combined load of the bracket, antenna, and connected cables.
- Page 4 Installation Instruction for CMAX Antennas 3.2. Optional Pole Mounting Kit Optionally, a pole-mounting kit can be ordered separately from the supplier (ID 7814722). The recommended pole diameter for this mounting kit is 60 - 150 mm. To mount an antenna to a pole using this kit, proceed as follows: 1.
- Page 5 Installation Instruction for CMAX Antennas 4. Antenna Mounting 4.1. DM60 Antenna Mounting Spring Washer Washer Attach antenna and fasten it with washers and M8 nuts (M8 torque: 27 Nm). M8 nut 4.2. DM22S/DM30 Antenna Mounting Depending on space available adjusting angle, DM22S/DM30 antenna can be mounted onto the pedestal in 3...
- Page 6 Installation Instruction for CMAX Antennas 4.4. CMAX-3030/30/60-43-US Antenna Mounting Attach antenna and fasten it with washers and M8 nuts (M8 torque: 27 Nm). 4.5. Azimuth Angle 1. Loosen the 3 fixing screws. (Do NOT unscrew them completely.) 2. Adjust your desired angle. complete antenna pedestal can be swiveled to...
- Page 7 Installation Instruction for CMAX Antennas 4.7. Antenna Cable Connected antenna cables can be arranged and fixed with cable ties as shown. 4.8. Outdoor Installation Note: For outdoor use, we recommend removing the plugs from the drain holes if the antenna is exposed to high humidity or rainfall. : Do not remove the plugs if the antenna is mounted other than bottom down, that means the drain holes showing to the ground.
- Page 8 © Copyright 2020 CommScope, Inc. All rights reserved. All information contained in this manual has been revised thoroughly. Yet CommScope accepts no liability for any omissions or faults. CommScope reserves the right to change all hardware and software characteristics without notice.
