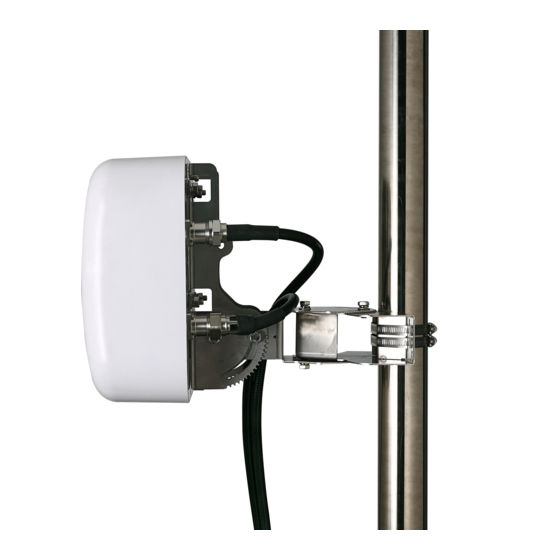

Installation Guide for CMAX-DM20/DM22S/DM30/
Note:
Please read the complete description before starting the installation. Be sure that
connectors are properly sealed from water if no cables are connected to them
after installation.
Tools required:
Wrench, width: 13 mm
1. Assembly

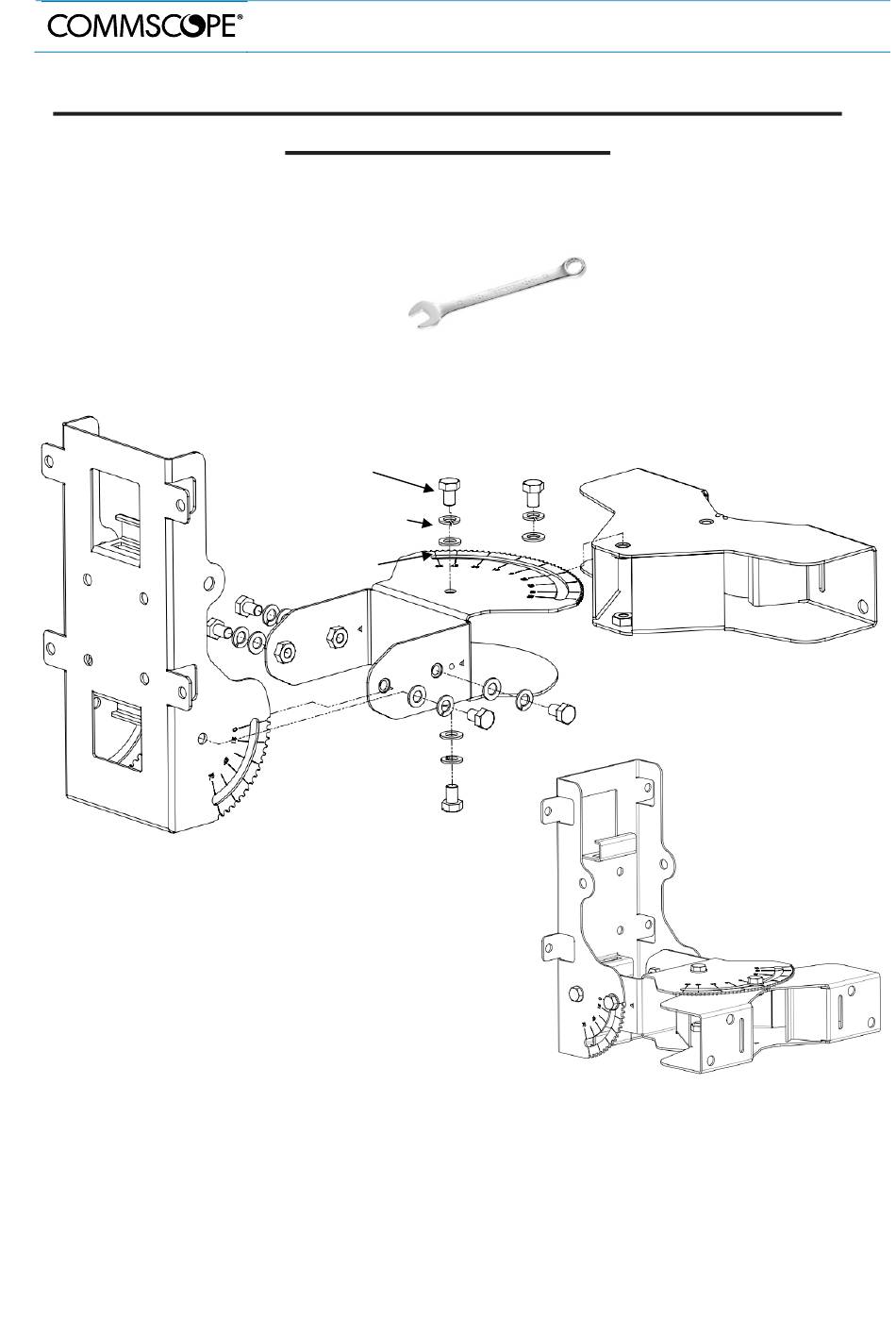

Fit the 3 parts together and fasten with screws M8 x 16, washers, and spring washers
(M8 torque: 27 N-m)
DM60-xxx Antennas
Screw
Spring washer
Washer
Installation Instruction for CMAX Antennas
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CommScope CMAX-DM60-Series
Summary of Contents for CommScope CMAX-DM60-Series
- Page 1 Installation Instruction for CMAX Antennas Installation Guide for CMAX-DM20/DM22S/DM30/ DM60-xxx Antennas Note: Please read the complete description before starting the installation. Be sure that connectors are properly sealed from water if no cables are connected to them after installation. Tools required: Wrench, width: 13 mm 1.
- Page 2 Installation Instruction for CMAX Antennas 2. Wall Mounting 1. Mark 4 holes onto the wall as shown in the drawing above. 2. Drill 4 holes into the wall and insert appropriate dowels into holes. 3. Attach the antenna pedestal. Page 2 M0149A7D_Installation_CMAX-DMxx-Antennas...
-
Page 3: Pole Mounting
Installation Instruction for CMAX Antennas 3. Pole Mounting 3.1. Pole Mounting with Lashing Straps (suggestion) Note: This pole mounting procedure is for reference only. Other than the shown pole mounting material can be used to mount bracket and antenna to a pole. Make sure the installation will safely support the combined load of the bracket, antenna, and connected cables. - Page 4 Installation Instruction for CMAX Antennas 4. Antenna Mounting 4.1. DM60 Antenna Mounting Spring Washer Washer Attach antenna and fasten it with washers and M8 nuts (M8 torque: 27 N-m) M8 nut 4.2. DM20/DM22S/DM30 Antenna Mounting Depending on space available adjusting angle, DM20/DM22S/DM30 antenna...
-
Page 5: Antenna Cable
Installation Instruction for CMAX Antennas 4.4. Elevation Angle Loosen the 4 fixing screws at the left- and right-hand side. (Do unscrew them completely.) 2. Adjust your desired angle. 3. Tighten fixing screws. 4.5. Antenna Cable Connected antenna cables can be arranged and fixed with cable ties as shown. - Page 6 © Copyright 2018 CommScope, Inc. All rights reserved. All information contained in this manual has been revised thoroughly. Yet CommScope accepts no liability for any omissions or faults. CommScope reserves the right to change all hardware and software characteristics without notice.
