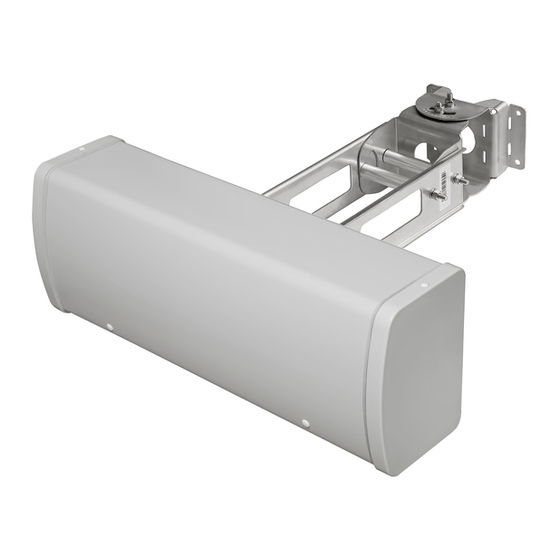

Installation Guide for CMAX Antennas
(CMAX-DMW3060-43i53, CMAX-DMW2060-43i53,
CMAX-DMH30-43M-i53, CMAX-DMW60X-43i53)
Note: Please read the complete description before starting the installation. Make sure that
connectors are properly sealed against water if no cables are connected to them after
installation.
Tools required: Wrenches, width 10 mm
(We recommend using socket wrenches.)

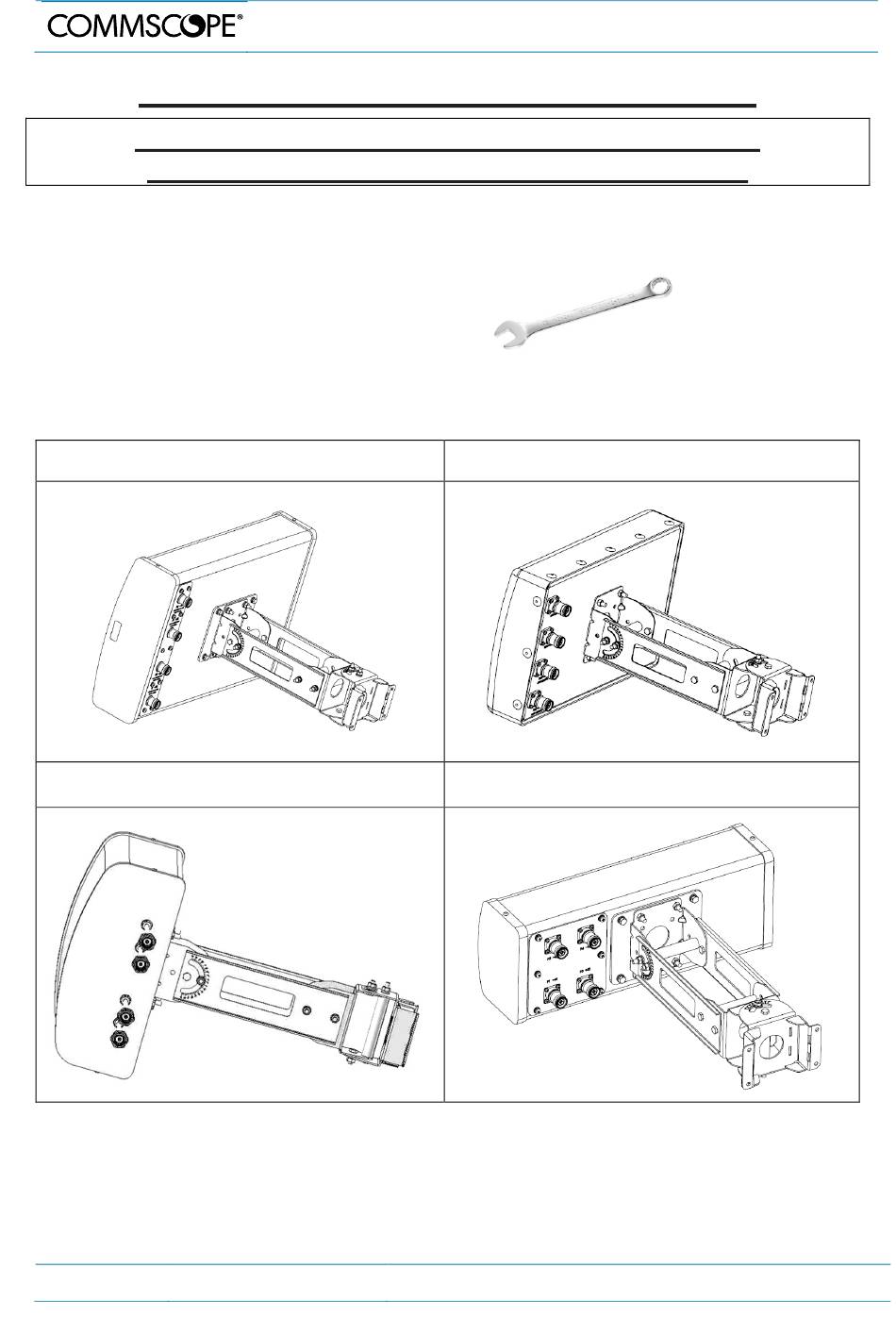

1. Assembly
CMAX-DMW3060-43i53
CMAX-DMH30-43M-i53
Page 1
Installation Instruction for CMAX Antennas
CMAX-DMW2060-43i53
CMAX-DMW60X-43i53
M0149AMC_Installation_CMAX-XXX-43X53_Antennas
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CommScope CMAX Series
Summary of Contents for CommScope CMAX Series
- Page 1 Installation Instruction for CMAX Antennas Installation Guide for CMAX Antennas (CMAX-DMW3060-43i53, CMAX-DMW2060-43i53, CMAX-DMH30-43M-i53, CMAX-DMW60X-43i53) Note: Please read the complete description before starting the installation. Make sure that connectors are properly sealed against water if no cables are connected to them after installation.
- Page 2 Installation Instruction for CMAX Antennas Nuts Spring washer Washer Screws Fit the nine parts together and fasten with screws M6, nuts M6, spring washers, and washers. (M6 torque: 12Nm) Page 2 M0149AMC_Installation_CMAX-XXX-43X53_Antennas...
- Page 3 Installation Instruction for CMAX Antennas 2. Wall Mounting 1. Use the pedestal piece to mark 4 holes onto the wall as shown in the drawing above or use a drill jig. 2. Drill 4 holes into the wall and insert appropriate anchor bolt into holes. 3.
- Page 4 Installation Instruction for CMAX Antennas 3. Pole Mounting (40~80 mm. pole diameter) Lashing Straps 1. Lay proper lashing straps around pole and lead them through mounting bracket (1). 2. Adjust bracket in antenna direction and fasten the bracket (2). 3. For poles with a smaller diameter use the closer holes (3). Page 4 M0149AMC_Installation_CMAX-XXX-43X53_Antennas...
- Page 5 Installation Instruction for CMAX Antennas 4. Antenna Mounting 4.1. Antenna Mounting Depending on the space required for the antenna, the distance from the wall can be decreased with the lengthening piece. Take out the lengthening piece, if the antenna is small enough.
- Page 6 Installation Instruction for CMAX Antennas 4.2. Azimuth Angle 1. Loosen the three fixing screws (Top and bottom). (Do NOT unscrew them completely.) 2. Adjust your desired angle. The complete antenna pedestal can be swiveled to the left- / right-hand side by up to 45°.
- Page 7 © Copyright 2019 CommScope, Inc. All rights reserved. All information contained in this manual has been revised thoroughly. Yet CommScope accepts no liability for any omissions or faults. CommScope reserves the right to change all hardware and software characteristics without notice.
