Installation Guide for Antennas
CMAX-DM20/DM30/DM60-CPUSEi

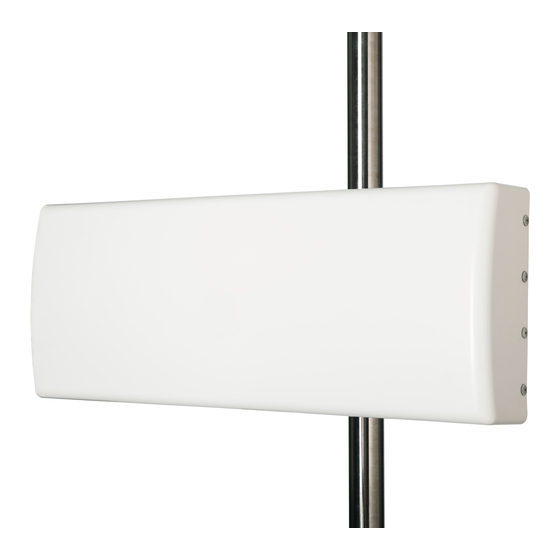

CMAX-DM20/DM30/ DM60-CPUSEi Antenna
Note: Please read the complete description before starting the installation! Be
sure that connectors are properly sealed from water if no cables are
connected to them after installation.
Tools required:
Wrench, width: 13 mm
1. ASSEMBLY

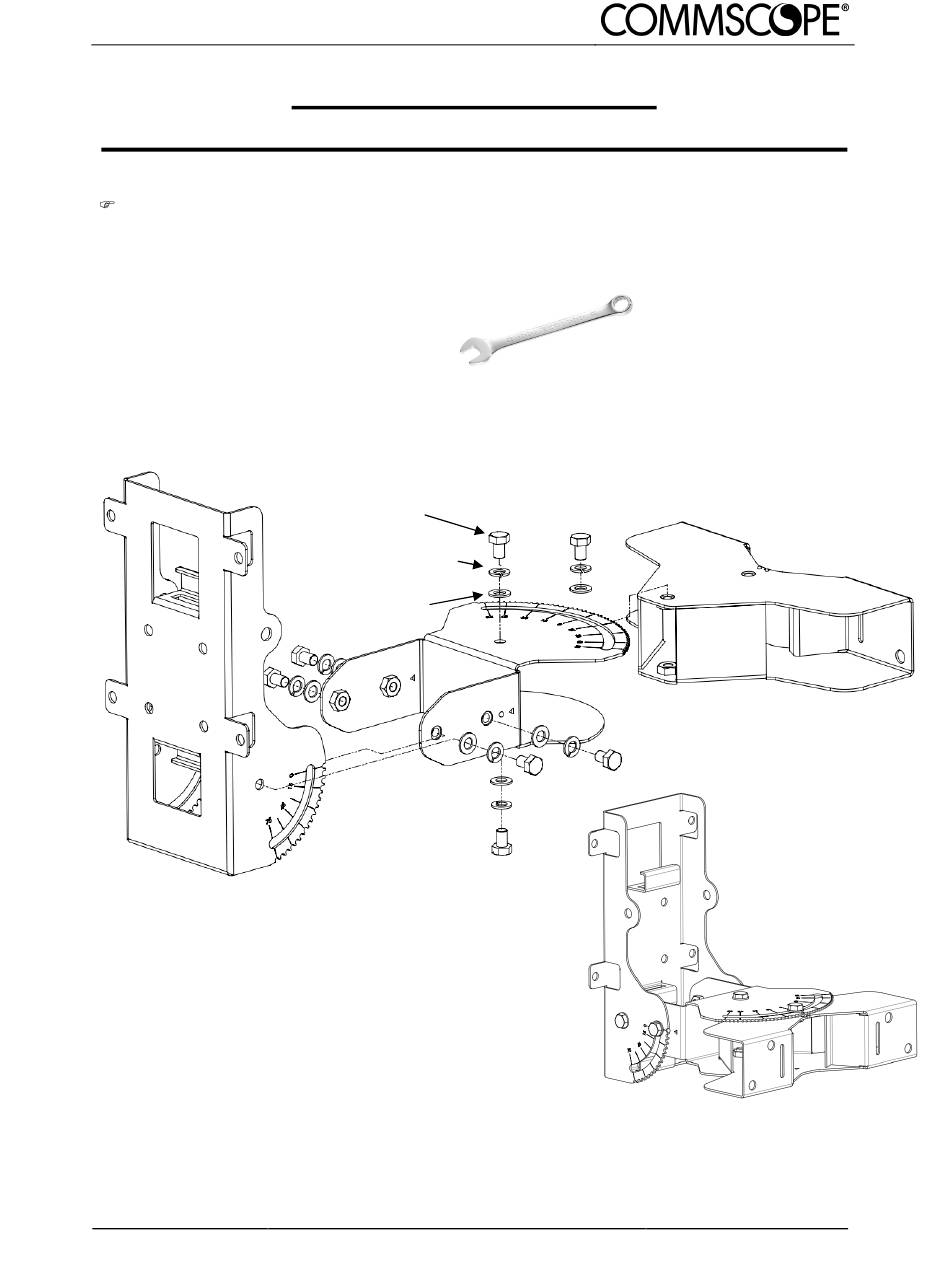

Fit 3 parts together and fix with screws M8 x 16, washers and spring washers
(M8 torque: 27 Nm)
Installation Guide for
Screw
Spring washer
Washer
Page 1
