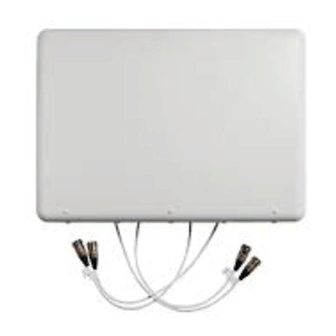

CMAX-DMF4-43-Wi53 Antenna
Note:
Please read the complete description before starting the installation. Make sure
that connectors are properly sealed against water if no cables are connected to
them after installation.
1. Assembly
Fit these seven parts above together and fasten them with screws M6, nuts M6, spring
washers, and washers.
Page 1
Installation Guide for
Installation Instruction for CMAX Antennas
M0153A6A_InstInstr_CMAX-DMF4-43-Wi53
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CommScope CMAX-DMF4-43-Wi53
Summary of Contents for CommScope CMAX-DMF4-43-Wi53
- Page 1 Installation Instruction for CMAX Antennas Installation Guide for CMAX-DMF4-43-Wi53 Antenna Note: Please read the complete description before starting the installation. Make sure that connectors are properly sealed against water if no cables are connected to them after installation. 1. Assembly Fit these seven parts above together and fasten them with screws M6, nuts M6, spring washers, and washers.
- Page 2 Installation Instruction for CMAX Antennas 2. Wall Mounting 1. Use this pedestal piece as a drill jig to mark 4 holes onto the wall as shown in the drawing above. 2. Drill 4 holes into the wall and insert 4 expansion bolts into the holes. Install the mounting kits to the expansion bolts and tighten the M6 nuts and flat washers.
- Page 3 Installation Instruction for CMAX Antennas 3. Pole Mounting (28~60 mm pole diameter) 4. Antenna Mounting 4.1. Antenna Mounting Spring Washer M6 nut Washer Page 3 M0153A6A_InstInstr_CMAX-DMF4-43-Wi53...
- Page 4 Installation Instruction for CMAX Antennas 4.2. Azimuth Angle 1. Loosen the f ixing screws. (Do NOT unscrew them completely.) 2. Adjust your desired angle. The complete antenna pedestal can be swiveled to the lef t- / right-hand side by up to 60°. 3.
- Page 5 © Copyright 2020 CommScope, Inc. All rights reserved. All information contained in this manual has been revised thoroughly. Yet CommScope accepts no liability for any omissions or faults. CommScope reserves the right to change all hardware and software characteristics without notice.
