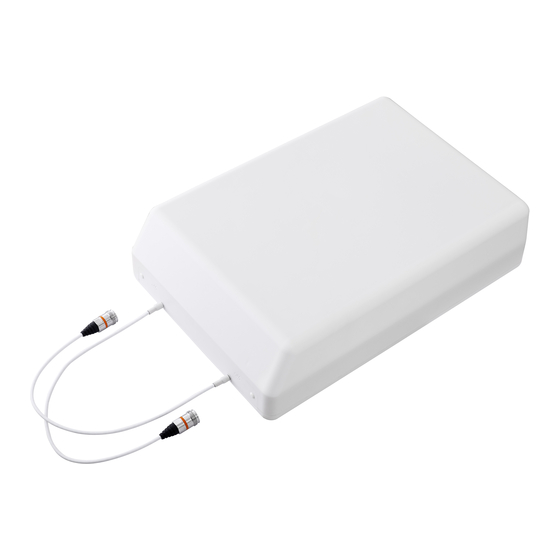

- Page 1 Installation Instruction for CMAX-DMF-43-UW-I53-01 Antenna CMAX-DMF-43-UW-I53-01 M0153AGB Document Number: Document Revision: __________________________ October 2024 Date:...
- Page 2 DISCLAIMER: This document has been developed by CommScope, and is intended for the use of its customers and customer support personnel. The information in this document is subject to change without notice. While every effort has been made to eliminate errors, CommScope disclaims liability for any difficulties arising from the interpretation of the information contained herein.
-
Page 3: Table Of Contents
6. CONTACTING COMMSCOPE 6.1. DAS AND SMALL CELL TECHNICAL SUPPORT 6.2. WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT RECYCLING 6.3. DAS AND SMALL CELL TECHNICAL TRAINING 6.4. ACCESSING COMMSCOPE USER DOCUMENTATION LIST OF CHANGES Version Changes Release Date M0153AGA - first release 20-September-2023... -
Page 4: General
Be sure that connectors are properly sealed if no cables are connected to them after the installation. o Tools required: Wrench, width: 8 mm & 10 mm 2. Antenna Mounting Proceed as follows to mount the CMAX-DMF-43-UW-I53-01: Attach antenna and fasten with washers and M5 screw (M5 torque: 5 Nm) Page 4... -
Page 5: Wall Mounting
3. Wall Mounting 3. Wall Mounting To mount the CMAX-DMF-43-UW-I53-01 antenna to a wall (pole mounting see next chapter), proceed as follows: 1. Mark 4 holes onto the wall as shown in the drawing above. 2. Drill four holes into the wall and insert appropriate expansion bolts into the holes. -
Page 6: Pole Mounting (60 Mm Max. Pole Diameter)
4. Pole Mounting (60 mm max. pole diameter) 4. Pole Mounting (60 mm max. pole diameter) Alternatively, a pole-mounting kit is also part of the delivery. The recommended pole diameter for this mounting kit is 35 - 60 mm. To mount an antenna to a pole using this kit, proceed as described in the following: 4.1. -
Page 7: Inserting Bolts
4. Pole Mounting (60 mm max. pole diameter) 4.2. Inserting Bolts four bolts M6x100 (2) placed in the middle of the slot Insert four M6x100 (2) bolts and four filled-corner washers (5) into the antenna mounting bracket, then tighten the four M6 nuts (3), four M6x100 (2) placed in the middle of the slot. -
Page 8: Mounting The Antenna
4. Pole Mounting (60 mm max. pole diameter) 4.3. Mounting the Antenna To mount the antenna to a pole, proceed as follows: 1. Insert the pole mounting bracket into these four bolts and place the washers & spring washers (4 & 5) and the M6 nuts (3) over each bolt. 2. -
Page 9: Angle Adjustment
5. Angle Adjustment 5. Angle Adjustment 5.1. Azimuth Angle 1. Loosen the three fixing screws at the top and bottom side. unscrew them completely.) 2. Adjust your desired angle. The complete antenna pedestal can be swivelled to the left-/right-hand side by up to 40º. 3. -
Page 10: Contacting Commscope
Calls to an EMEA Helpline outside of the 8:00 to 17:00 time frame will be forwarded to the 24x7 Helpline. To go to the CommScope Wireless Support Request web site from which you can initiate Online Support a Technical Support ticket, do one of the following: Scan the QR Code to the right. -
Page 11: Das And Small Cell Technical Training
Access button and select the DAS and Small Cell Customer Portal from the list • of applications. 2. Scan the QR Code to the right to go directly to the CommScope DAS and Small Cell Customer Portal, where you can access the DAS and Small Cell user documentation.
