Installation Guide for CMAX-DMH60-xxx Antennas
Note: Please read the complete description before starting the installation. Make sure that
connectors are properly sealed against water if no cables are connected to them
after installation.
Tools required: Wrenches, width 10 mm
(We recommend using socket wrenches.)

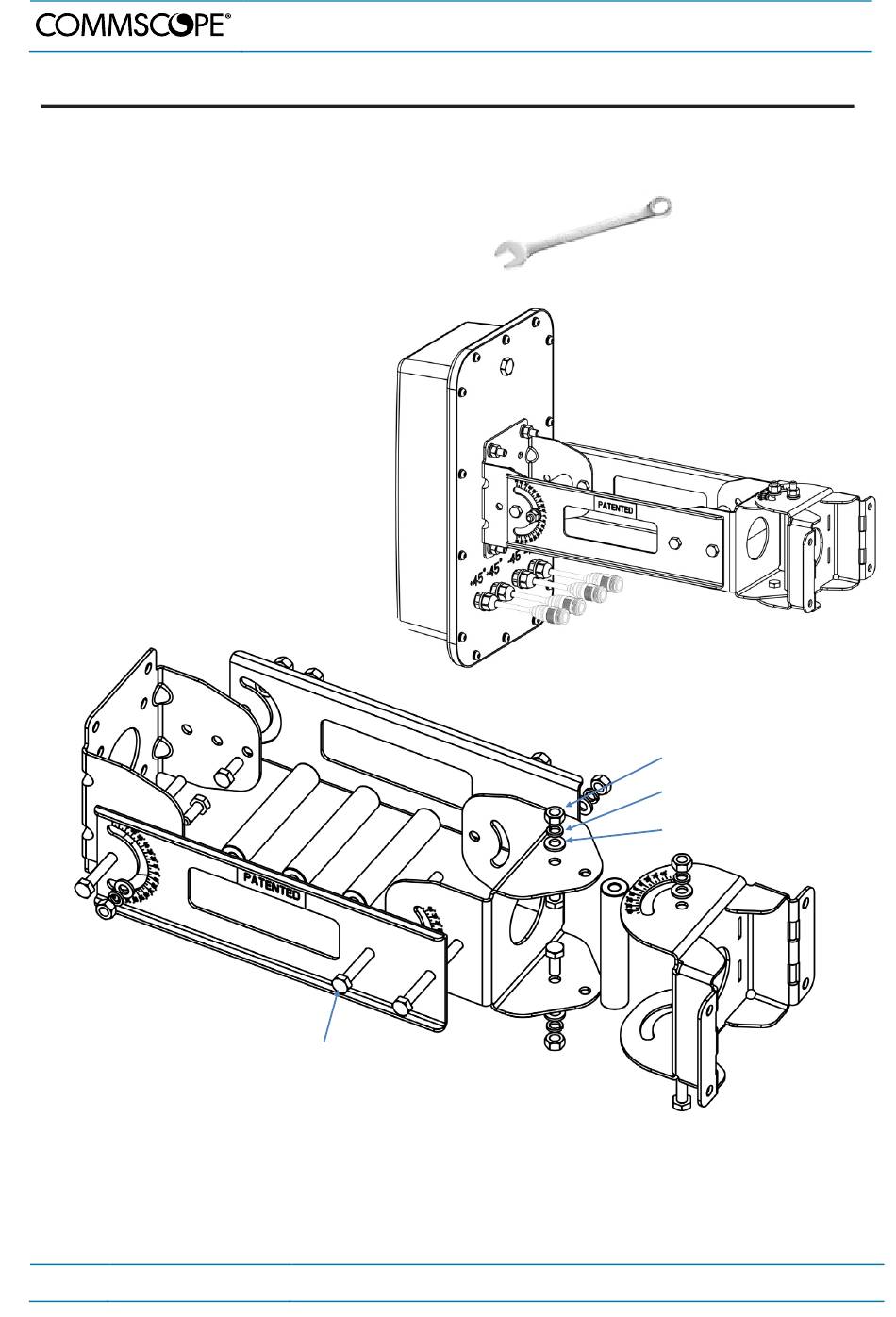

1. Assembly
Fit the nine parts together and fasten with screws M6, nuts M6, spring washers, and
washers (M6 torque: 12 Nm).
Page 1
Installation Instruction for CMAX Antennas
Screws
M0149A8B_Installation_CMAX-DMHx0-Antennas
Nut
Spring washer
Washer
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CommScope CMAX Series
Summary of Contents for CommScope CMAX Series
- Page 1 Installation Instruction for CMAX Antennas Installation Guide for CMAX-DMH60-xxx Antennas Note: Please read the complete description before starting the installation. Make sure that connectors are properly sealed against water if no cables are connected to them after installation. Tools required: Wrenches, width 10 mm (We recommend using socket wrenches.) 1.
- Page 2 1. Lay proper lashing straps around pole and lead them through mounting bracket (1). 2. Adjust bracket in antenna direction and fasten the bracket (2). 3. For poles with a smaller diameter use the closer holes (3). Technical Support: M0149A8B_Installation_CMAX- Page 2 http://www.commscope.com/wisupport DMHx0-Antennas...
- Page 3 Installation Instruction for CMAX Antennas 4. Antenna Mounting 4.1. Antenna Mounting Depending on the space required for the antenna, the distance from the wall can be decreased with the lengthening piece. Take out the lengthening piece, if the antenna is small enough.
- Page 4 (Do NOT unscrew them completely.) 2. Adjust your desired angle. complete antenna pedestal can be swiveled to the top / botton by up to 90°. 3. Fasten the f ixing screws. Technical Support: M0149A8B_Installation_CMAX- Page 4 http://www.commscope.com/wisupport DMHx0-Antennas...
- Page 5 Installation Instruction for CMAX Antennas 4.4. Optional Pole Mounting Kit Optionally, a pole-mounting kit can be ordered separately from the supplier (ID 7837870). The recommended pole diameter for this mounting kit is 40 - 80mm. To mount an antenna to a pole using this kit, proceed as follows: 1.
- Page 6 © Copyright 2020 CommScope, Inc. All rights reserved. All information contained in this manual has been revised thoroughly. Yet CommScope accepts no liability for any omissions or faults. CommScope reserves the right to change all hardware and software characteristics without notice.
